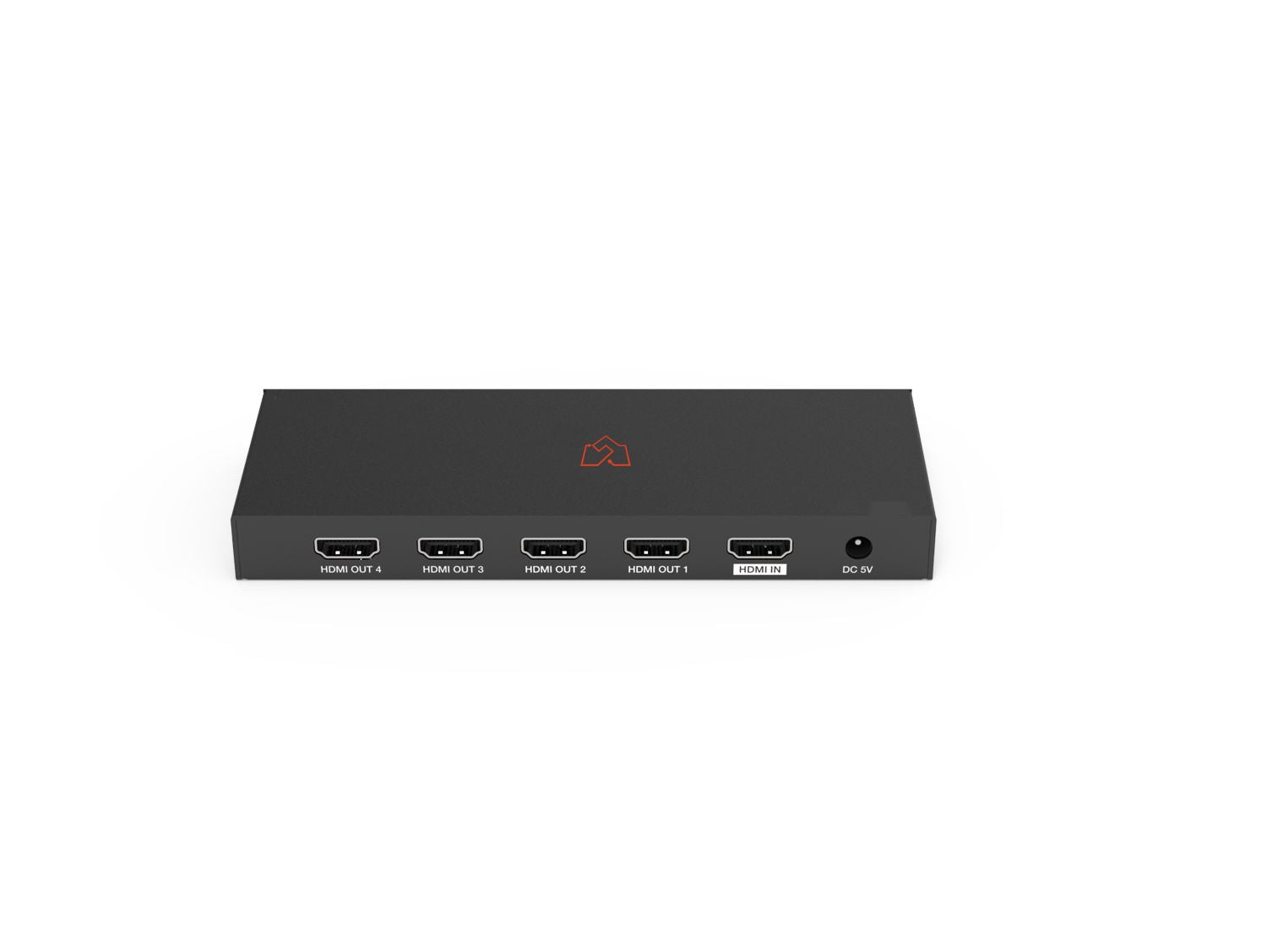

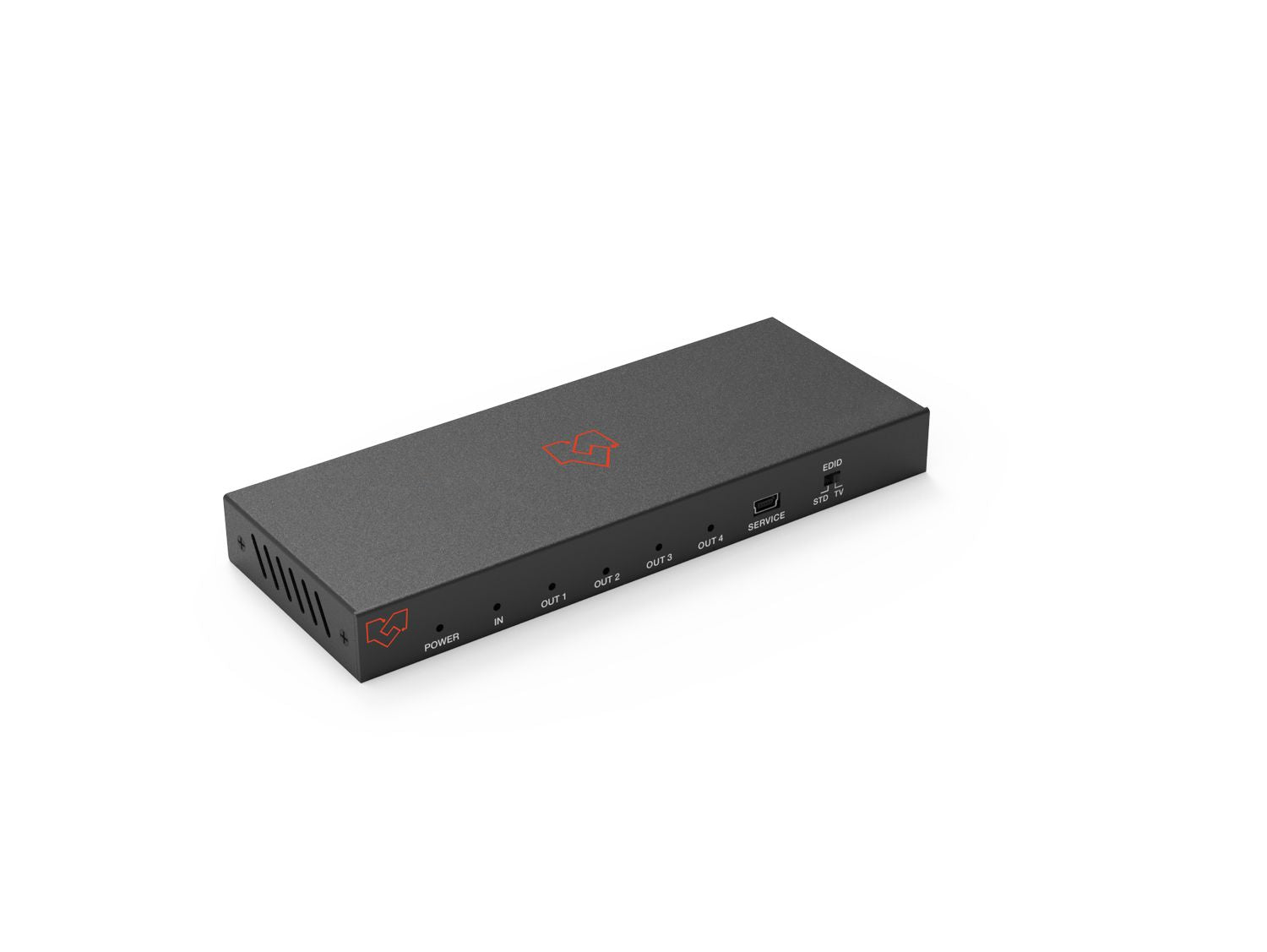

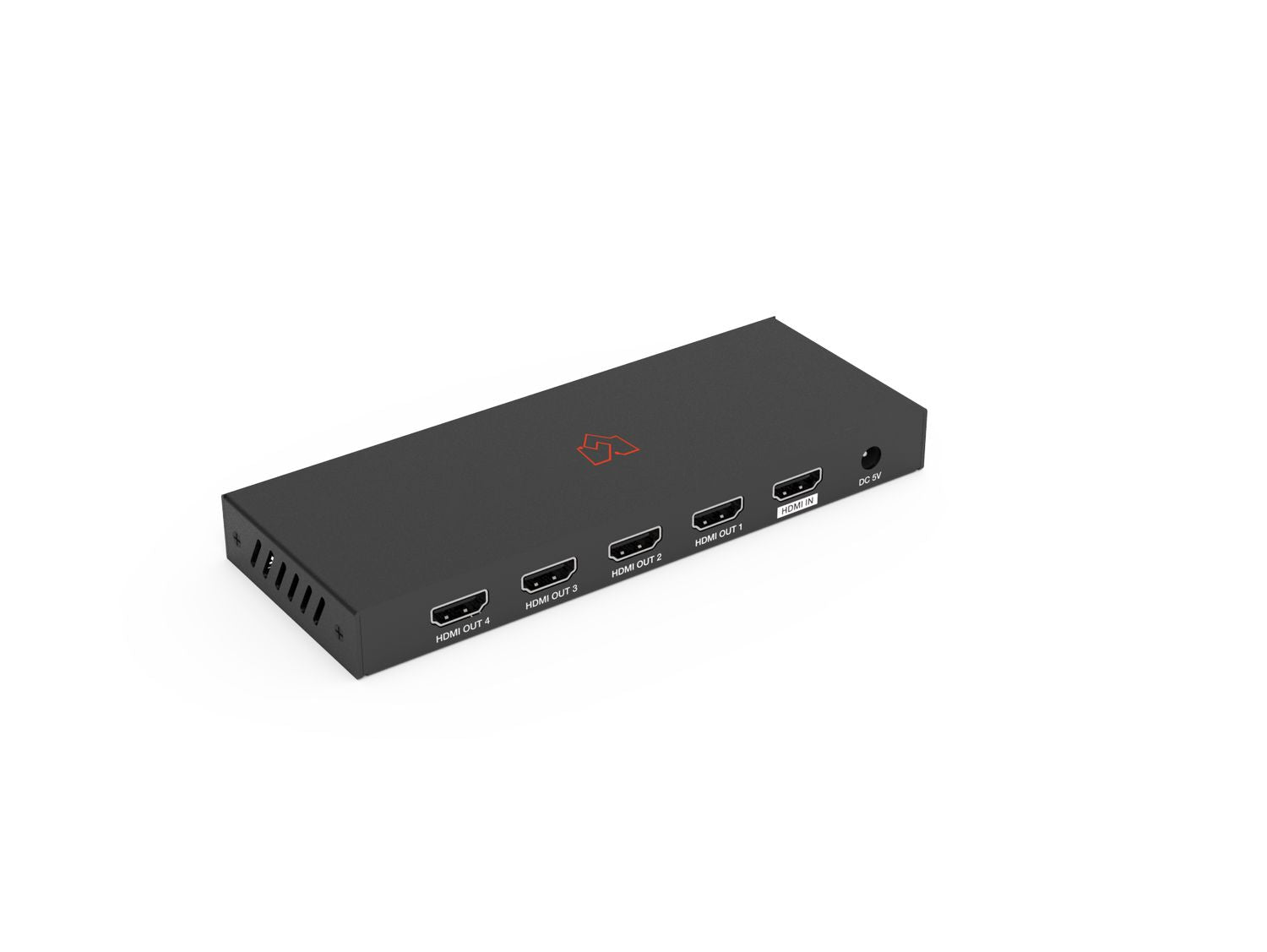

VigilLink 1x4 HDMI 2.0 Splitter Distribution Amplifier 18Gbps / VLSP-14H20
SKUSW-50002
Save 0%
Save 0%
Original price
$142.00
-
Original price
$142.00
Original price
$142.00
$142.00
$142.00
-
$142.00
Current price
$142.00
| /
Related Products: See Also:

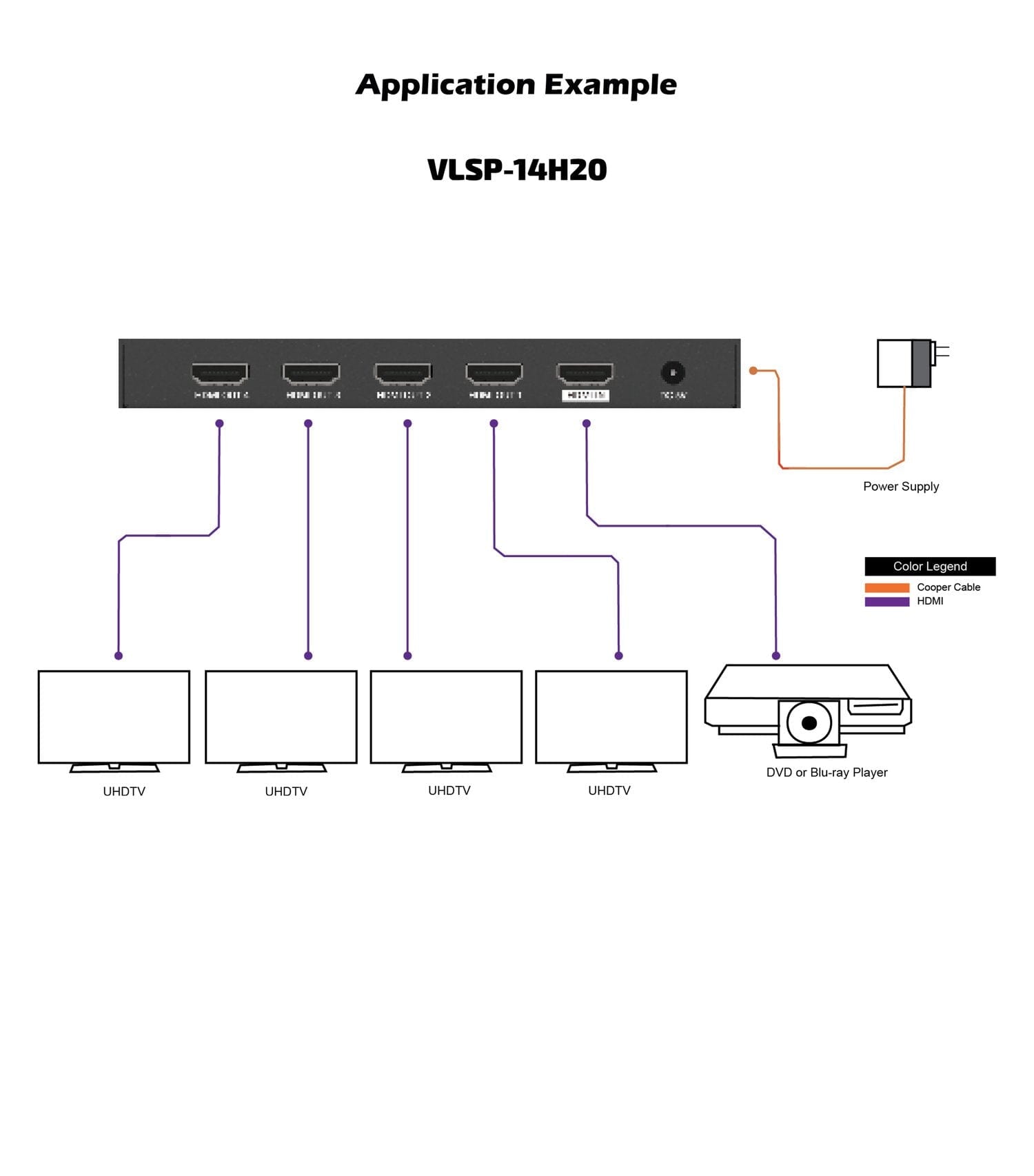

This 1x4 HDMI 18Gbps Splitter is an advanced solution for splitting a single HDMI signal into 4 HDMI displays. It provides high-performance audio and video output through HDMI cables up to 4K2K@60Hz 4:4:4 and can receive and transmit up to 18Gbps of bandwidth with no data loss. (Supporting the latest features, you can be assured of reliable and high-quality HDMI distribution.)
Featured Highlights
HDMI 2.0b, HDCP 2.2 compliant
Supports video format up to 4K2K@60Hz with 8-bit RGB/YCbCr 4:4:4/YCBCR 4:2:2
Support 3D frame sequential video format up to 1080p@60
Supports 3D frame sequential video format up to 4K2K@30Hz
Supports high-resolution VESA mode video format up to QSXGA@60Hz
Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
Supports smart EDID control
Compact design for an easy and flexible installation
Specifications
Technical
Video Bandwidth
600MHz/18Gbps
Input Ports
1×HDMI Type A[19-pin female]
Output Ports
4×HDMI Type A[19-pin female]
ESD Protection
Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge)
