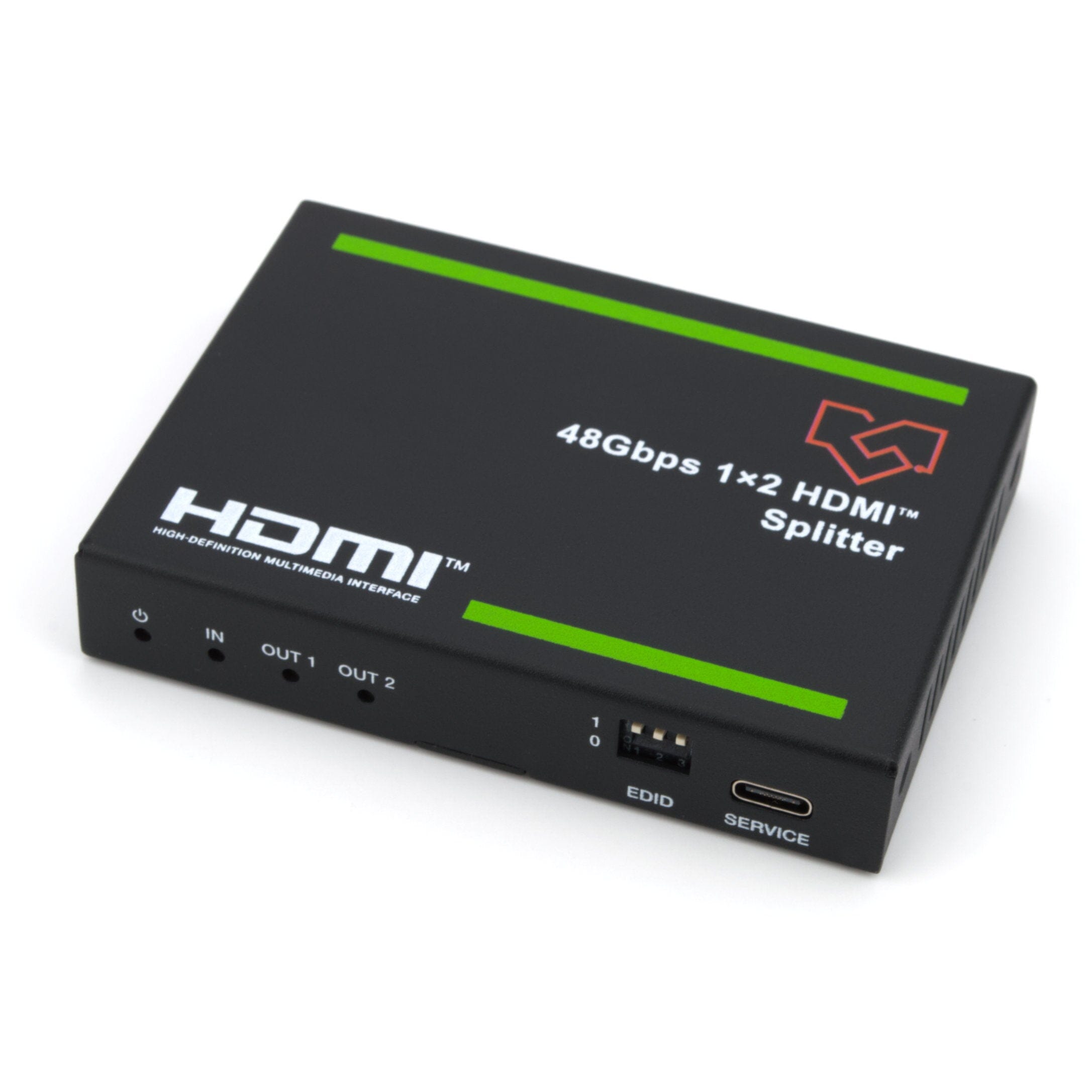

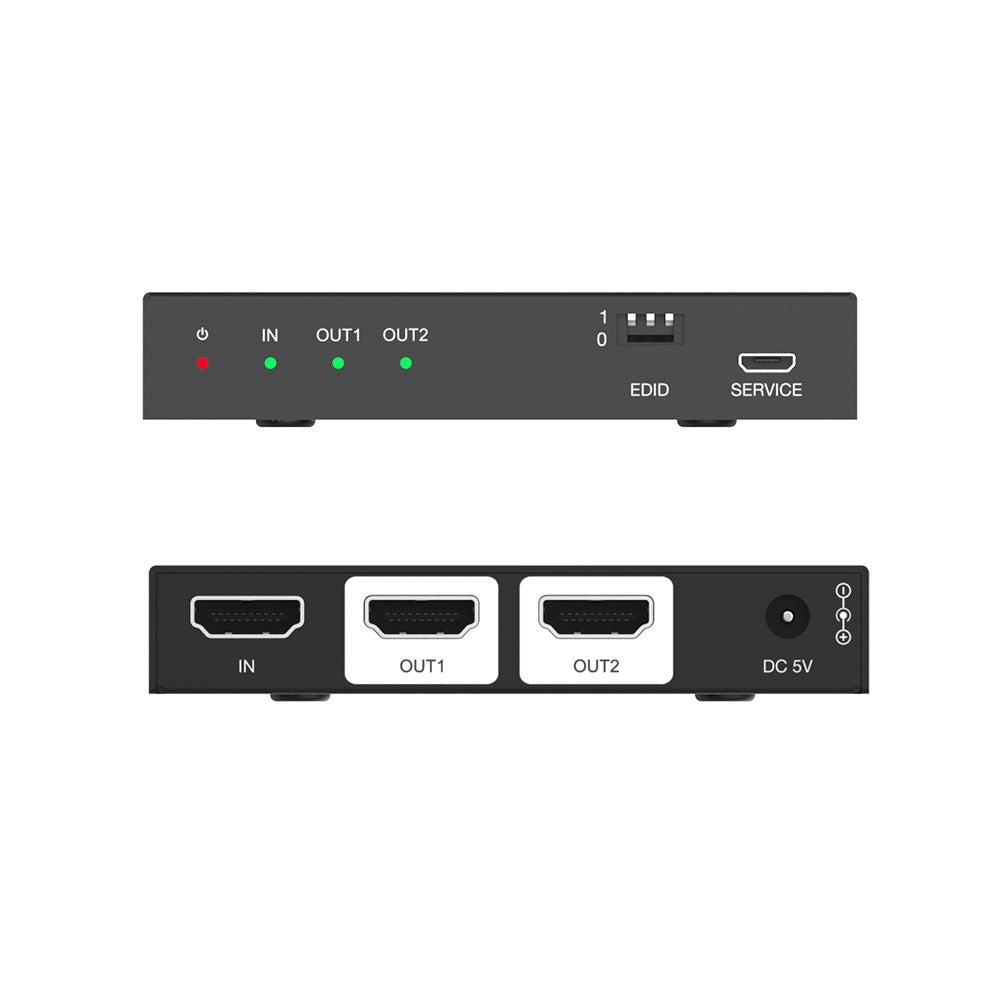

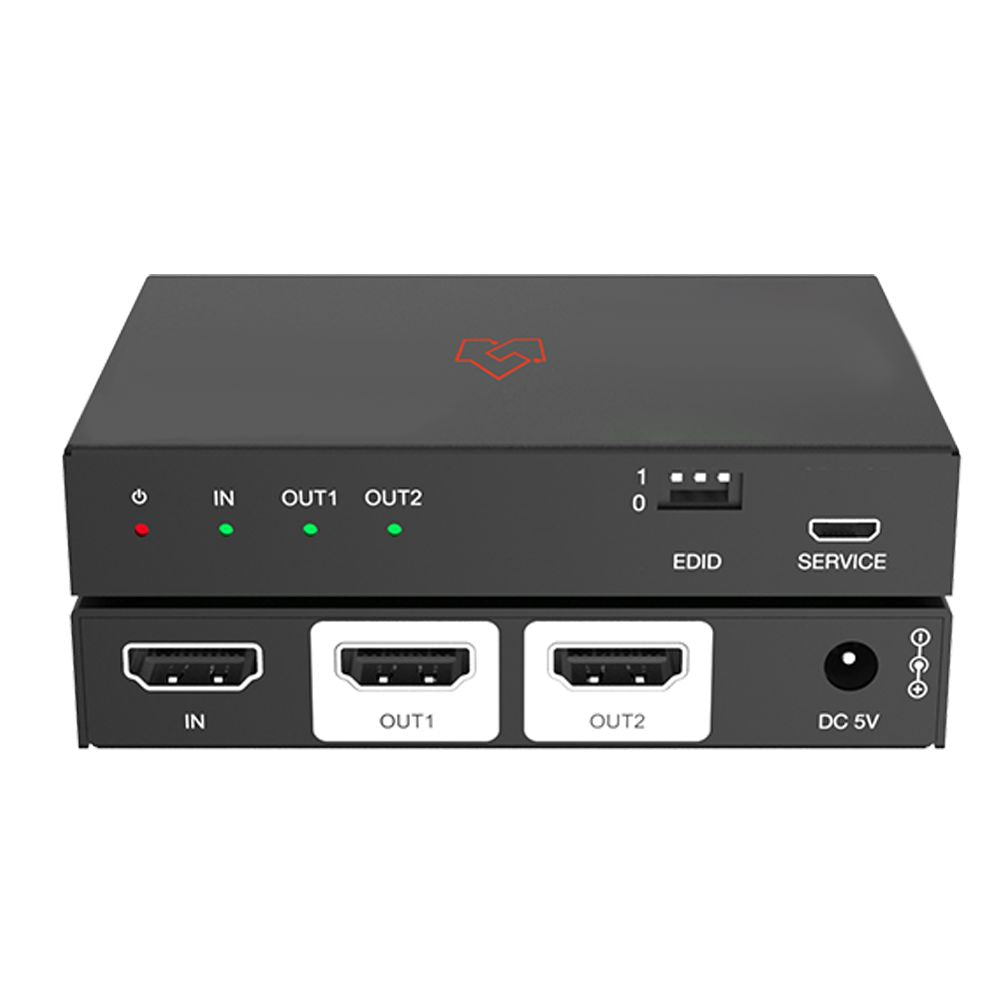

VigilLink 1x2 HDMI 2.1 Distribution Amplifier 48 Gbps / VLSP-12H21S

This 48Gbps 1x2 HDMI Splitter is an advanced solution for splitting single HDMI signal to 2 HDMI outputs synchronously, with video resolution up to 8K@60 4:2:0 12bit. It supports data rates up to 48Gbps to comply with HDMI 2.1 and HDCP 2.3 requirements. It includes several features for ease of integration, including EDID management, cable equalization. This multi-functional product can work well with xbox or PS5 to achieve 4K@120Hz on your TVs or relative monitors.

Featured Highlights

• HDMI 2.1 and HDCP 2.3 compliant

• Support 48Gbps FRL and 18Gbps TMDS video bandwidth

• Support video resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit

• HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM are supported

• Support HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through

• LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through

• 8K to 4K or 8K/4K to 1080P auto downscaling on all outputs

• HDR to SDR auto converting on all outputs

• Advanced EDID management

• Compact design for easy and flexible installation

Specifications
