VigilLink 1x4 HDMI 2.0 Distribution Amplifier /w Audio De-embedded & Downscale 18Gbps / VLSP-AS14H20

The 1x4 HDMI 2.0 Splitter simultaneously routes one HDMI source to four HDMI displays. Supporting resolutions up to 4K2K@60Hz (4:4:4) and HDCP 2.2. This product supports audio extraction from HDMI source to optical and analog output(s) by selecting COPY, AUTO modes EDID settings. Output(s) supports bypass and downscale(4K->1080P) functions.

Featured Highlights

• HDMI 2.0b, HDCP2.2/HDCP1.4 compliant.

• Supports HDMI resolution the maximum up to 4K2K@50/60Hz (4:4:4)

• Supports digital and analog audio extract output from HDMI source.

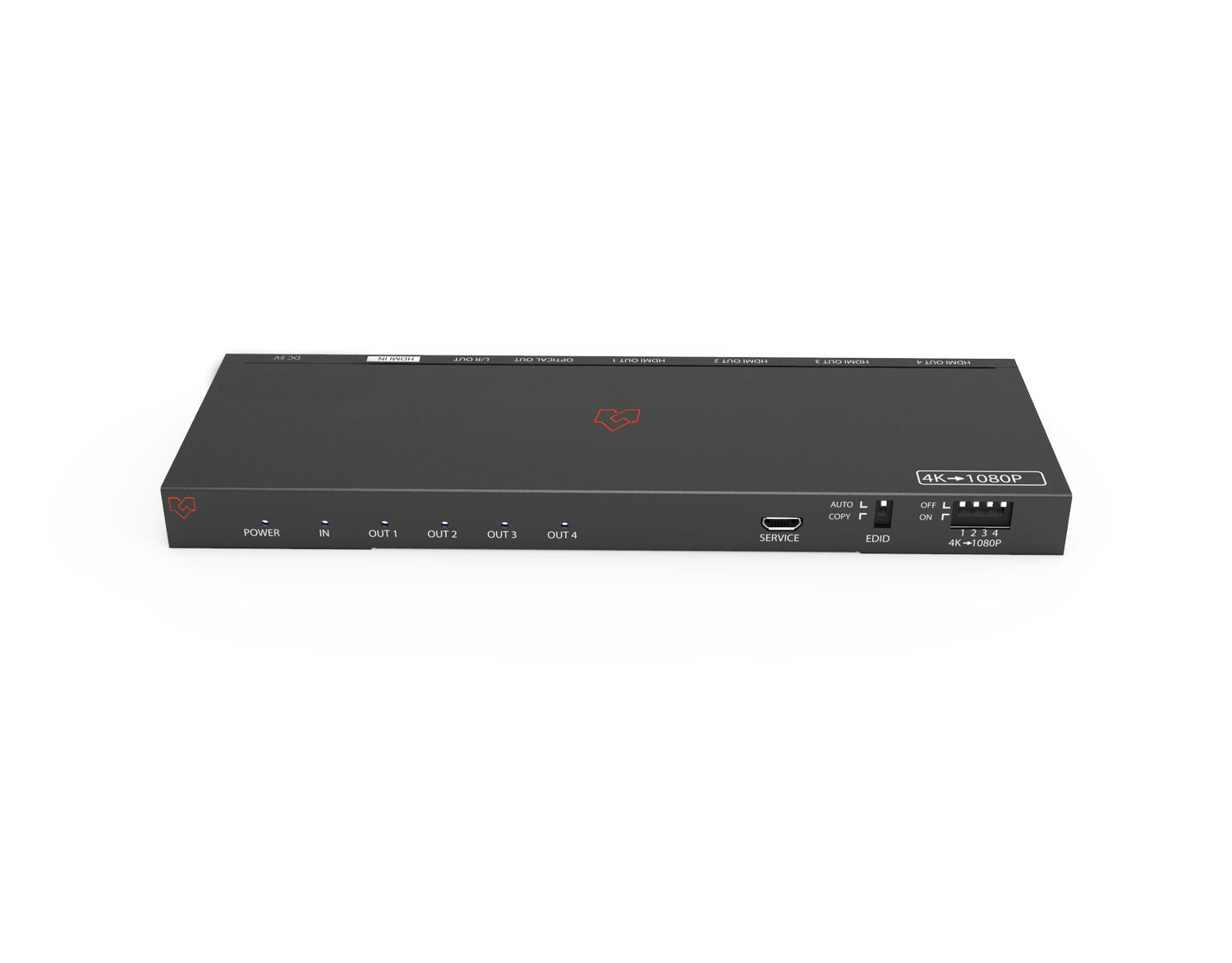

• Supports output bypass and 4K->1080P downscale function via dial switch on the panel.

• EDID can be selected COPY and AUTO modes via the dial switch on the panel.

• Supports analog audio PCM 2.0.

• Supports optical audio pass-through format about LPCM 2.0/2.1/5.1CH, Dolby 5.1, Dolby True HD,

Specifications
