VigilLink 2x1 Wall Plate 1-Gang w/Auto-Switching, HDBaseT 2.0 4k@60Hz 4:4:4 USB-C/HDMI 2.0 , RS-232 with RX White 40m 18Gbps, VLWP-UHS-TR

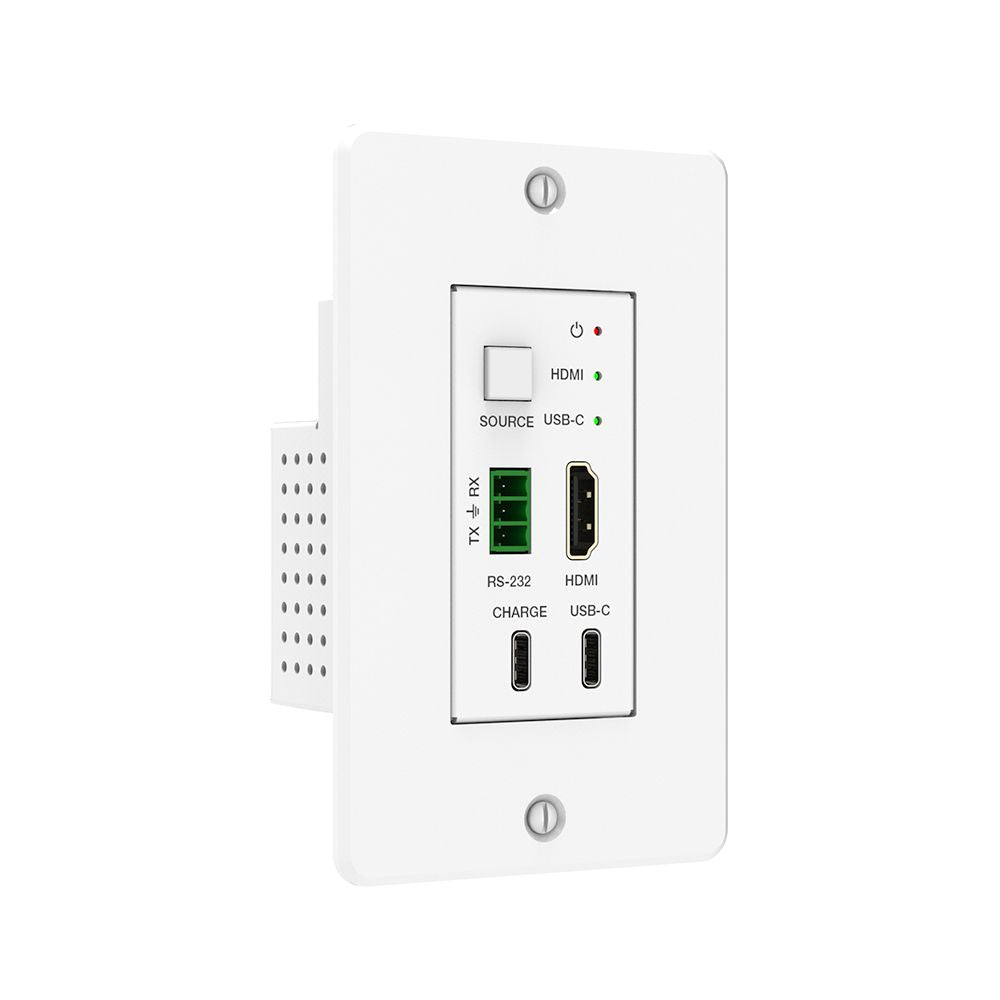

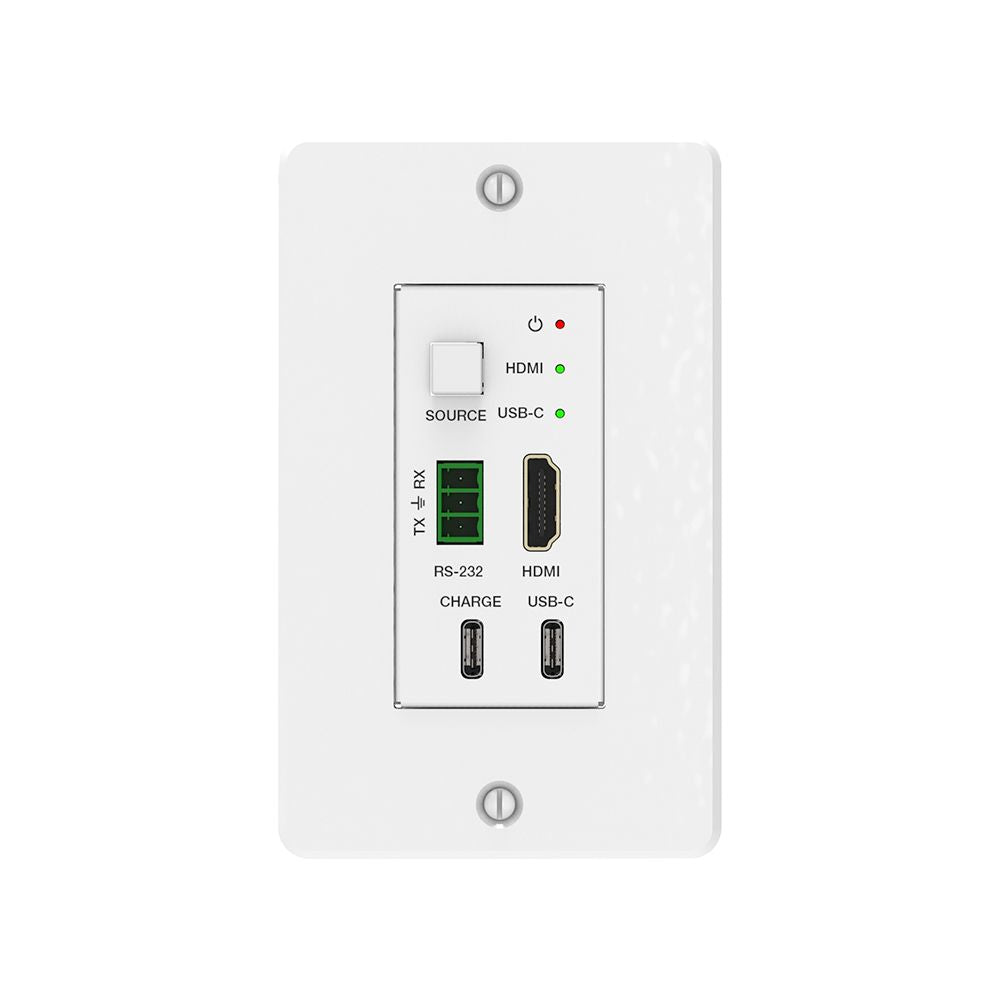

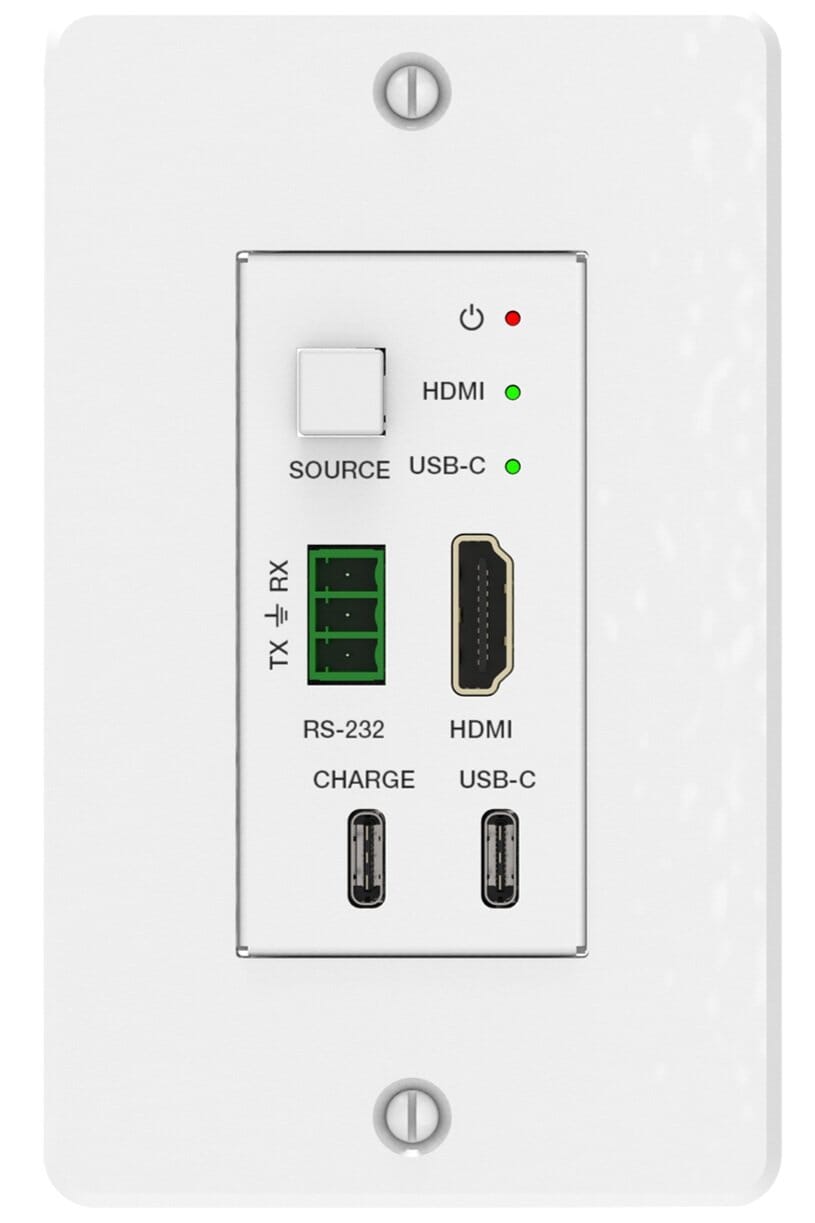

The wall plate is a 2x1 switcher and HDBaseT transmitter with HDMI and USB-C inputs. It features a US one-gang enclosure for Decora-style wallplate openings with interchangeable black and white wall plates and faceplates. Support video resolution up to 4K2K@50/60Hz 4:4:4. It supports bidirectional RS-232 pass-through, and the RS-232 control signal can be transmitted up to 131ft / 40m. The product is remotely powered by the receiver or other HDBaseT-equipped devices via POE.

Featured Highlights

• Compliant with HDMI 2.0b, HDCP 2.2, and Display Port 1.2a

• HDMI input supports 18Gbps video bandwidth; USB-C input supports 5.4Gbps video bandwidth

• Video resolution up to 4K2K@50/60Hz 4:4:4

• HDBaseT output can extend video transmission distance up to 230ft / 70m for 1080P@60 or 131ft / 40m for 4K@60 via a single CAT6/6a/7 cable

• Supports 3D, HDR10 and Dolby Vision

• HDMI audio formats support LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

• Supports HDMI and USB-C input

• With USB-C charging port

• US one-gang enclosure for Decora-style wall plate openings

• Input signal selection supports automatic mode and manual mode

• Supports POE function (only from Receiver to Transmitter)

• Available in white or black coating

Specifications
