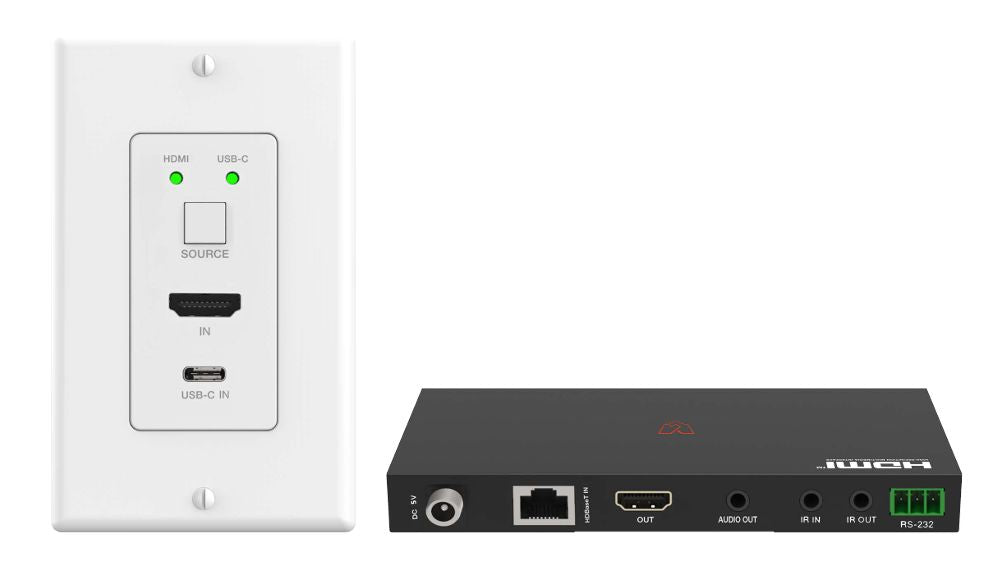

VigilLink 2x1 HDBaseT 2.0 4k@60Hz 4:4:4 USB-C/HDMI 2.01-Gang Wall Plate w/Auto- switching, POC with RX White 150m 18Gbps VLWP-UHCI150-TR

The VLWP-UHCI150-TR extends HDMI/USB-C signals up to 150m/492ft for 1080P@60Hz, or 120m/394ft for 4K2K@60Hz (4:4:4) via a single CAT6/6A cable. This single gang wall-plate transmitter features one HDMI input and one USB-C input port, supporting manual and automatic switching modes. The receiver features one HDMI output and one 3.5mm de-embedding audio output. It supports bi-directional PoC and bi-directional IR, RS-232 signal transmission. This multi-functional extender can be used in applications such as Enterprise Video Conferencing , Education , Command and Control and more.

Featured Highlights

• HDMI 2.0 , HDCP 2.2 compliant

• Single gang US size wall plate supports two inputs: 1× HDMI and 1× USB-C

• Resolution up to 4K2K@60Hz 4:4:4, 18Gbps

• Supports both auto switching and manual switching

• The maximum transmission distance via CAT6/6A cable is up to:

  120m/394ft for 4K2K@60Hz 4:4:4 signal

  150m/492ft for 1080P@60Hz 4:4:4 signal

• Supported audio formats: LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio

• Support for HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through

• Bi-directional IR, RS-232 and CEC control signal transmission

• Support bi-directional PoC
