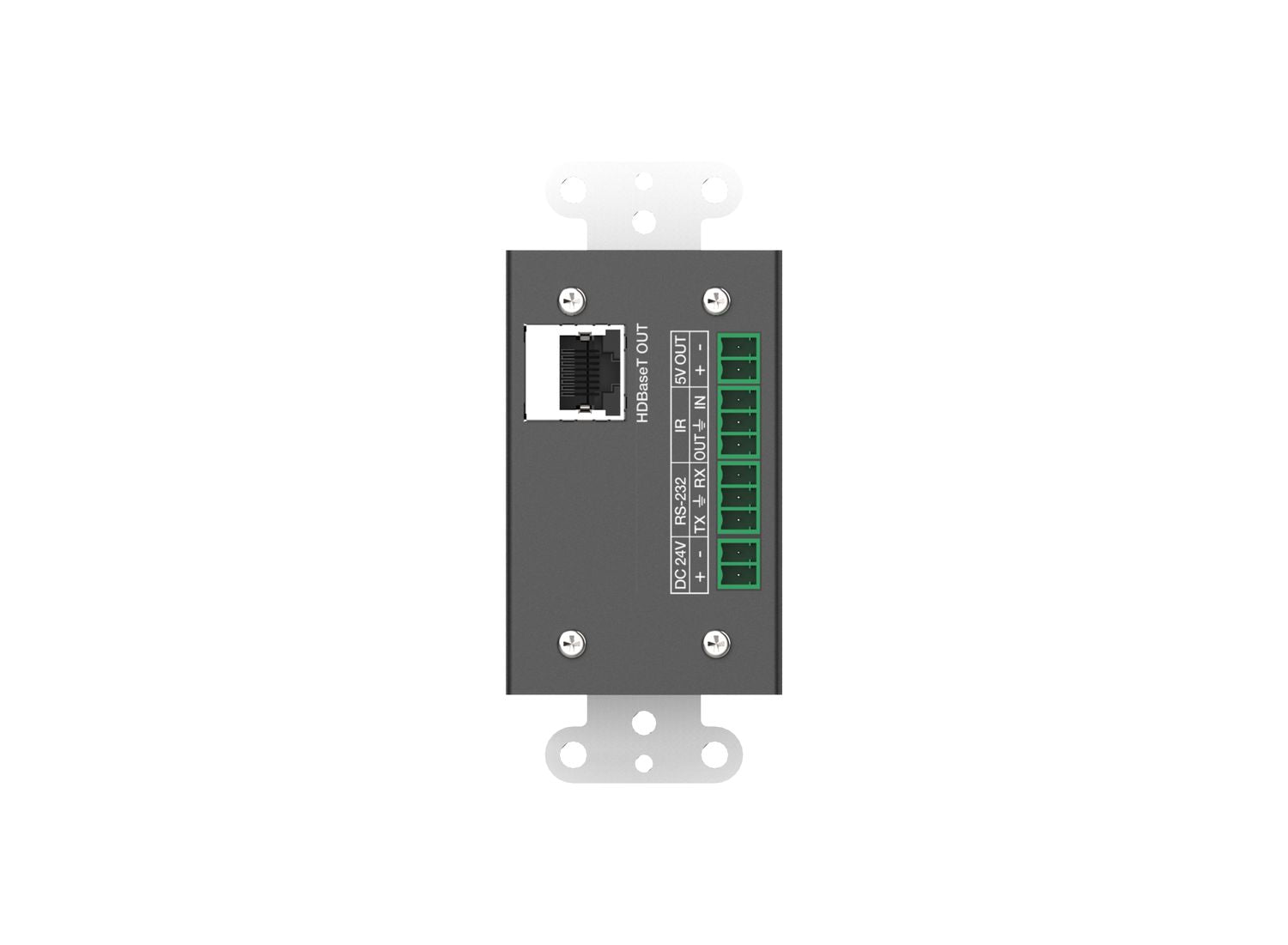

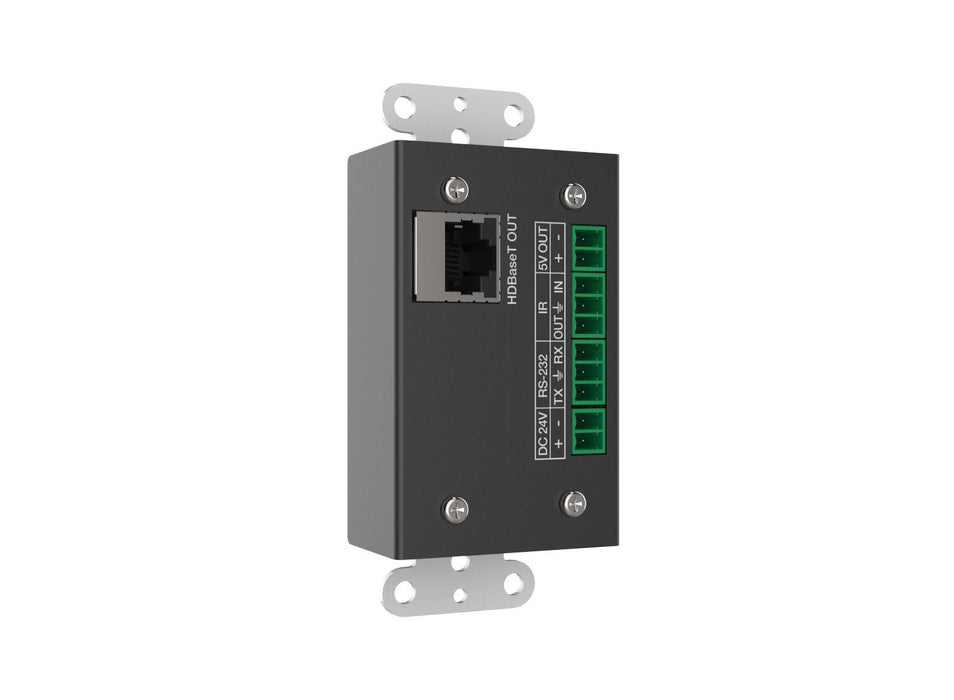

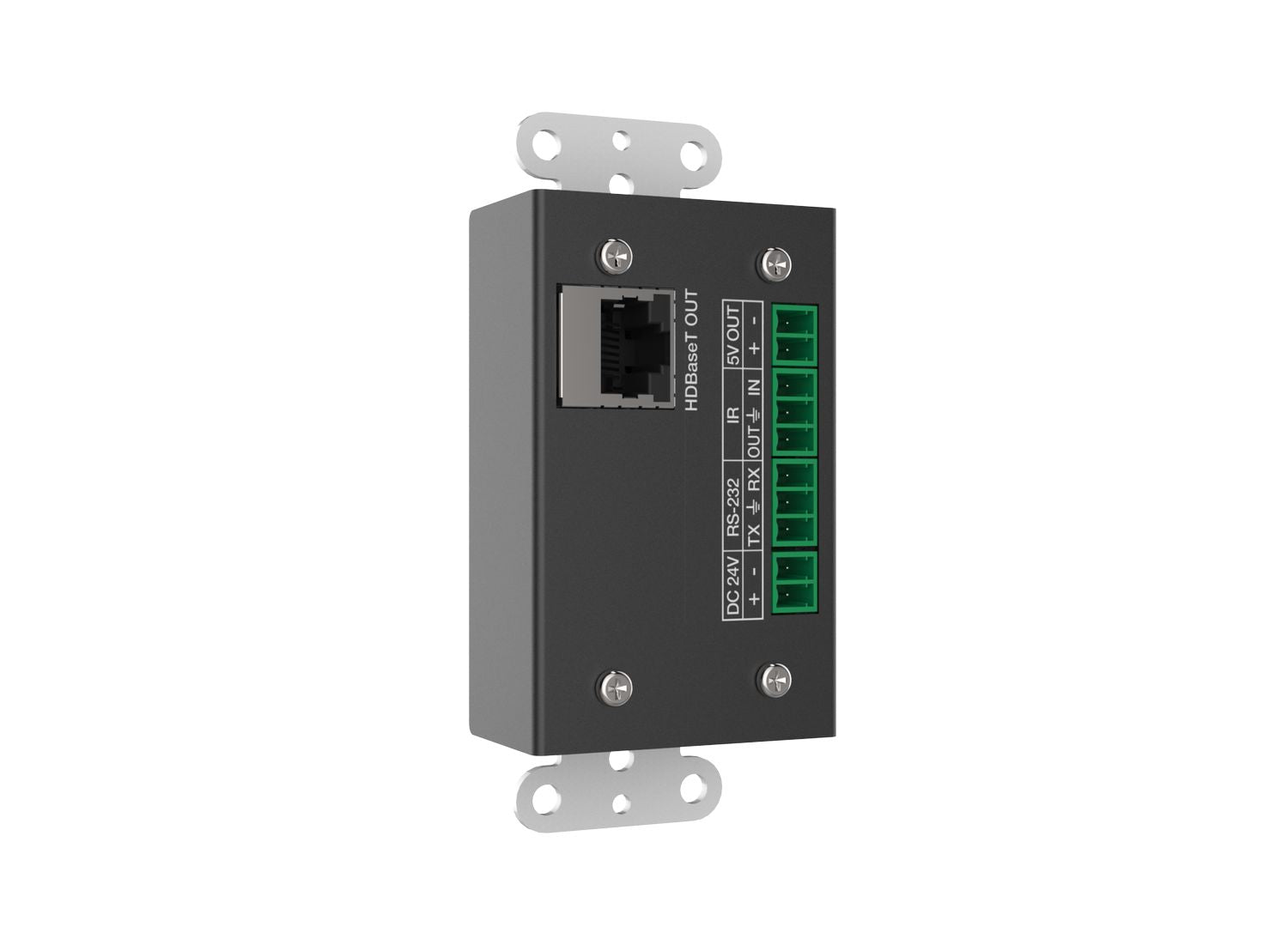

VigilLink Wall Plate 1-Gang w/POC HDBaseT 2.0 4k@60Hz 4:4:4 HDMI 2.0, White 40m 18Gbps, VLWP-HD70-TR

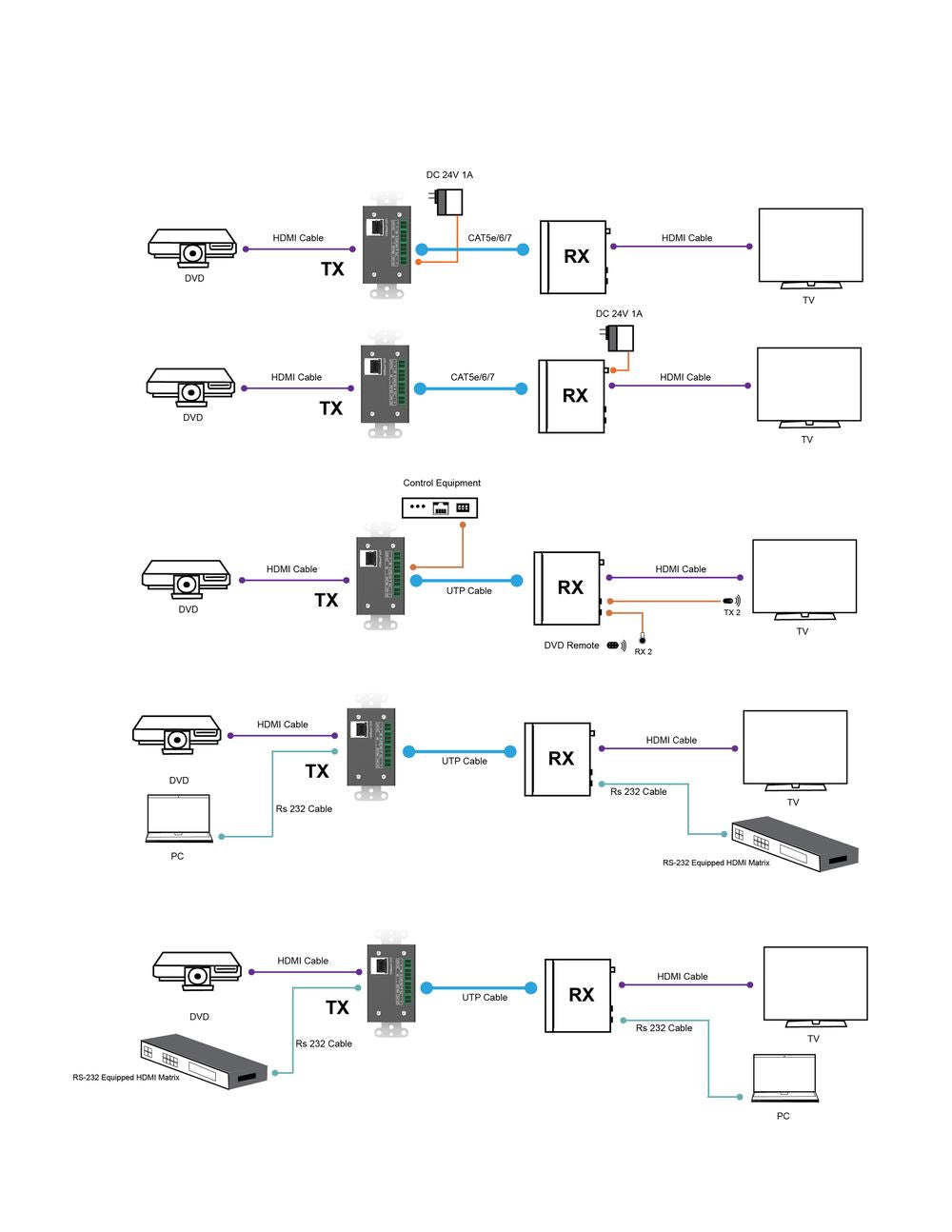

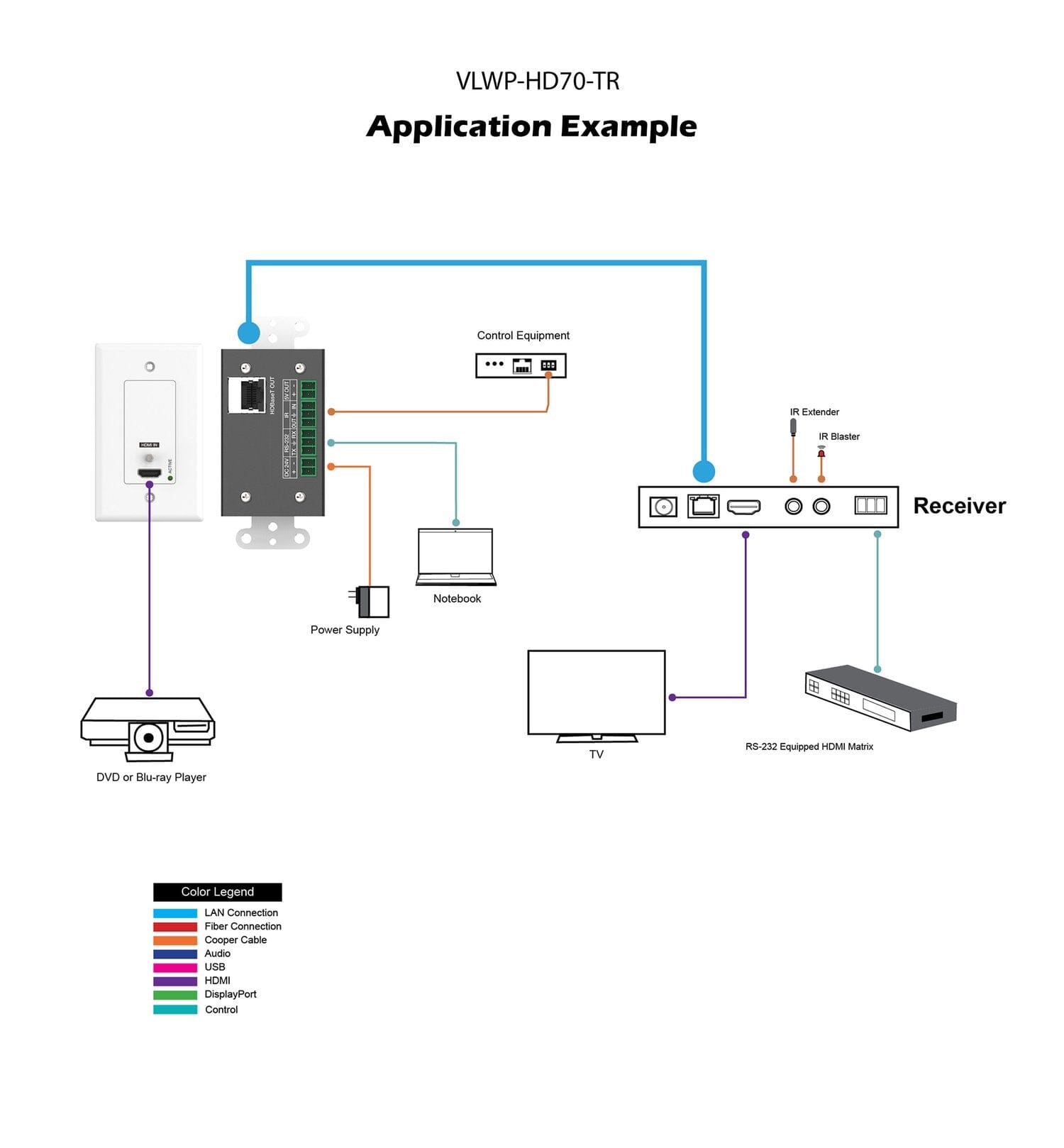

The HDBaseT Wall-plate Transmitter can transmit up to 4K2K@60 (4:4:4) video over a single CAT6/6a/7 cable up to 130ft/40m or 1080p up to 230ft/70m. It supports Power over Cable (PoC) functionality that allows for greater flexibility in installations. It also supports two-way IR and RS-232

Featured Highlights

• HDMI 2.0b 18Gbps, HDCP 2.2 compliant

• up to 4K2K@60Hz(4:4:4), 4K2K@30Hz, 1080p@120Hz

• up to 7.1 channels HD audio

• HDBaseT™ over a single CAT 6/6a/7 cable up to 230ft/70m distance

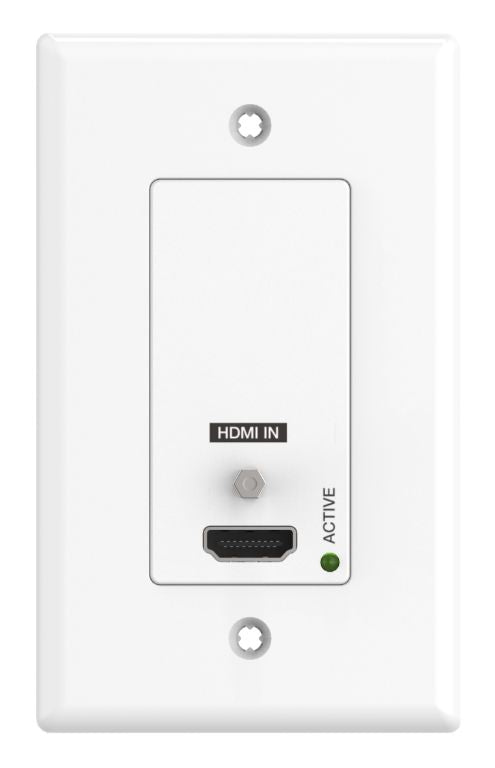

• One HDMI input, 1 Gang US Decora Wall Plate

• Two-way IR and RS-232

• POC (Power Over Cable) function is supported, either TX or RX is powered by 24V1A power supply, the another does not need power supply from the DC jack. POC Power consumption is less than 10W.

• Transfers Bidirectional Infrared control signal together with the HDMI signal.

• Transfers Bidirectional RS-232 control signal together with the HDMI signal.

Specifications
