Introducing the VigilLink Dante 4x4 Wall Plate—an innovative solution that seamlessly integrates Bluetooth and analog audio with a digital Dante® networked audio system. This standard US Decora 2 Gang-sized wall plate offers versatile multi-input/output capabilities, featuring 2 channels of Bluetooth and 2 channels of unbalanced audio inputs, totaling 4 channels converted to Dante® digital audio. On the output side, it converts 4 channels of Dante® audio to 4 channels of unbalanced audio outputs. The flexibility extends further, allowing it to function as 4 channels of unbalanced audio inputs converted to Dante® digital audio, 4 channels of Dante® audio converted to 2 channels of Bluetooth outputs, and 2 channels of unbalanced audio outputs.
Control is at your fingertips with front panel buttons, API commands via TCP/IP, and a built-in web server/GUI for Bluetooth configuration and input/output control. The product’s software configuration enables customization of Bluetooth names for multiuser deployments. Power options include PoE (Power over Ethernet) or a local 12V DC power supply supporting AES67 RTP audio transport. The VigilLink Dante 4x4 Wall Plate is the ultimate BYOD interface, enabling any Bluetooth device to stream audio to a Dante® audio system wirelessly.
Featured Highlights
-
Dual Working Modes:
Mode 1: Transforms 2-channel Bluetooth and 2-channel un-balanced audio inputs to Dante® audio while providing 4-channel un-balanced audio outputs.
Mode 2: Converts 4-channel un-balanced audio inputs to Dante® audio, with 2-channel Bluetooth and 2-channel un-balanced audio outputs for added flexibility.
-
Configurable Bluetooth Naming: Easily discover the device thanks to customizable Bluetooth naming, ensuring effortless integration into your network.
-
Precise Control: Adjust input sensitivity from +10dBu to -10dBV via intuitive control software and fine-tune output gain within the range of +10dBu to -10dBV using the same software.
-
Audio Excellence: Supports Dante® at 44.1, 48, and 96kHz sample rates with options for 16, 24, or 32-bit audio depth. Configure Dante® device latency (choose between 1, 2, or 5ms) seamlessly using Dante® Controller. Enables AES67 RTP audio transport for versatile audio distribution.
Specifications
| Specifications | |
|---|---|

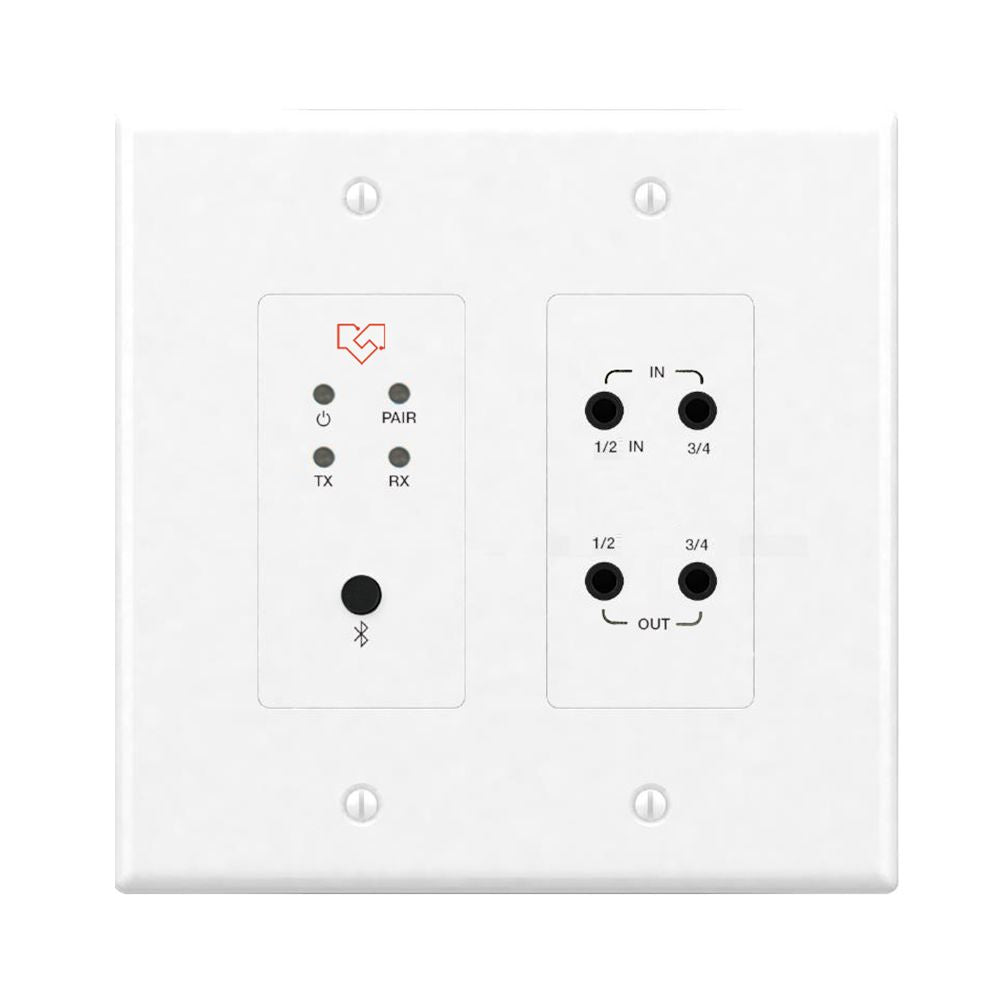

| Front Panel | 1x POWER LED [Blue with shielding case] 1x PAIR LED [Blue with shielding case] [Bluetooth pairing/connection LED] 1x TX LED [Blue with shielding case] [Bluetooth TX mode LED] 1x RX LED [Blue with shielding case] [Bluetooth RX mode LED] 1x PAIR [Button] [Press to activate Bluetooth Pairing mode] [Press and hold for 3 seconds to disconnect Bluetooth devices.] [Press and hold for 10 seconds to switch Bluetooth TX/RX mode.] 1x Bluetooth in/out [Digital Audio, Internal Antenna] [Bluetooth V5.0, SBC/MP3/AAC/APT-X /APTX-LL/APTX-HD, 44.1K-48KHz 16/24Bit] 1x IN 3/4 [Analog Audio Input, 3.5mm Audio Jack] [LINE audio, Un-balanced 2CH, Max input level 10dBu] 1x OUT 1/2 (IN 1/2) [Analog Audio Output/Input, 3.5mm Audio Jack] [LINE audio, Un-balanced 2CH, Max output/input level 10dBu] 1x OUT 1/2 (IN 1/2) LED [Analog Audio Output/Input LED] 1x OUT 3/4 [Analog Audio Output, 3.5mm Audio Jack] [LINE audio, Un-balanced 2CH, Max output level 10dBu] |

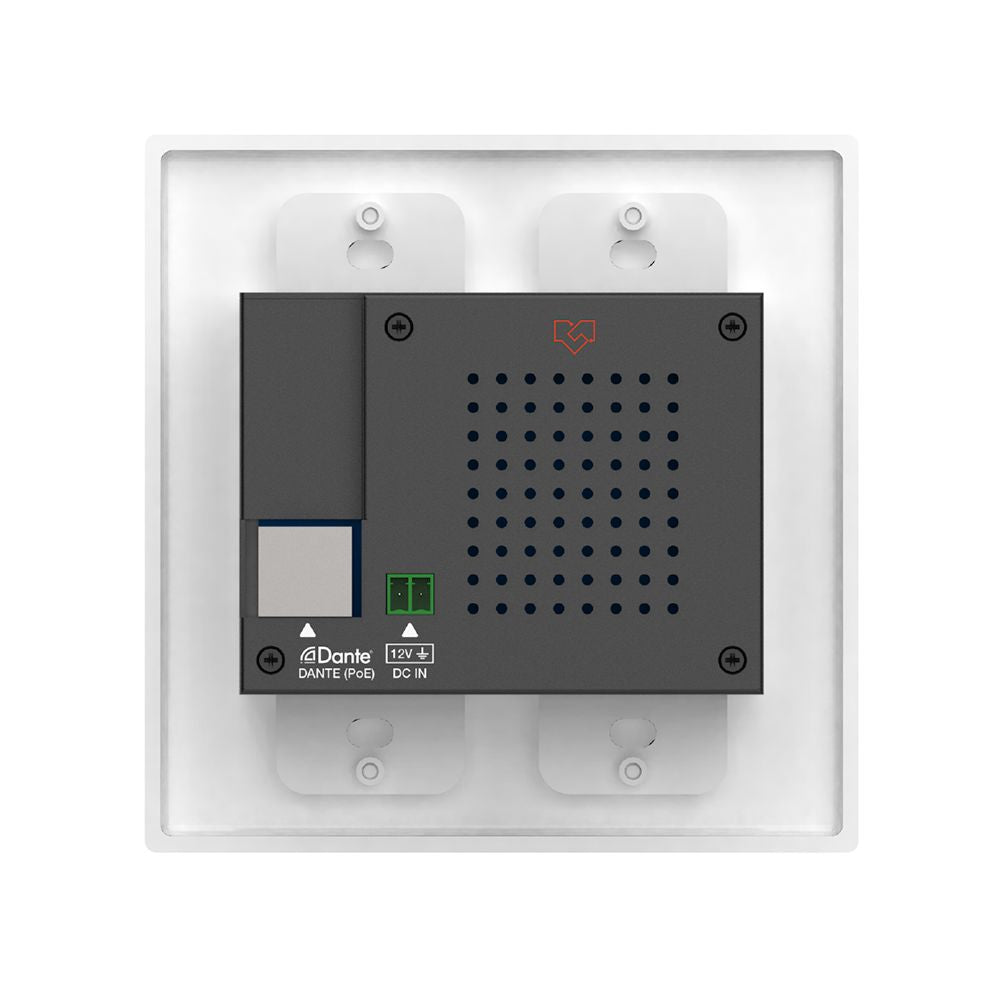

| Real Panel | 1x DANTE [RJ45 connector, PoE] [Digital audio in/out, PCM 2CH 44.1K-96KHz 16/24Bit] 1x DC/12V [2-pin phoenix, 3.5mm] |
| Connection | |
| Inputs Audio Port | 1x Bluetooth IN (Wireless) 2x L/R IN (3.5mm) 1x DANTE IN (RJ45) |
| Inputs Audio Format | Bluetooth V5.0: SBC/MP3/AAC/APT-X /APTX-LL/APTX-HD, 44.1K-48KHz 16/24Bit L/R: Analog audio, Max input level 10dBu DANTE: LPCM 2 channels, 24 bits @ 44.1-96 kHz / channel |
| Output Audio Port | 1x Bluetooth OUT (Wireless) 2x L/R OUT (3.5mm) 1x DANTE OUT (RJ45) |
| Output Audio Format | Bluetooth V5.0: SBC/MP3/AAC/APT-X /APTX-LL/APTX-HD, 44.1K-48KHz 16/24Bit L/R: Analog audio, Max output level 10dBu DANTE: LPCM 2 channels, 24 bits @ 44.1-96 kHz / channel |
| Control | |
| Control Method | Button, TCP/IP, Web GUI |
| Mechanical | |
| Housing | Plastic (front panel and cover) Iron (rear enclosure) |
| Color | White or Black two different models (front panel and cover) Black (rear enclosure) |
| Operating Temperature | 32 to 113° F (0 to 45° C) |
| Storage Temperature | -4 to +140° F (-20 to +70° C) |
| Operating Humidity | 10 - 90%, non-condensing |
| Storage Humidity | 10 - 90%, non-condensing |
| Power | PoE Class 0 IEEE 802.3a) or local 12VDC/0.5A |
| Power Consumption (Maximum) | TBD |
| ESD Protection | Human body model: ±8 kV (air-gap discharge), ±4 kV (contact discharge) |
| Surge Protection | Voltage: ±1 kV |
| Dimensions | 91.8mm (W)×43mm (D)×105mm (H) |
| Weight | 230g |
| Certification | CE, RoHS compliant |
