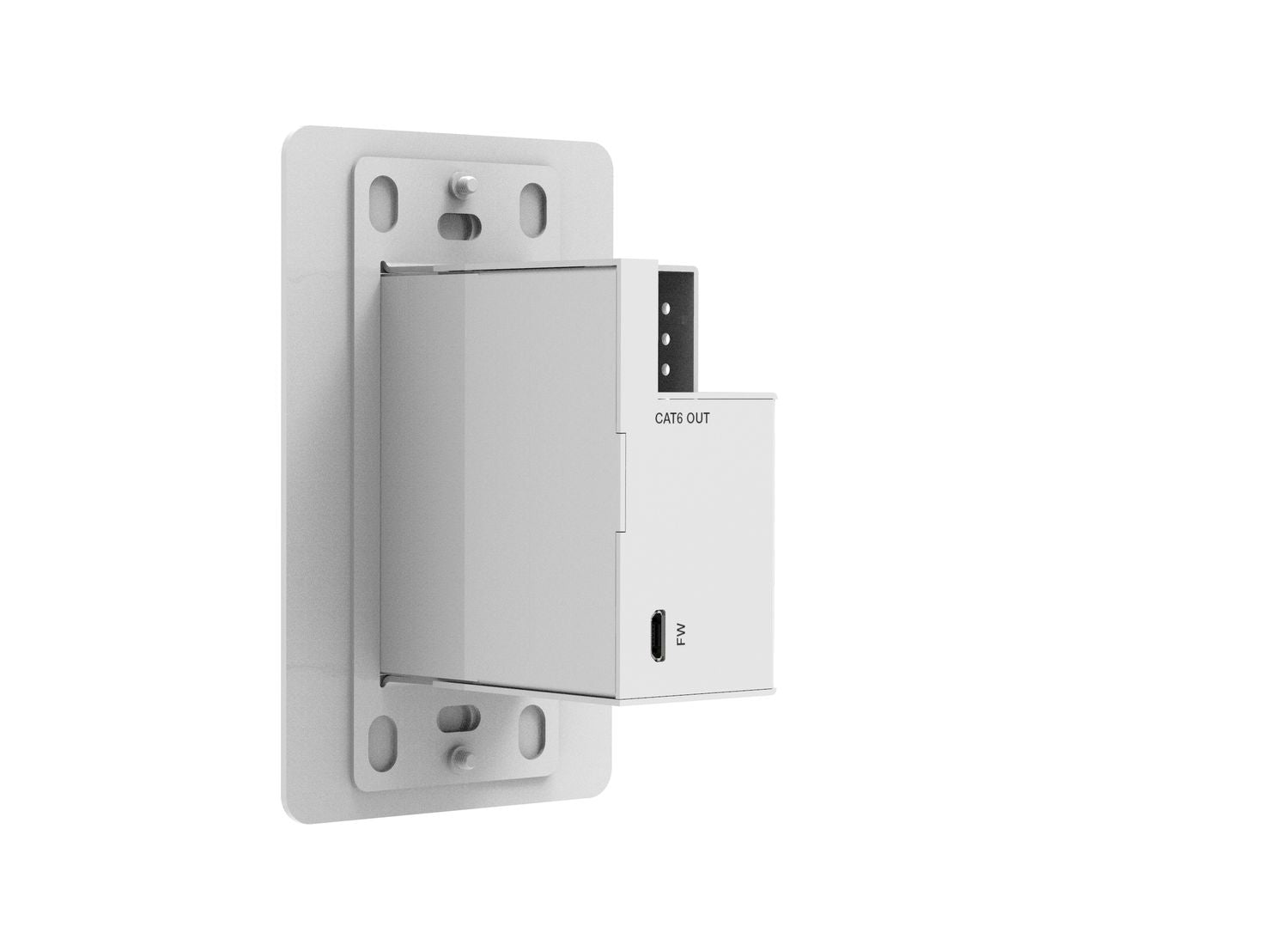

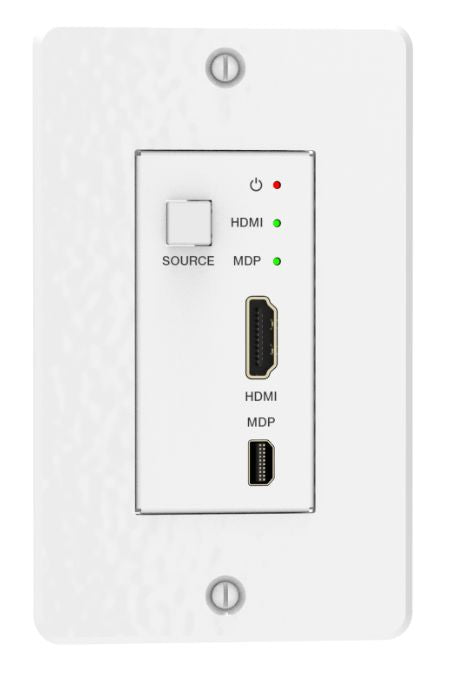

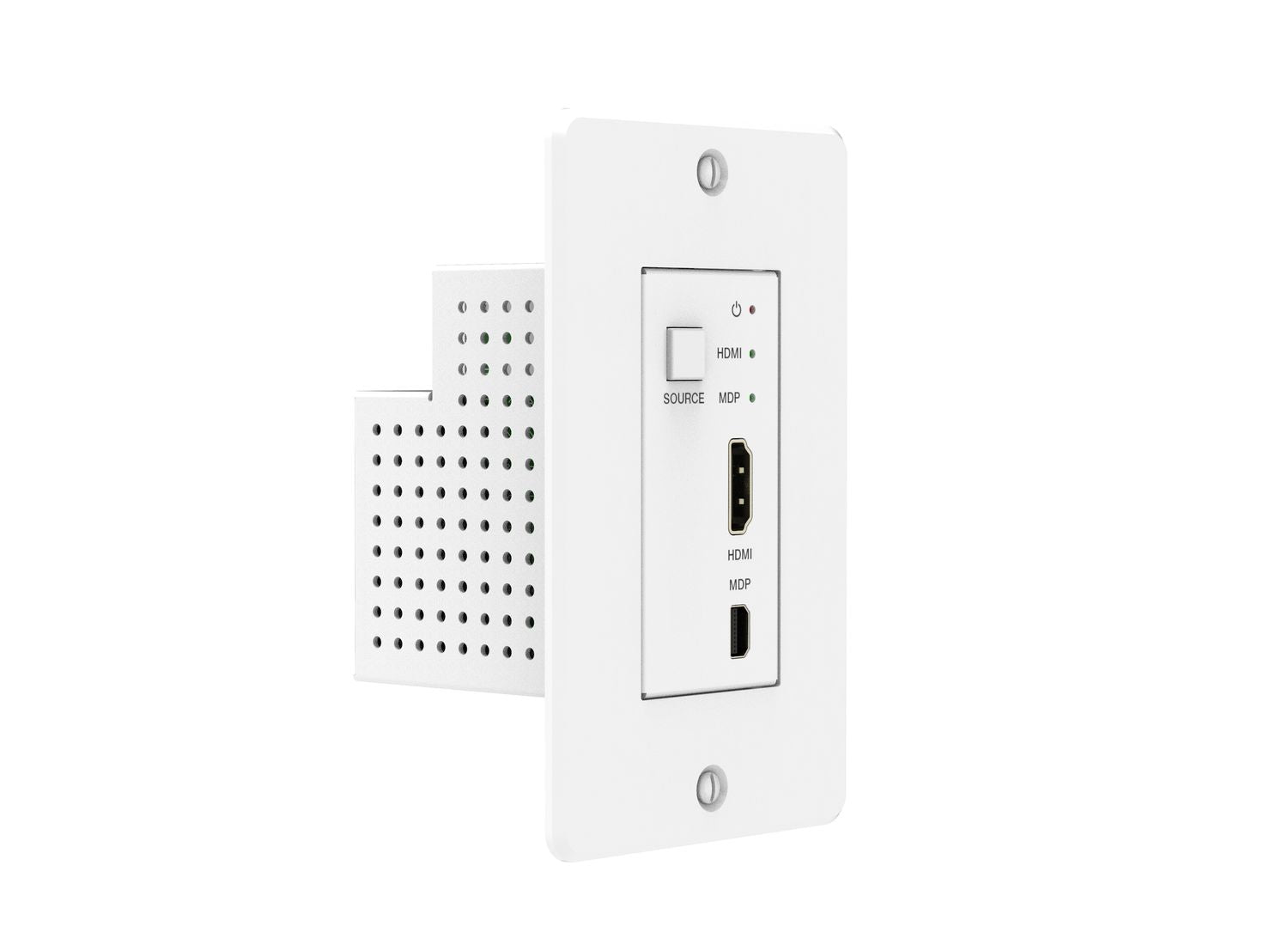

The wall plate is a 2x1 switcher and CAT transmitter with HDMI and DP inputs. It features a US one-gang enclosure for Decora-style wall plate openings with interchangeable black and white wall plates and face- plates. Support video resolution up to 4K/UHD@60Hz 4:4:4. CAT6 output can extend video transmission distance up to 164ft / 50m. The product is remotely powered by the receiver or other CAT-equipped devices via POC.

Featured Highlights

Compliant with HDMI 2.0b, HDCP 2.2, and Display Port 1.2a
Supports 18Gbps video bandwidth
Video resolution up to 4K/UHD@60Hz 4:4:4
CAT6 output can extend video transmission distance up to 164ft / 50m for 4K@24 or 115ft / 35m for 4K@60 444 via a single CAT5e/6 cable
Supports 3D and HDR format video, does not support CEC control
HDMI audio formats support LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Supports HDMI and MDP input
US one-gang enclosure for Decora-style wall plate openings
Input signal selection supports automatic mode and manual mode
Supports POC function (only from Receiver to Transmitter)
Available in white or black coating

Specifications

Technical
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
DP Compliance	Display Port 1.2a
Video Bandwidth	DP: 5.4 Gbps HDMI: 18 Gbps
Video Resolution	480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz
Color Space	RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
Color Depth	8/10/12-bit (1080P@60Hz) 8-bit (4K@60Hz)
HDR	3D, HDR10 and Dolby Vision
HDMI Audio Formats	LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Transmission Distance	Max distance (4K@24) : 164ft / 50m over CAT5e/6 Max distance (4K@60) : 115ft / 35m over CAT5e/6
ESD Protection	Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection

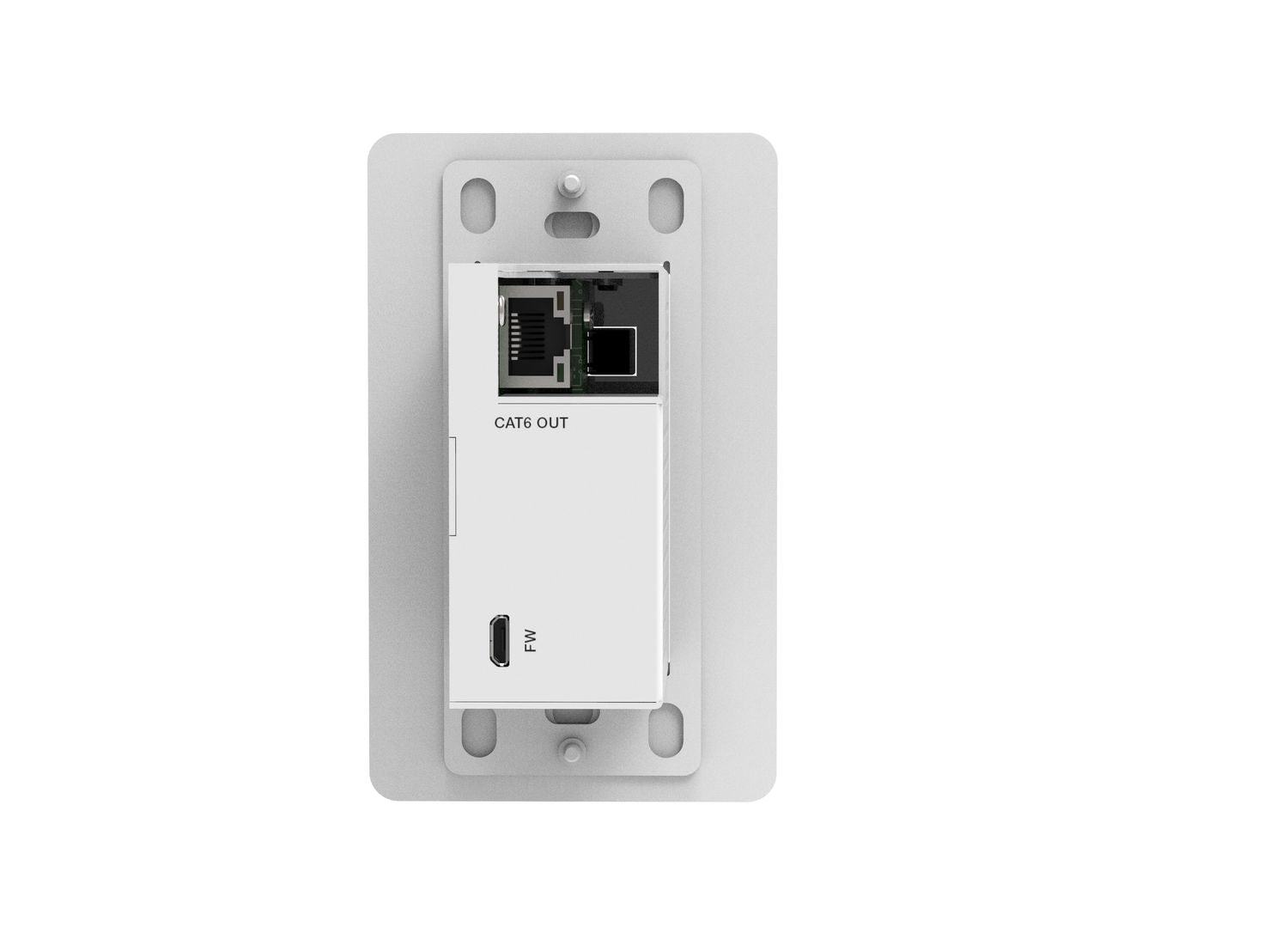

Transmitter	Inputs: 1x HDMI Type A [19-pin female] 1 x miniDP [20-pin female] Outputs: 1 x CAT6 OUT [RJ45, 8-pin female] Controls: 1 x FW [Micro USB, Update port]
Receiver	Inputs: 1x CAT IN [RJ45, 8-pin female] 1x HDBaseT IN [RJ45, 8-pin female] Outputs: 1x HDMI OUT [Type A, 19-pin female] 1x AUDIO OUT [Phoenix jack] Controls: 1x IR IN [3.5mm Stereo Mini-jack] 1x SERVICE [Micro USB, Update port]
Mechanical
Housing	Metal Enclosure
Color	White / Black
Dimensions	Wall plate: 33.3mm [W] x 65.7mm [D] x 68.7mm [H] Faceplate: 69.9mm [W] x 3mm [D] x 114.3mm [H] Receiver: 88mm[W] × 61mm [D] × 18mm [H]
Weight	Wall plate: 175g, Receiver: 155g
Power Supply	PoE (only from Receiver to Transmitter)
Power Consumption	Wall plate: 2.2W (Max), Receiver: 3.72W (Max)
Operating Temperature	0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature	-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity	20 - 90% RH (No condensation)
