VigilLink Dante Bluetooth Wall Plate True Stereo with 3.5 mm Audio in and out, VLDT-WP44AB

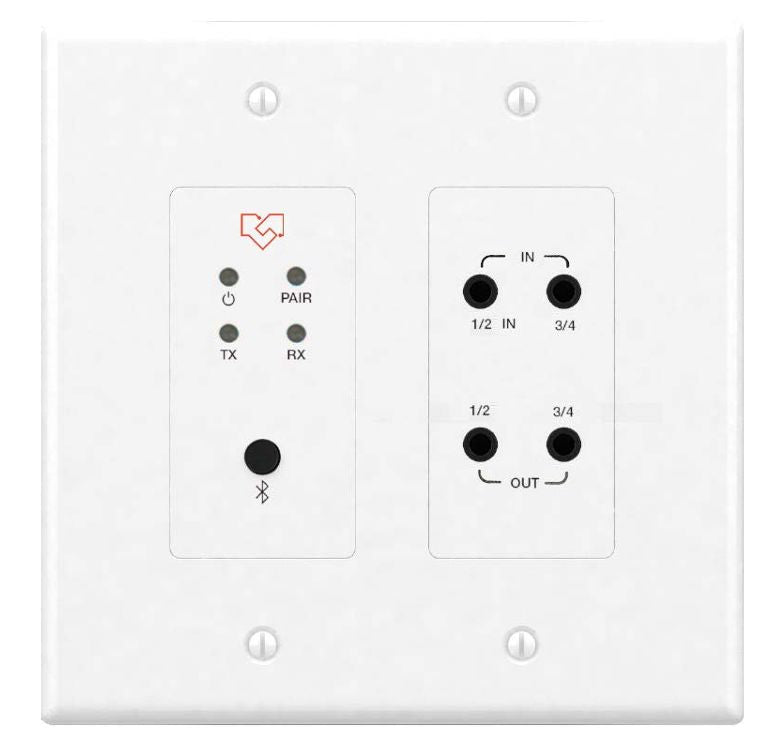

Introducing the VigilLink Dante 4x4 Wall Plate—an innovative solution that seamlessly integrates Bluetooth and analog audio with a digital Dante® networked audio system. This standard US Decora 2 Gang-sized wall plate offers versatile multi-input/output capabilities, featuring 2 channels of Bluetooth and 2 channels of unbalanced audio inputs, totaling 4 channels converted to Dante® digital audio. On the output side, it converts 4 channels of Dante® audio to 4 channels of unbalanced audio outputs. The flexibility extends further, allowing it to function as 4 channels of unbalanced audio inputs converted to Dante® digital audio, 4 channels of Dante® audio converted to 2 channels of Bluetooth outputs, and 2 channels of unbalanced audio outputs.

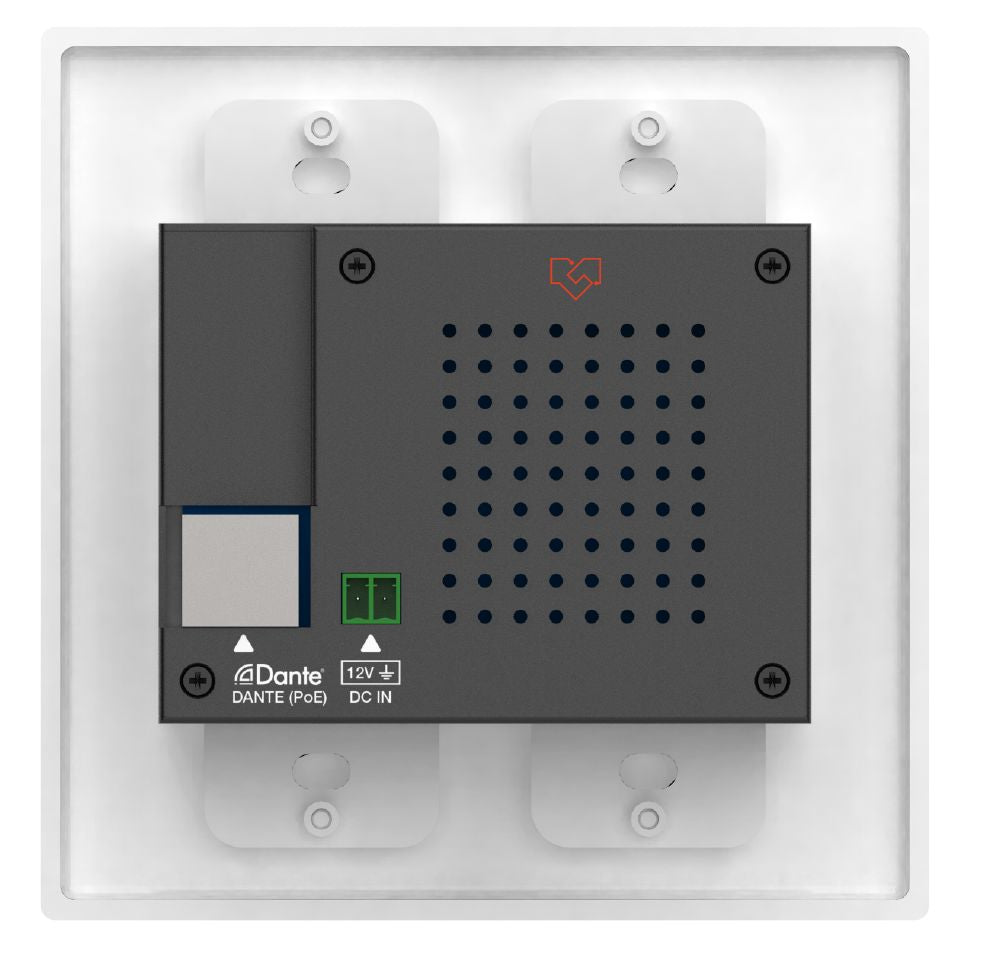

Control is at your fingertips with front panel buttons, API commands via TCP/IP, and a built-in web server/GUI for Bluetooth configuration and input/output control. The product’s software configuration enables customization of Bluetooth names for multiuser deployments. Power options include PoE (Power over Ethernet) or a local 12V DC power supply supporting AES67 RTP audio transport. The VigilLink Dante 4x4 Wall Plate is the ultimate BYOD interface, enabling any Bluetooth device to stream audio to a Dante® audio system wirelessly.

Featured Highlights

• Dual Working Modes:

  Mode 1: Transforms 2-channel Bluetooth and 2-channel un-balanced audio inputs to Dante® audio while providing 4-channel un-balanced audio outputs.

  Mode 2: Converts 4-channel un-balanced audio inputs to Dante® audio, with 2-channel Bluetooth and 2-channel un-balanced audio outputs for added flexibility.

• Configurable Bluetooth Naming: Easily discover the device thanks to customizable Bluetooth naming, ensuring effortless integration into your network.

• Precise Control: Adjust input sensitivity from +10dBu to -10dBV via intuitive control software and fine-tune output gain within the range of +10dBu to -10dBV using the same software.

• Audio Excellence: Supports Dante® at 44.1, 48, and 96kHz sample rates with options for 16, 24, or 32-bit audio depth. Configure Dante® device latency (choose between 1, 2, or 5ms) seamlessly using Dante® Controller. Enables AES67 RTP audio transport for versatile audio distribution.
