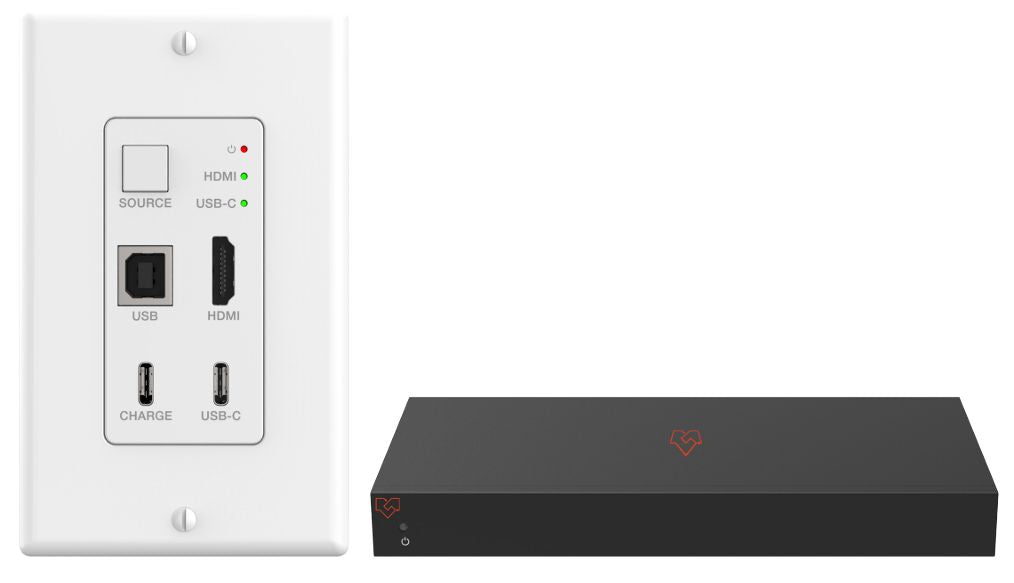

VigilLink 2x1 Wall Plate 1-Gang w/Auto-Switching, HDBaseT 2.0 4k@60Hz 4:4:4 USB-C/HDMI 2.0, USB2.0 with RX White 40m 18Gbps, VLWP-UHU-TR

The VLWP-UHU-TR wall plate features HDMI and USB-C inputs, alongside a local HDMI input on the receiver, ensuring seamless connectivity. Supporting HDMI 2.0b, HDCP 2.2, and DisplayPort 1.2a, it handles 18Gbps video bandwidth for resolutions up to 4K@60Hz 4:4:4. With HDBaseT technology, extend video up to 70m for 1080P or 40m for 4K as well as USB2.0. Audio support is provided for Dolby Atmos and DTS X. The US one-gang enclosure fits Decora-style wall plates, adds convenience.

Featured Highlights

• HDMI and USB-C input, plus Local HDMI input on Receiver

• HDMI 2.0b, HDCP 2.2, and DisplayPort 1.2a

• Support for 18Gbps video bandwidth

• Video resolution up to 4K@60Hz 4:4:4

• HDBaseT output can extend video transmission distance up to 230ft / 70m for 1080P or 131ft / 40m for 4K via a single Cat6/6a/7 cable

• Support for HDR10 and HDR10+

• Support for Dolby Atmos, TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High-Resolution Audio, 5.1; PCM 2-8Ch

• US one-gang enclosure for Decora-style wall plate openings

• Input signal selection supports automatic mode and manual mode

• USB2.0 extension with Receiver

• Transmitter Wallplate is powered via category cable

Specifications
