The EchoSplit allows you to send an HDMI signal to two displays with different resolutions while still letting each display perform at its highest supported resolution.
Most HDMI splitters allow you to send a single HDMI signal and "Mirror" it to two or more displays. However, if one of the displays in the setup supports a lower resolution than the rest, then all of the other displays will get a lower resolution because the HDMI splitter can only send an identical resolution to all displays.
For example: If you have a 4k TV and a 1080p TV connected to a regular HDMI splitter, both TV's would only get 1080p video even if your source signal is 4k.
The EchoSplit solves this problem by sending each display the highest quality signal they can receive. For example: in the scenario described above, the EchoSplit would send a 4K signal to the 4K display and a 1080p signal to the 1080p display.
Dip switch configuration 1 is the auto downscaling mode and is recommended for most situations.
Automatic Downscaling
The EchoSplit automatically detects which display supports the lower resolution and downscales the signal being sent to that display only, and sends the original 4k signal to the 4k display.
- Output port 1 takes priority, so we recommend putting the 4K display on port 1 and the 1080p display on port 2.
- Please enable HDCP 2.2 and any variation of "enhanced HDMI" mode on your HDMI port for the 4K display.
- Changing of refresh rates is not supported.
Specifications
Mfg. Part Number
- 1x2: SW-33063
- 1x4: SW-33084
Brand
- Sewell
Features
- HDMI 2.0 (4K @ 60Hz 4:4:4)
- HDMI Splitter
- Auto downscaling to 1080p on one port
- Supports ARC and CEC
- HDCP compliance: HDCP 1.4 up to HDCP 2.2
G
Gilberto Good quality and excellent product.
A

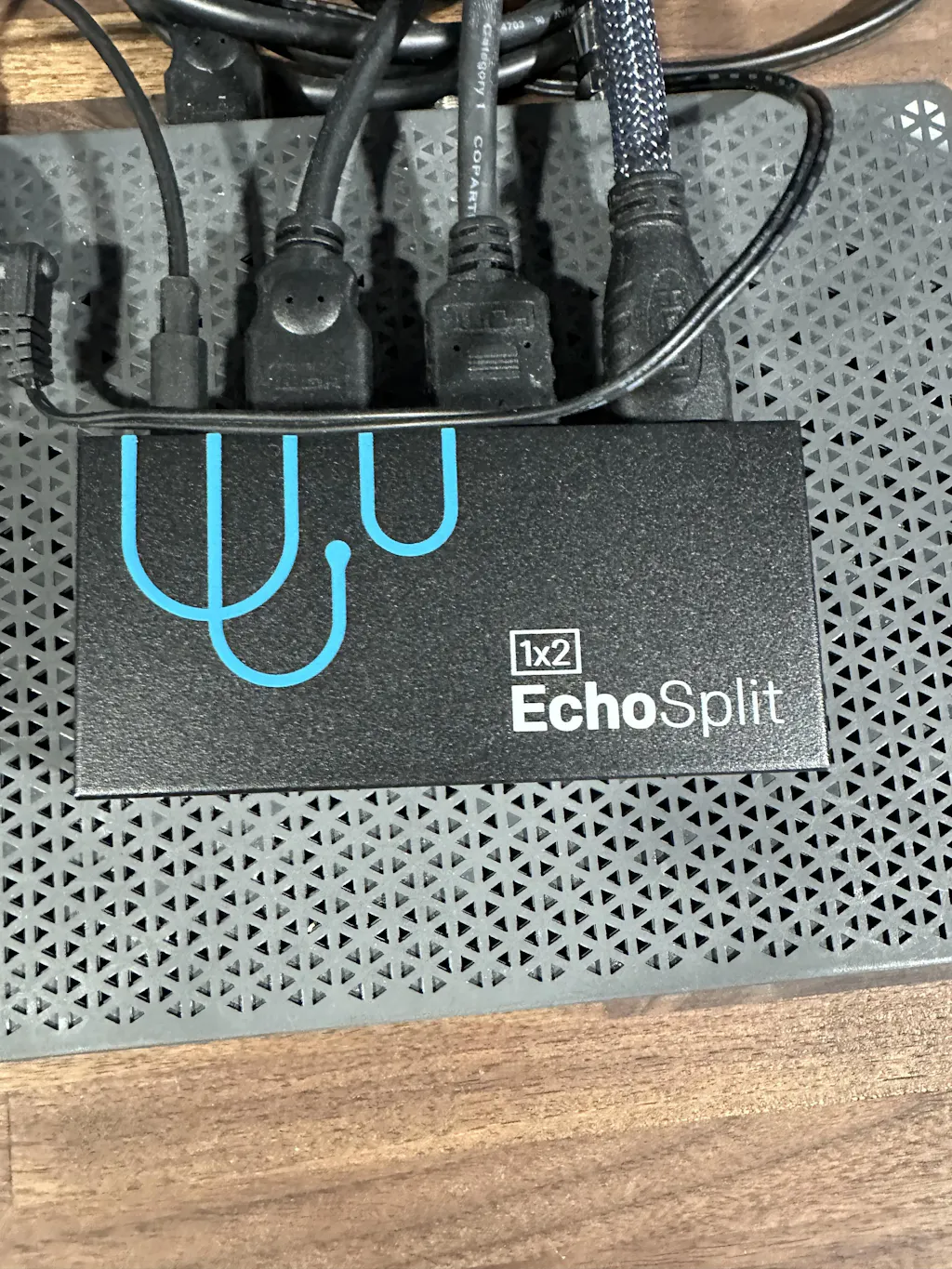

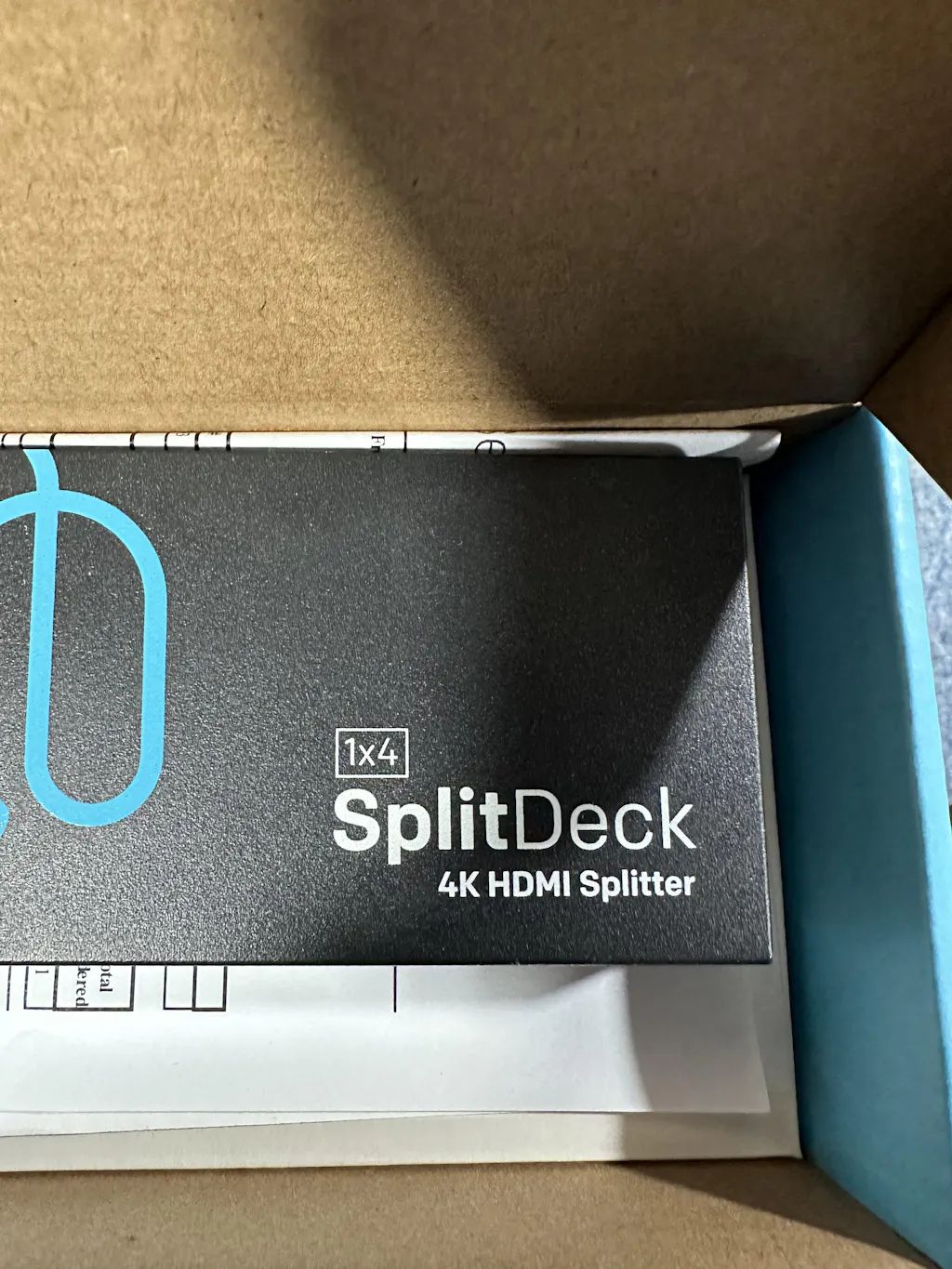

Anthony Prince Since i've purchased a 1x4 SplitDeck 4K HDMI Splitter couple months ago it keeps shutting down and coming back up whilst watching another TV. At first i thought it was the cable, but after checking other HDMI cables i realized it was the device. That made me purchase 1x2 EchoSplit HDMI splitter from y'all. First purchase that i'm not happy with from y'all.This recent one is great. i've purchased it before and it worked. But the 1x4 was horrible.
Hello Anthony, sounds like the unit you may have received is possibly defective. We'd love to get you sent out a new working unit to resolve that issue for you. Please reach out to us at support@sewelldirect.com and we'd love to get that set up for you.
J
Jeff Johnson Just ran the wire last night to the splitter. hooked up and everything is working like I had hoped. Love it when that happens. One happy dude ! Thank You!
G
Gary Lessis I was having a problem with intermittent video going out on my TVs. This issue is fixed. I have 1 4K TV and 3 HD TVs. I was hoping that the device would preserve 4k for my 4k TV and present HD to the other 3 TVs. It is not working. If I send 4k to the device, it is send HD to all 4 devices.
We're sorry you experienced difficulties with this product! Feel free to reach out to our technical support team!
D
Dayv Product did not do what it advertises. 4K split was fine but, 4K to TV 1 with 1080 only LG as TV 2 no worky. My fix, bought the customer a new 4K TV...problem solved, headache gone. Now the return process....
I'm sorry that product did not perform as expected. Please reach out to customer service to start the refund process.
