The VLDT-UC22DT Dante ® 2CH USB-C I/O Adapter is an audio converter based on the Dante ® Ultimo 2x2 solution. It converts between two-channel USB audio and Dante ® two-channel digital audio.

The adapter supports a local USB-C port power supply as well as PoE.

Featured Highlights

Converts between two-channel USB audio and Dante ® two-channel digital audio
USB audio device class 1.0/2.0-compatible
USB audio output up to 192KHz@24bit, USB audio input up to 96KHz @24bit
Dante ® audio sampling rate supports 44.1/48/88.2/96KHz@24bit
Dante ® audio delay supports 1/2/5ms (configurable)
Supports local USB-C port power supply and PoE function (Class 0 802.3af PoE)
Compact design for easy and flexible installation

Specifications

Technical
Audio Formats	LPCM 2.0
Frequency Response	20Hz to 20kHz (-/+0dB)
Dynamic Range	>130dB, 1kHzA-weighted
Audio S/N Ratio	>130dB, 1kHzA-weighted
Audio THD+N	< 0.01% at +4dBu, 1KHz
Audio Output Sync Delay	<10ms
Audio Latency	Configurable Dante® device latency (Supports 1, 2 or 5ms configurable using Dante ®Controller)
Connection
Input Ports	1x USB-C [USB-C with USB 1.0/2.0, USB audio in/out, 12-pin female]

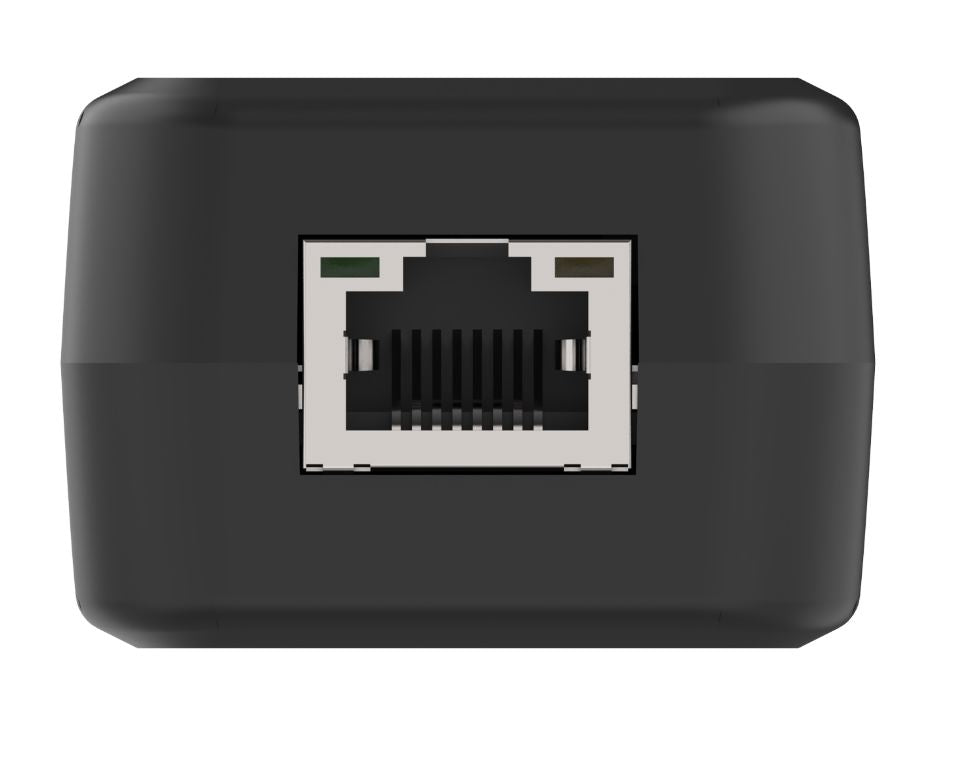

Output Ports	1x DANTE [RJ45 connector, Digital audio in/out, PoE]
Control Ports	1x POWER [USB-C power and firmware update port, 12-pin female] 1x RESET button [System reboot button] 1x USB-C LED [Green color, USB 5V indicator]
Mechanical
Housing	Plastic Enclosure
Color	Black
Dimensions	115mm [L] × 40mm [W] × 28mm [H]
Weight	0.09g
Power Supply Voltage	5V
Power Supply Current Draw	500mA
Operating Temperature	0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature	-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity	20 - 80% RH (relative humidity, non-condensing)
ESD Protection	IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
