Description

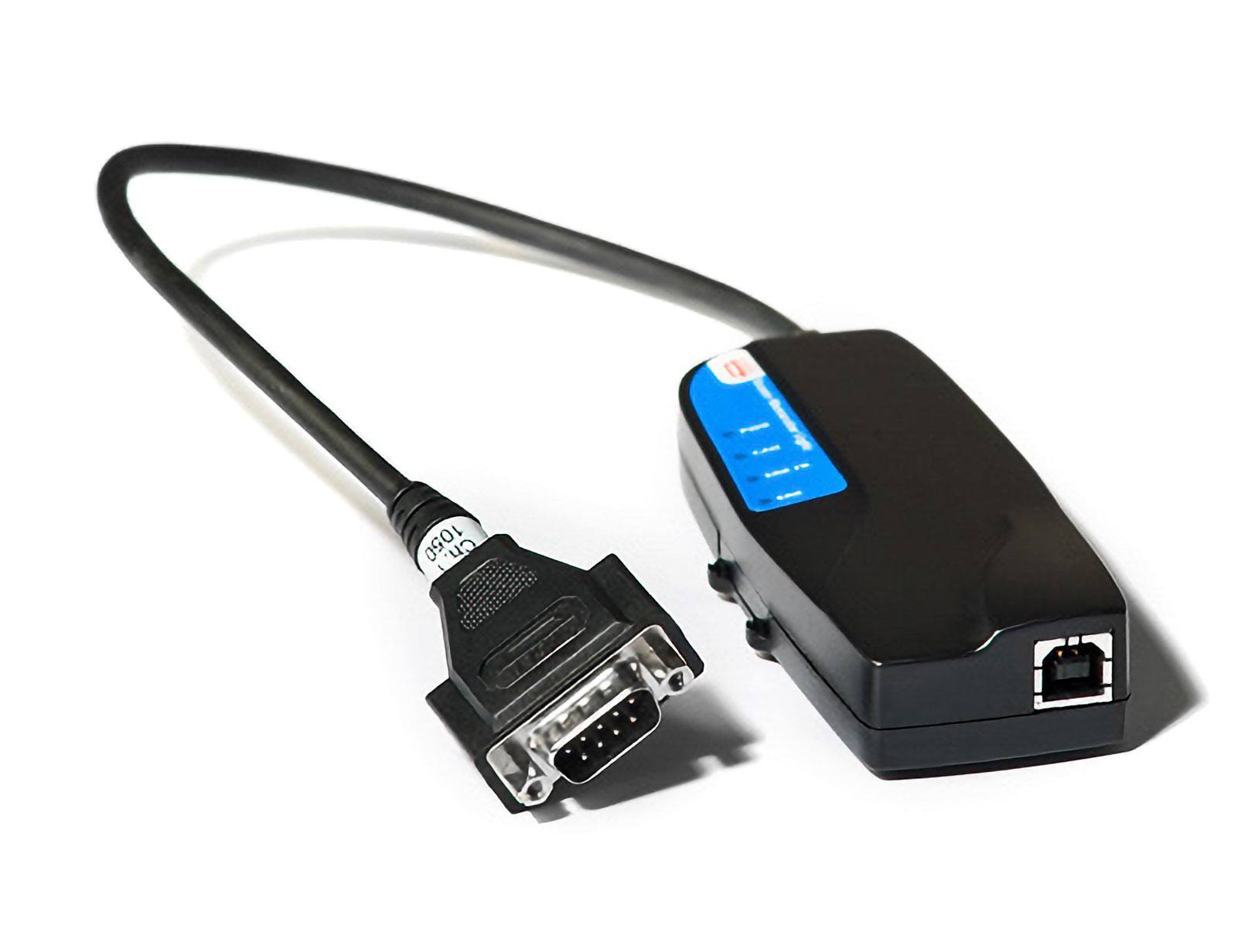

The Kvaser Memorator Light is a preconfigured data logger designed for troubleshooting any CAN-based (controller area network) system. The Memorator Light is an easy-to-use tool for logging serial data, with no software setup required. With an autobaud function that determines CAN bus bit rate, the Memorator Light can be attached to any high-speed CAN bus without configuration. All CAN bus traffic is logged in a circular buffer, overwriting the oldest data when the buffer becomes full. A separate circular buffer keeps track of error frame conditions and the message traffic that occurs near the conditions.

Major Features

  • Single high-speed CAN channel (compliant with ISO 11898-2).
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
  • Supports bit rates from 10 Kbit/sec up to 1 Mbit/sec.
  • Auto detects bit rate - removes the need for configuration.
  • Always in silent mode - log bus traffic without interfering.
  • 1 GByte of internal memory for message storage.
  • All received CAN frames are recorded in a circular buffer - oldest data is overwritten by the newest.
  • A second circular buffer records 1000 messages before and after an error frame occurs.
  • The Kvaser Memorator Light extraction software provides easy access to the recorded data when connected to the device via a USB port. The tool supports multiple formats used by popular analysis software. In addition, the extraction software allows the user to clear and reinitialize the device's memory.

Warranty

  • 2-Year Warranty from Kvaser.

Software

  • Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
  • Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
  • All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
  • J2534 Application Programming Interface available.
  • RP1210A Application Programming Interface available.
  • On-line documentation in Windows HTML-Help and Adobe Acrobat format.

Specifications

Mfg. Part Number

  • 73-30130-00513-6

Technical Specifications

  • Bitrate: 10-1000 kbps
  • Certificates: CE, RoHS
  • Channels: 1
  • Connectors: DSUB 9
  • Current Consumption: “~5 V and 130mA if powered from the USB and ~850mW if powered from the CAN bus.”
  • Error Counters Reading: No
  • Error Frame Generation: No
  • Galvanic Isolation: No
  • Height: 22 mm
  • Interfaces: USB
  • Internal Memory: 1 GB
  • Length: 115 mm
  • Material: PC-ABS
  • Max Card Size: 64+ GB
  • Messages Per Second Receive: 6,000 mps
  • OS: Win XP, Linux, Win 7, Win Vista, Win 8, Win 10
  • Silent Mode: Yes
  • Sound: No
  • Temperature Range: -40 to 85 °C
  • Timestamp Resolution: 2 µs
  • Weight: 150 g
