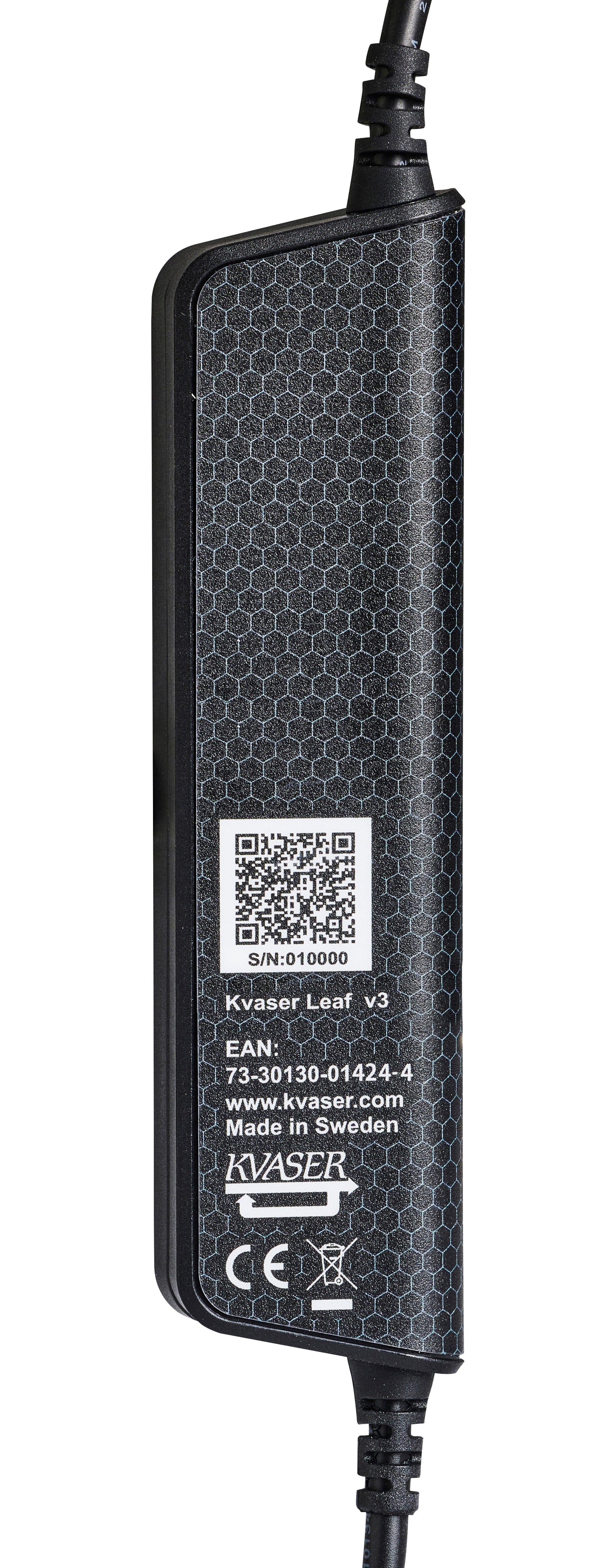

The Kvaser Leaf v3 represents one of the easiest and lowest-cost methods of connecting a computer to a CAN bus network in order to monitor and transmit CAN and CAN FD data. With its standard USB 2.0 connector and 9-pin D-SUB connector, the Leaf v3's sleek, ergonomically designed housing is both robust enough for everyday use and small and flexible enough to be used in space-constrained applications.
The Leaf v3 can handle up to 20 000 messages per second, each time-stamped with a 50-microsecond accuracy. No external power is needed and galvanic isolation is standard.
Major Features
- 20 000 messages per second, each time stamped with a resolution of 50 μs.
- Supports CAN FD, up to 8 Mbit/s.
- Powered through the standard USB type “A” connector.
- Quick and easy plug-and-play installation.
- Supports silent mode for analysis tools – listen to the bus without interfering.
- Galvanic isolation comes as standard on the Leaf v3, enhancing protection from power surges or electrical shocks.
- Use with Kvaser’s free general-purpose CAN monitoring software and a wide variety of advanced software for ECU development, diagnostics and calibration from Kvaser’s network of Technical Associates.
- Support for SocketCAN.
- Host OS Windows (7 or later), Linux.
- Supports J1939, CANopen, NMEA 2000® and DeviceNet when paired with advanced software from one of our many Technical Associates.
- Supports simultaneous use of multiple Kvaser interfaces.
Learn more
YouTube: Introducing the Kvaser Leaf v3
Warranty
2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.
Support
Free Technical Support on all products available by contacting support@kvaser.com.
Software
- Documentation, software and drivers can be downloaded for free at kvaser.com/download.
- Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
- All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types.
- J2534 Application Programming Interface available.
- RP1210A Application Programming Interface available.
- On-line documentation in Windows HTML-Help and Adobe Acrobat format.
Tech Specs
Bitrate
20-1000 kbps
CAN FD Bitrate
Up to 8 Mbit/s
Categories
Interfaces, Hardware, CAN
Certificates
CE, RoHS
Channels
1
Connectors
DSUB 9
Error Counters Reading
No
Error Frame Generation
No
Galvanic Isolation
Yes
Height
17 mm
Interfaces
USB
Length
165 mm
Material
PA66
Messages Per Second Receive
20000 mps
Messages Per Second Sending
20000 mps
OS
Linux, Win 7, Win 10, Win 8
Silent mode
Yes
Sound
No
Temp range
-20 °C to +70 °C
Timestamp Resolution (µs)
50 µs
