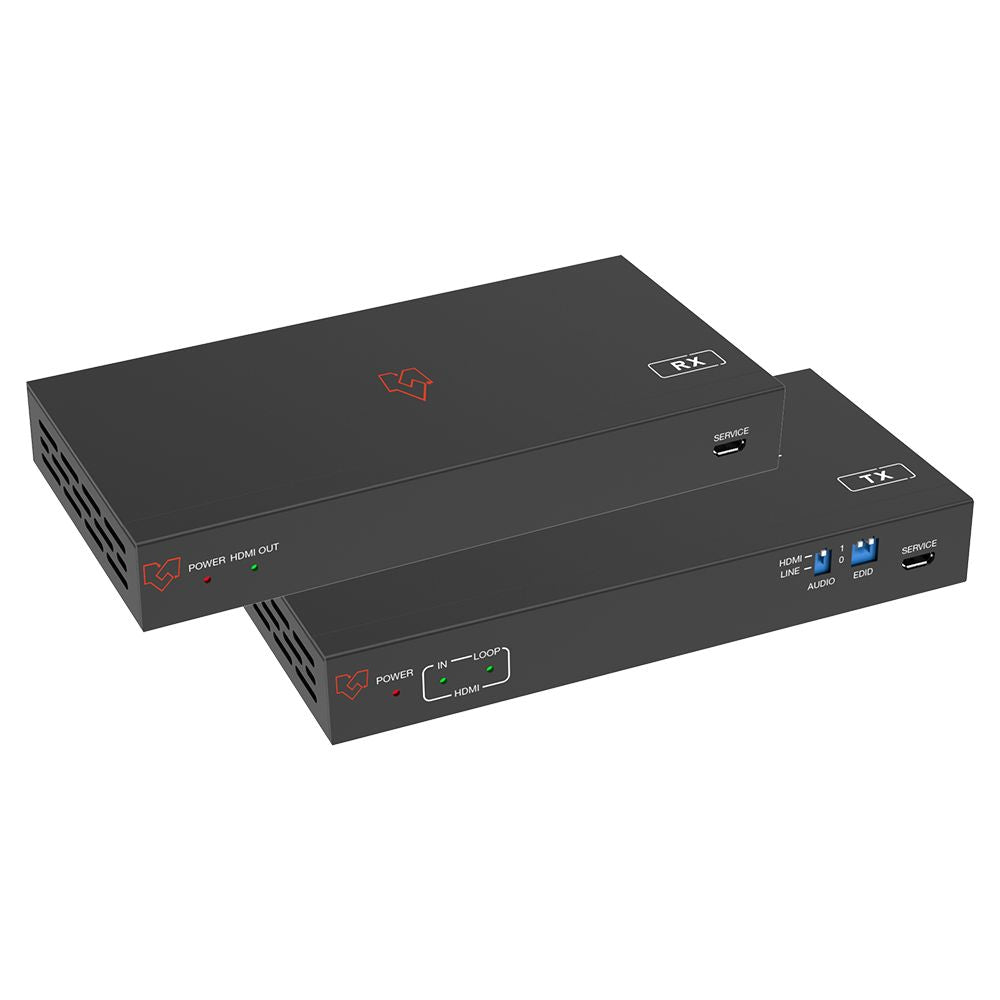

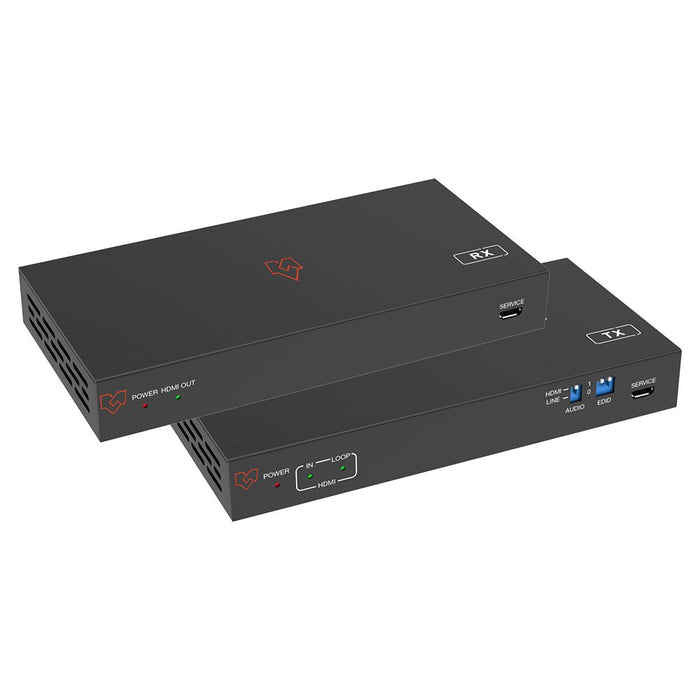

This HDBaseT Extender is capable of extending HDMI signals from signal sources to display devices via CAT 5e/6 cable with a distance up to 150m/ 492ft and video resolution up to 1080P@60Hz YUV4:4:4. It supports bi-directional IR control, RS-232 control, EDID management, audio embedment (TX), and audio dis-embedment (RX). The transmitter supports HDMI signal
loop out. Equipped with a powerful chip, the extender can continuously deliver stable work for 24 hours with low power consumption. It is easy to use, plug and play, which is widely applied in scenarios such as video conferences, out-doors big-screen demonstrations, and home theater.
Featured Highlights
-
HDMI 2.0b, HDCP 2.2 compliant
-
Up to 4K / 2K @60Hz with 24bit RGB / YCbCr (4:4:4)
-
HDR, HDR10, HDR10+, Dolby Vision pass through
-
Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
-
Up to 120m (4K) and 150m (1080P) using CAT6/6A cable
-
Two-way IR transmission
-
USB 2.0 protocol, transmission rate up to 480Mbps transmission
-
EDID management
-
Two-way PoC (Power over Cable)
Specifications

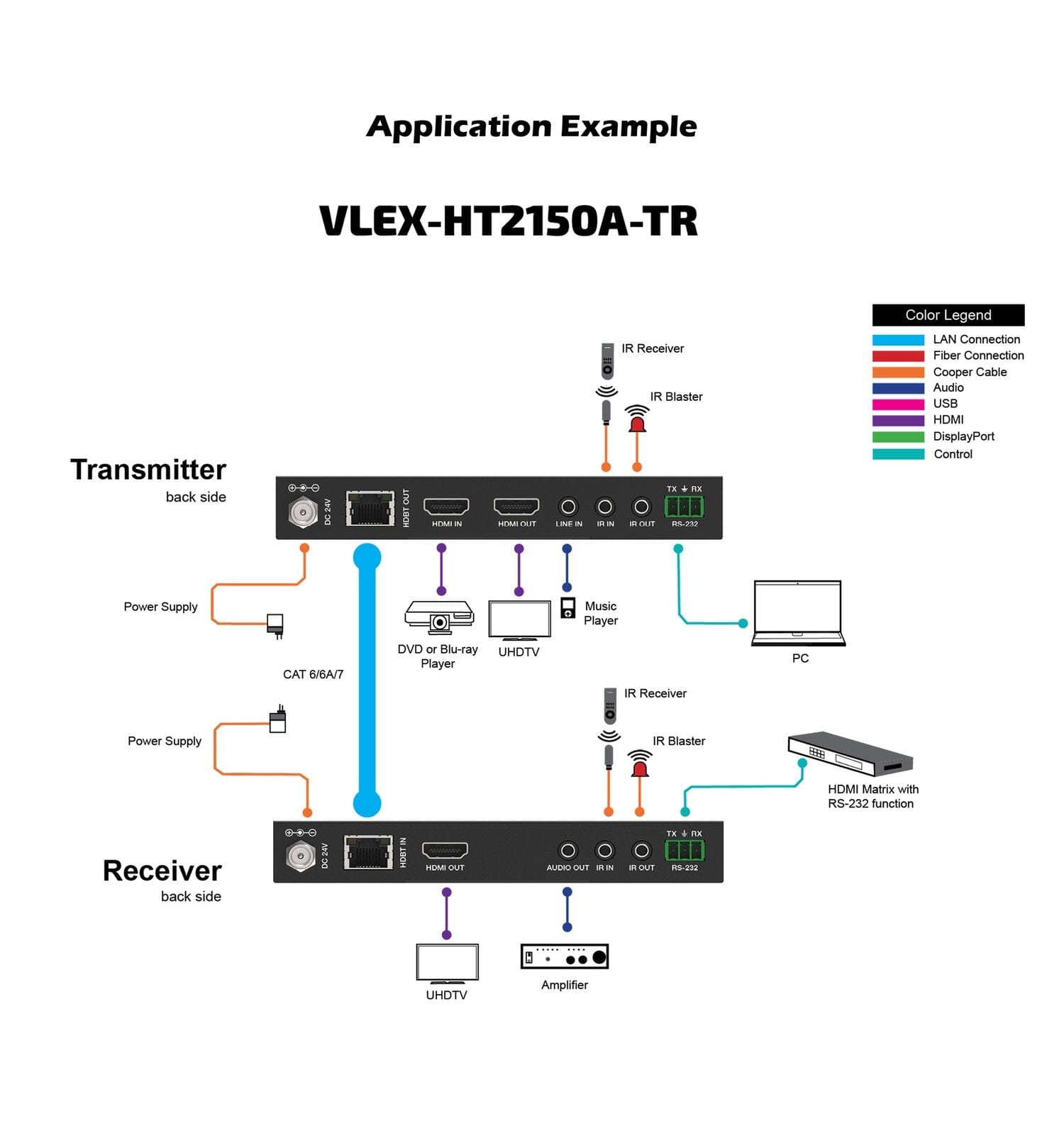

| Technical | |
|---|---|
| HDMI Compliance | HDMI 1.3 |
| HDCP Compliance | HDCP 1.4 |
| Video Bandwidth | 6.75Gbps |
| Video Resolution | 480i ~1080p50/60Hz; Up to1200P@60Hz |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2 |
| Color Depth | 8-bit (1080P60Hz) |
| HDMI Audio Formats | LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| Extension Distance | 150m/492ft at 1080P@60 |
| Connection | |

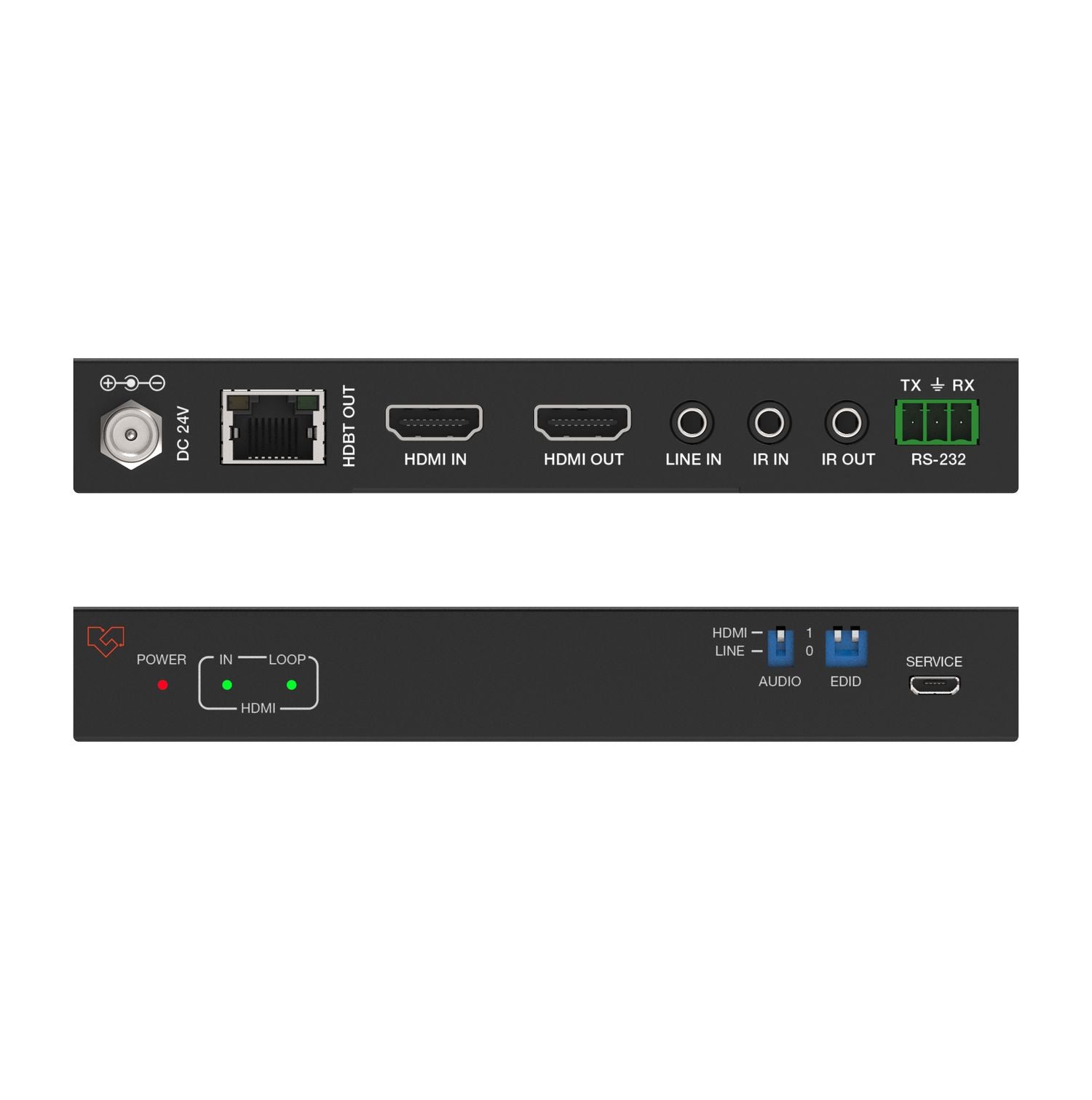

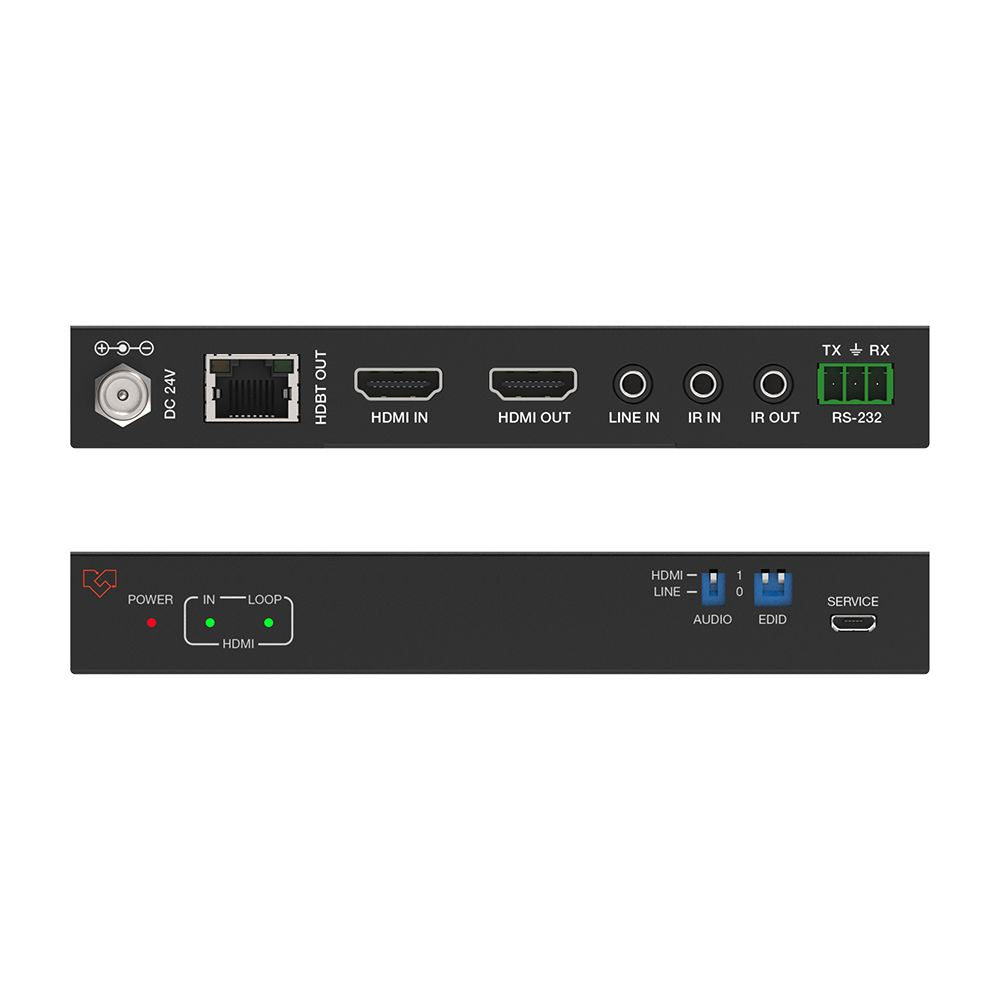

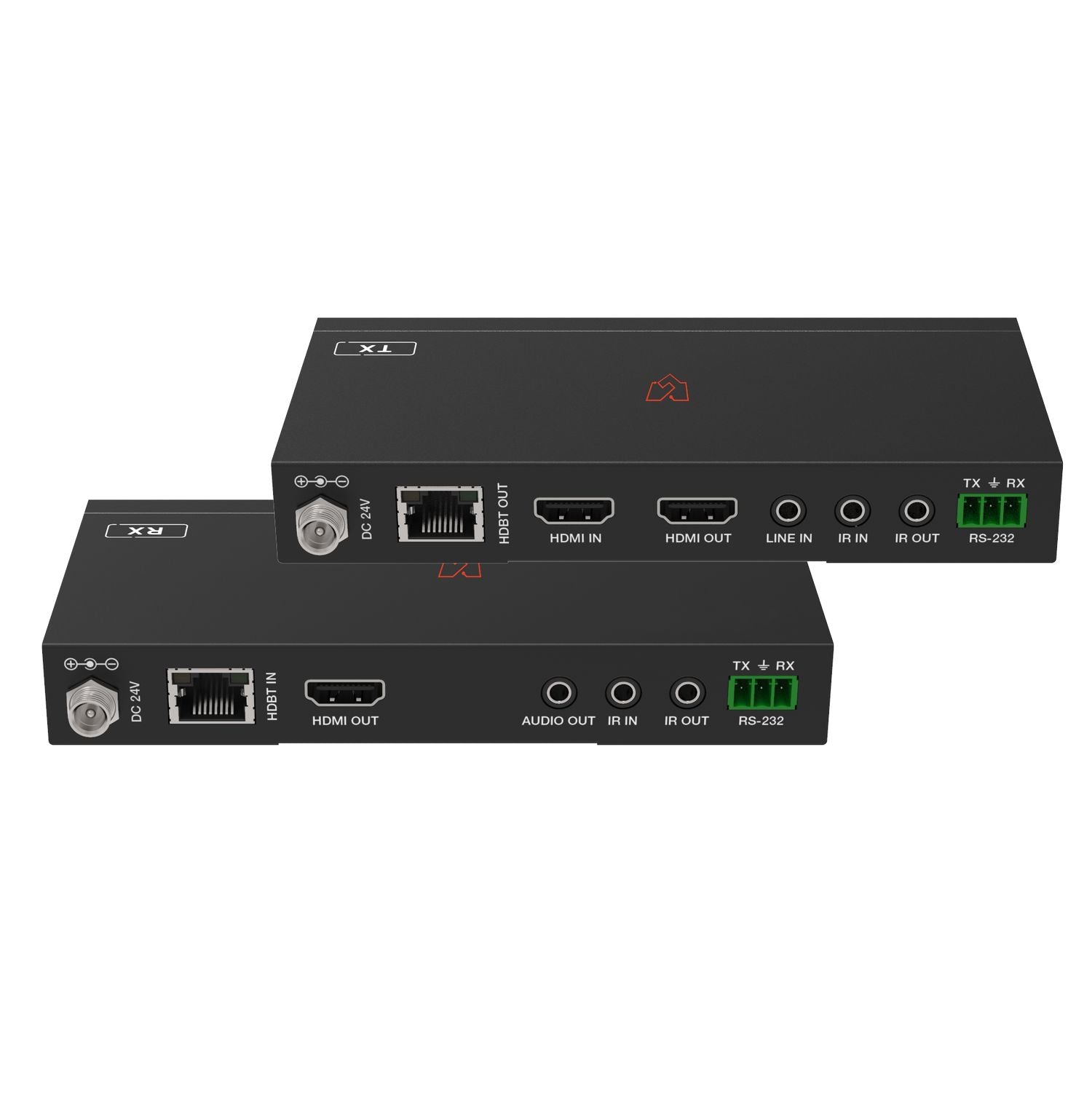

| Transmitter | Input: 1×HDMI IN [TypeA 19-pin female] 1×LINE IN [3.5mm Stereo Mini-jack] Output: 1×HDBT OUT [RJ45 8-pin female] 1×HDMI OUT [TypeA 19-pin female] Control: 1×AUDIO DIP Switch [1 pin] 1×EDID DIP Switch [2-pin] 1×IR IN [3.5mm Stereo Mini-jack] 1×IR OUT [3.5mm Stereo Mini-jack] 1×RS-232 [Phoenix jack] 1×Service [Micro-USB jack] |

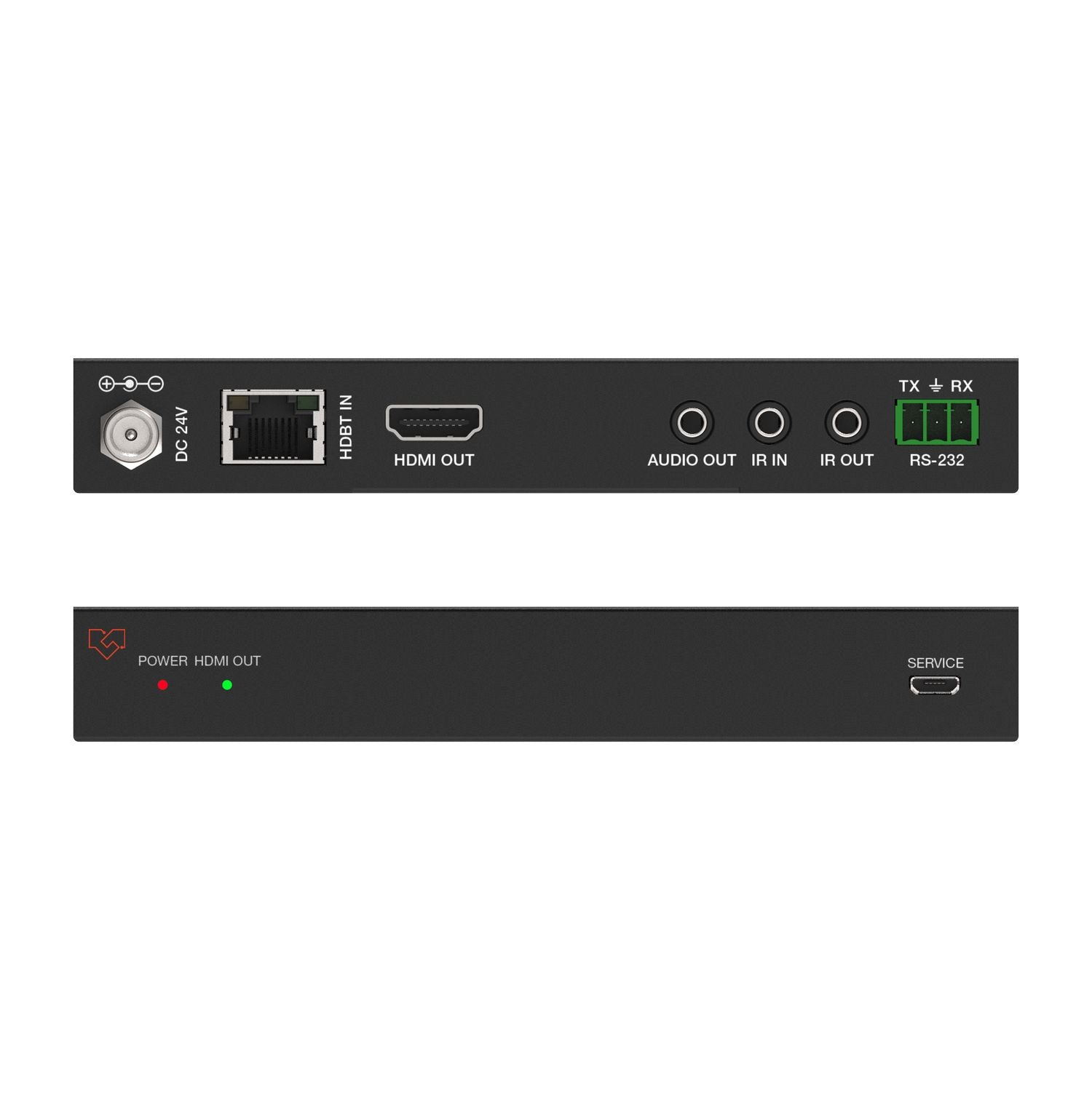

| Receiver | Input: 1×HDBT IN [RJ45 8-pin female] 1×LINE IN [3.5mm Stereo Mini-jack] Output: 1×HDMI OUT [TypeA 19-pin female] 1×AUDIO OUT [3.5mm Stereo Mini-jack] Control: 1×RS-232 [Phoenix jack] 1×SERVICE [Micro-USB jack] 1×IR IN [3.5mm Stereo Mini-jack] 1×IR OUT [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | TX/ RX:146.7mm (W)×71.5mm (D)×21mm (H) |
| Weight | Transmitter: 287g, Receiver: 249g |
| Power Supply | Input: AC100~240V 50/60Hz Output: DC 24V/1A (Locking connector) |
| Power Consumption | 8.4W (max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 - 90% RH (No condensation) |
