Epiphan DVI2PCIe AV Kit

Optional AV kit for extended DVI2PCIe Duo functionality

Expand the number of video and audio inputs your DVI2PCIe Duo video grabber supports with this optional DVI2PCIe AV Kit.

The kit includes two daughter boards, which you can interchange and connect simultaneously, and a ribbon cable for connection to the PCIe capture card. Full-height and low-profile brackets are also included to accommodate any setup.

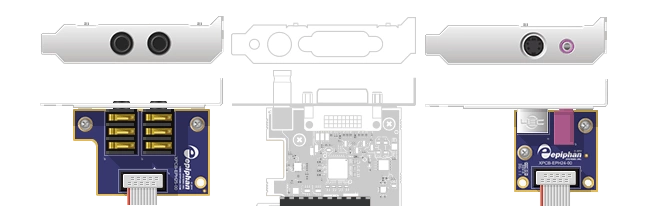

Low-profile configuration

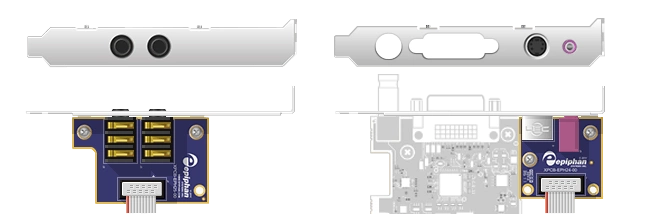

Full-height configuration

Specifications

Mfg. Part Number

• ESP0419

Brand

• Epiphan

Video Input

• Connectors: (1) S-Video connector
• Resolutions: 720×480
• VGA Signaling: NTSC, PAL or SECAM
• Color Resolution: 120 lines horizontal

Audio Inputs

• Connectors: (2) .25" left/right TRS audio (balanced or unbalanced)
• (1) 3.5 mm audio line-in

OS Support (32 and 64-bit)

• Windows XP, Windows Vista, Windows 7, Windows 8 Mac OS X 10.4 and up (including PowerPC) Linux

Dimensions

• S-Video daughter board 1.375" x 1.375" (35 mm × 35 mm)
• TRS daughter board: 1.75" × 2.1667" (45 mm × 64 mm)

Product Warranty and Replacement

All Epiphan products are covered by our warranty and return policy which includes a 100% repair or replacement warranty for 12 months from the date of shipment.

Epiphan products are shipped directly from Epiphan and are limited to a 30-day return policy (excluding manufacturer defects). The product must be unopened in the original packaging. Returns for Epiphan products are subject to a 15% restocking fee.
