VigilLink CAT Cable Digital Audio Extender 300m / CAT Cable Digital Audio Extender 300m / VLEX-ACT300-TR

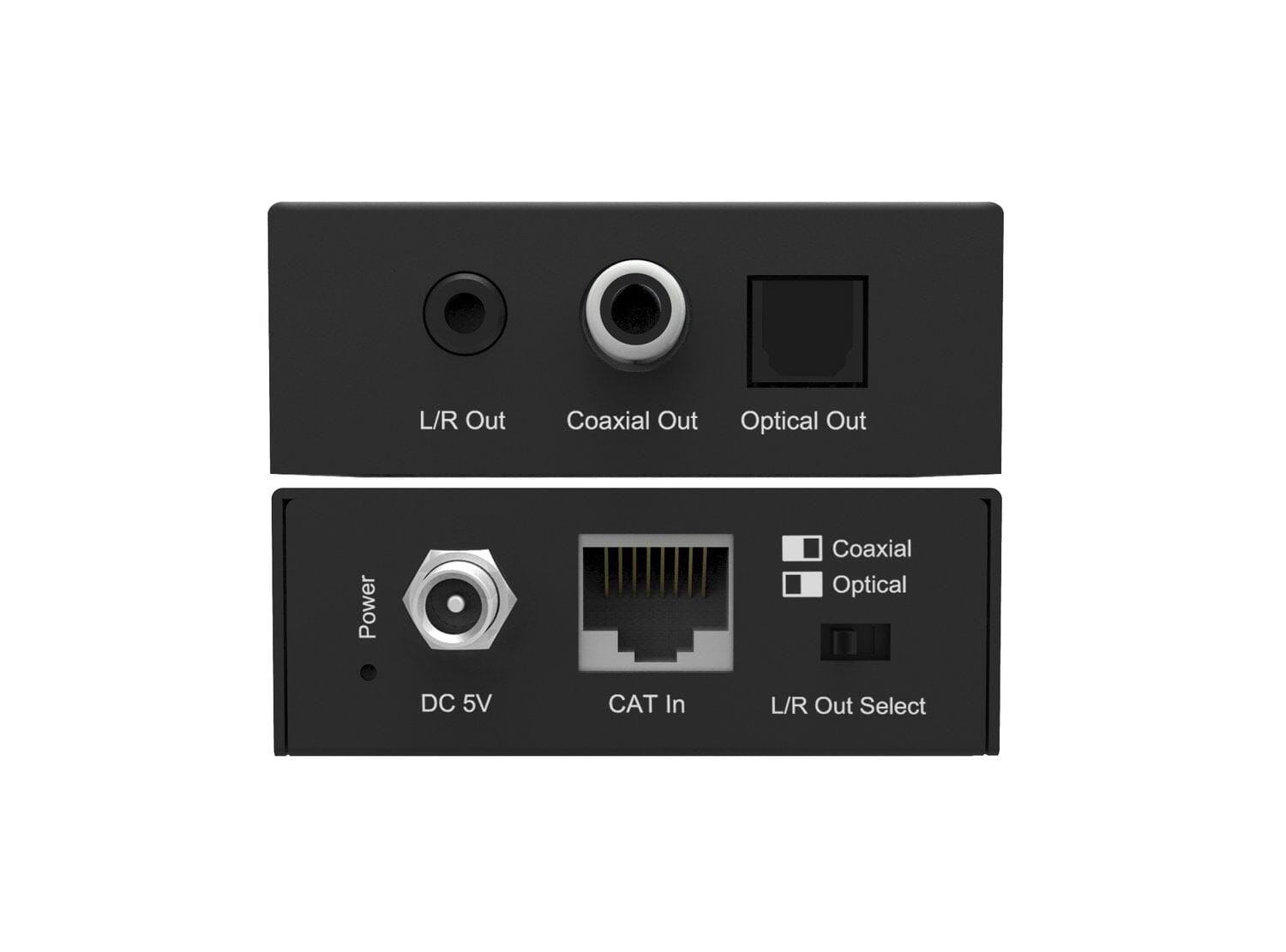

This Audio over CAT 5e/6 Extender can transmit digital optical and coaxial signals concurrently up to a distance of 300m (48kHz), 150m (96kHz), or 100m (192kHZ). The receiver’s built-in DAC converts either of the digital (coax/toslink optical) signals to a 2CH analog stereo audio output. Support one-way POC function (the receiver will power the transmitter over the CAT cable).

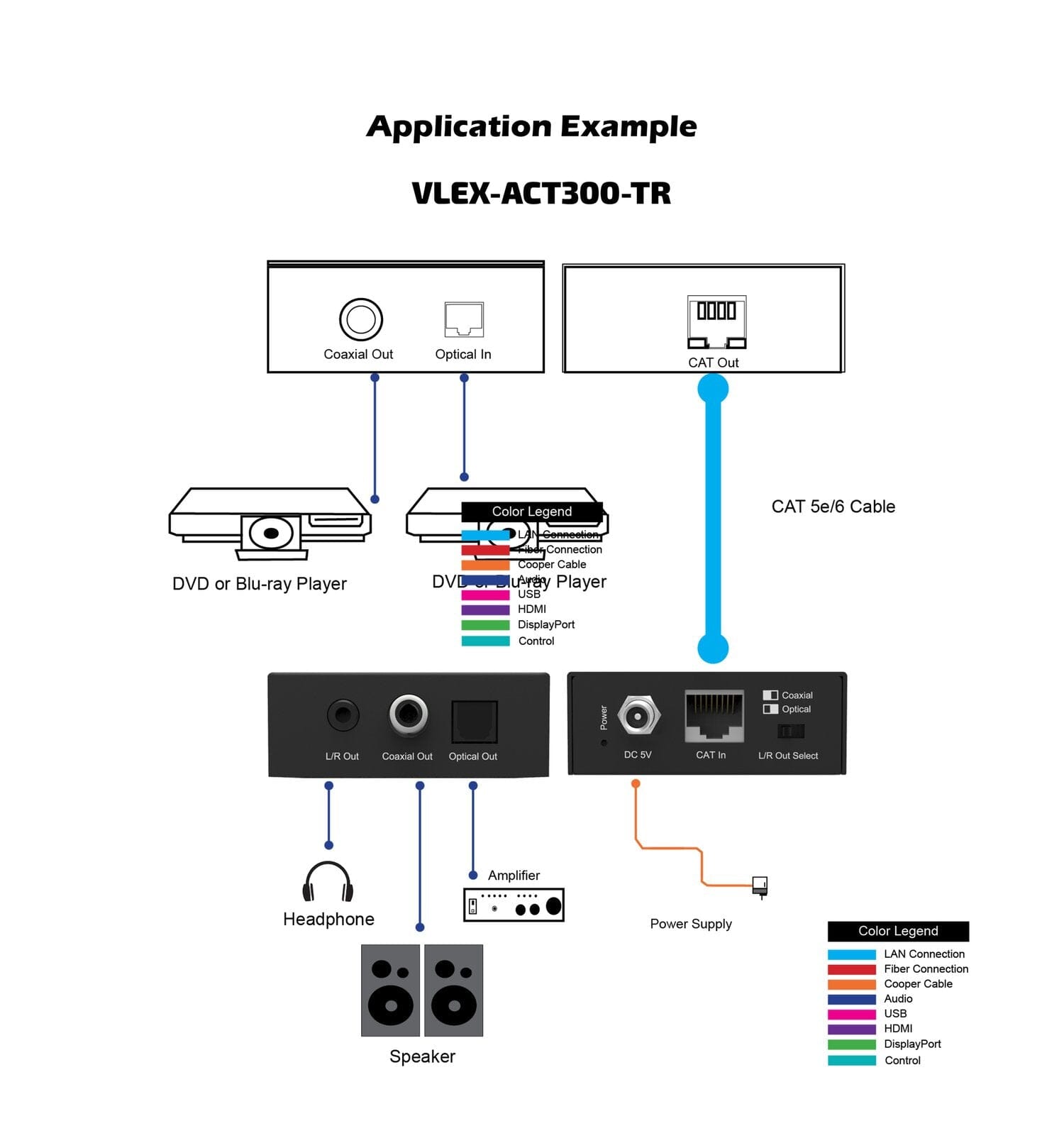

This is a fantastic plug-and-play solution for sending optical audio from an HDTV back to an amplifier, AVR, or multi-room audio system which requires an analog stereo audio input signal.

Featured Highlights

• Extend optical and coaxial digital audio signals up to a distance of 300m (48kHz), 150m (96kHz) or 100m (192kHZ) over a single CAT cable

• The optical and coaxial digital signals can be distributed at the same time

• Built-in DAC (Digital to Analog Converter) converts either optical or coaxial digital (selectable) to analog stereo left/right audio output (PCM only)

• Supports sample rates 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, and 192 kHz up to a 24-bit resolution

• Supports LPCM, DTS, Dolby Digital, and Dolby Digital Plus when used as a straight digital in/digital out extender

• Supports one-way POC function. The transmitter is powered by the receiver through the CAT cable.

• Plug-and-play

• Small compact size

• Ultra-low jitter and high-fidelity design

Specifications
