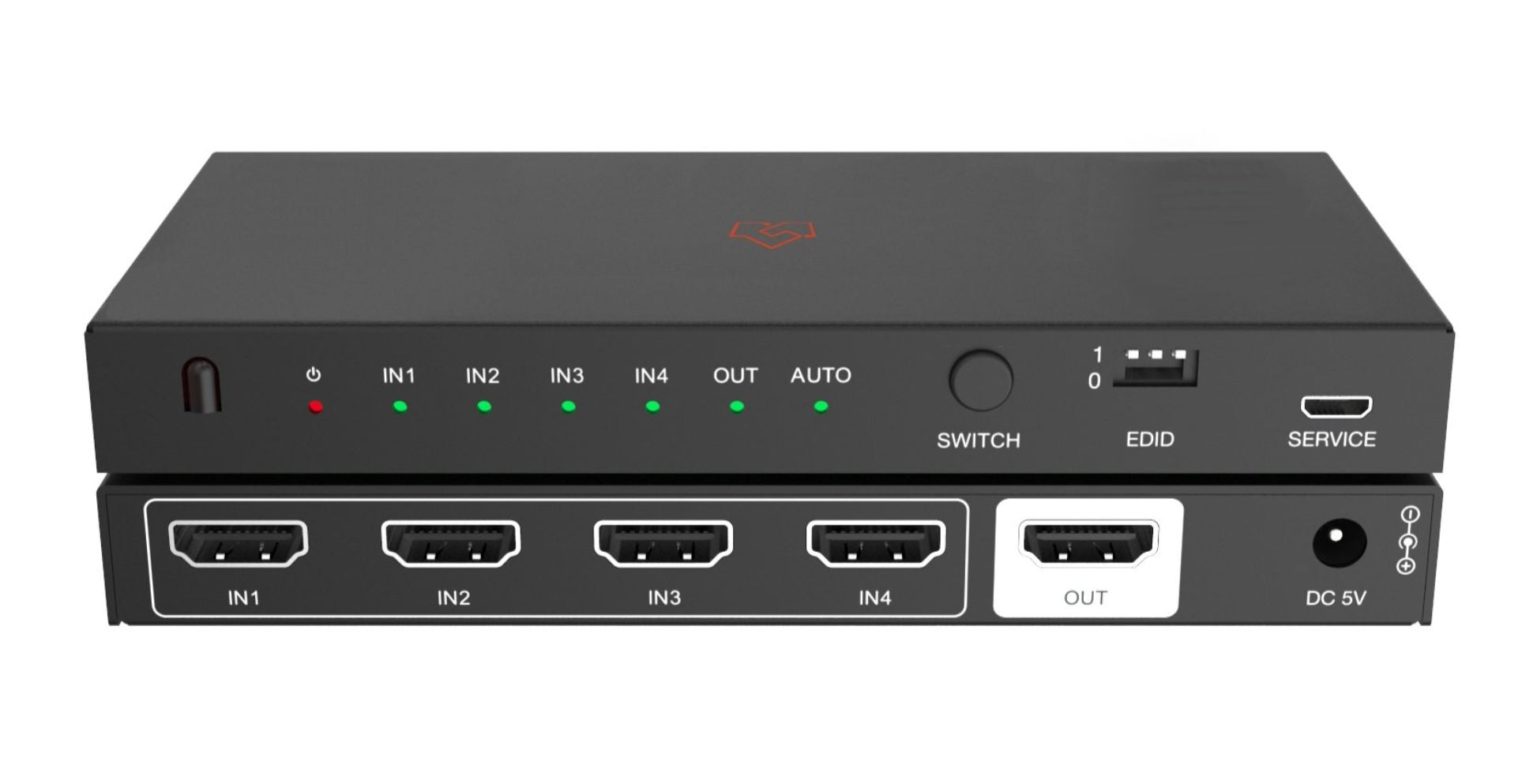

This 48Gbps 4x1 HDMI Switcher is an ultrathin auto switcher, with four HDMI video inputs and one HDMI output. The video resolutions is up to 8K@60Hz 4:2:0 12bit. It supports HDR 10, HDR 10+, Dolby Vision and multichannel audio format. Built-in EDID DIP switch supports advanced EDID management. Furthermore, the firmware update at USB Type C port is supported.
Featured Highlights
-
HDMI 2.1 and HDCP 2.3 compliant
-
Support 48Gbps FRL and 18Gbps TMDS video bandwidth
-
8K@60Hz 4:2:0 12bit, 8K@30 4:4:4 12bit, 4K@120Hz 4:4:4 12bit video support
-
Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
-
HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM are supported
-
Support HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master Audio
-
4 x HDMI inputs routed to 1 x HDMI output
-
Control via front panel button and IR remote
-
Support auto input switching and manual input switching
-
Advanced EDID management
-
CEC control from TV at output to source at input
Specifications
| Technical | ||||
|---|---|---|---|---|
| HDMI Compliance | HDMI 2.1 | |||
| HDCP Compliance | HDCP 2.3 | |||
| Video Bandwidth | 48Gbps FRL and 18Gbps TMDS | |||
| Video Resolution | Up to 8K@60Hz 4:2:0 12bit, 8K@30 4:4:4 12bit, 4K@120Hz 4:4:4 12bit | |||
| Color Depth | 8/10/12-bit | |||
| Color Space | RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 | |||
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD | |||
| Connection | ||||
| Input | 4 × HDMI IN [Type A, 19-pin female] | |||
| Output | 1 × HDMI OUT [Type A, 19-pin female] | |||
| Control | 1 × SERVICE [USB Type C, Update port] | |||
| Mechanical | ||||
| Housing | Metal | |||
| Color | Black | |||
| Dimensions | 145mm (W) × 68mm (D) × 18mm (H) | |||
| Weight | 258g | |||
| Power Supply | Input: AC 100~240V 50/60Hz, Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
|||
| Power Consumption | 3W (Max) | |||
| Operating Temperature | 32 - 104°F / 0 - 40°C | |||
| Storage Temperature | -4 - 140°F / -20 - 60°C | |||
| Relative Humidity | 20 - 90% RH (No condensation) | |||
| Recommended HDMI Cable | ||||
| Video Resolution | 8K60/8K30/4K120 | 4K60 | 1080P | |
| HDMI Cable Length (HDMI IN / OUT) |
2m/6.6ft | 5m/16ft | 15m/49ft | |
| The use of “Premium High Speed HDMI” cable is highly recommended. | ||||
