VigilLink 4x1 HDMI 2.0 Switch with Audio eARC 18Gbps / VLSW-41H20ER

This 18Gbps HDMI 4x1 Switcher can switch any four HDMI sources to one HDMI display. It supports video resolution up to 4K2K@60Hz RGB/YCbCr 4:4:4. It supports ARC/eARC function (only for the “INPUT 1(eARC)” port), 10bit HDR and CEC function. It also supports advanced EDID management (AUTO/2.0CH/5.1CH/7.1CH selectable). Flexible control via front panel buttons and IR remote control.

Featured Highlights

• HDMI 2.0b, HDCP 2.2 / 1.x, and DVI 1.0 compliant

• Video resolution up to 4K2K@60Hz RGB/YCbCr 4:4:4

• Supports 18Gbps video bandwidth

• Supports 3D, HDR, HDR10, HDR10+, Dolby Vision pass-through

• Supported audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

• Supports auto/manual switching mode for input source

• Supports ARC/eARC function

• Supports advanced EDID management (AUTO/2.0CH/5.1CH/7.1CH selectable)

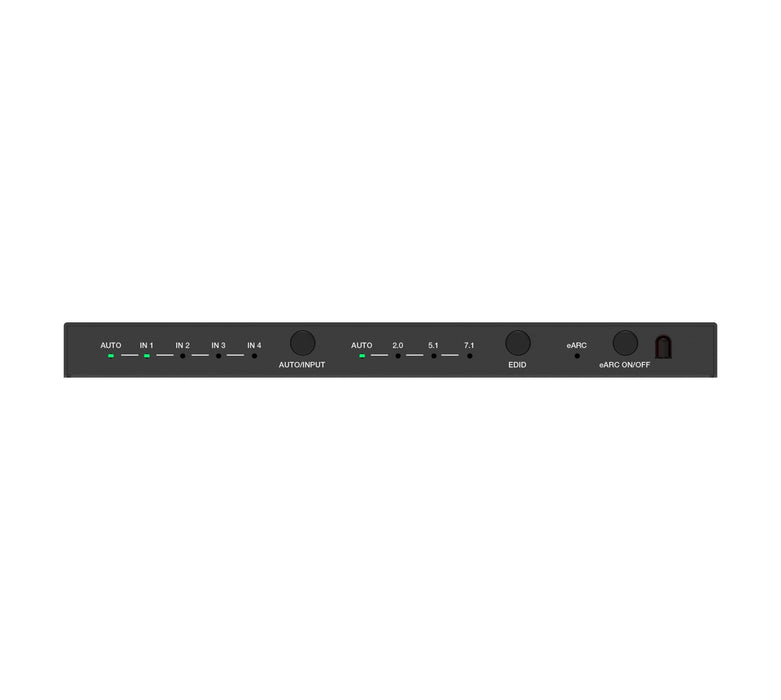

• Flexible control via front panel buttons or IR remote control

Specifications
