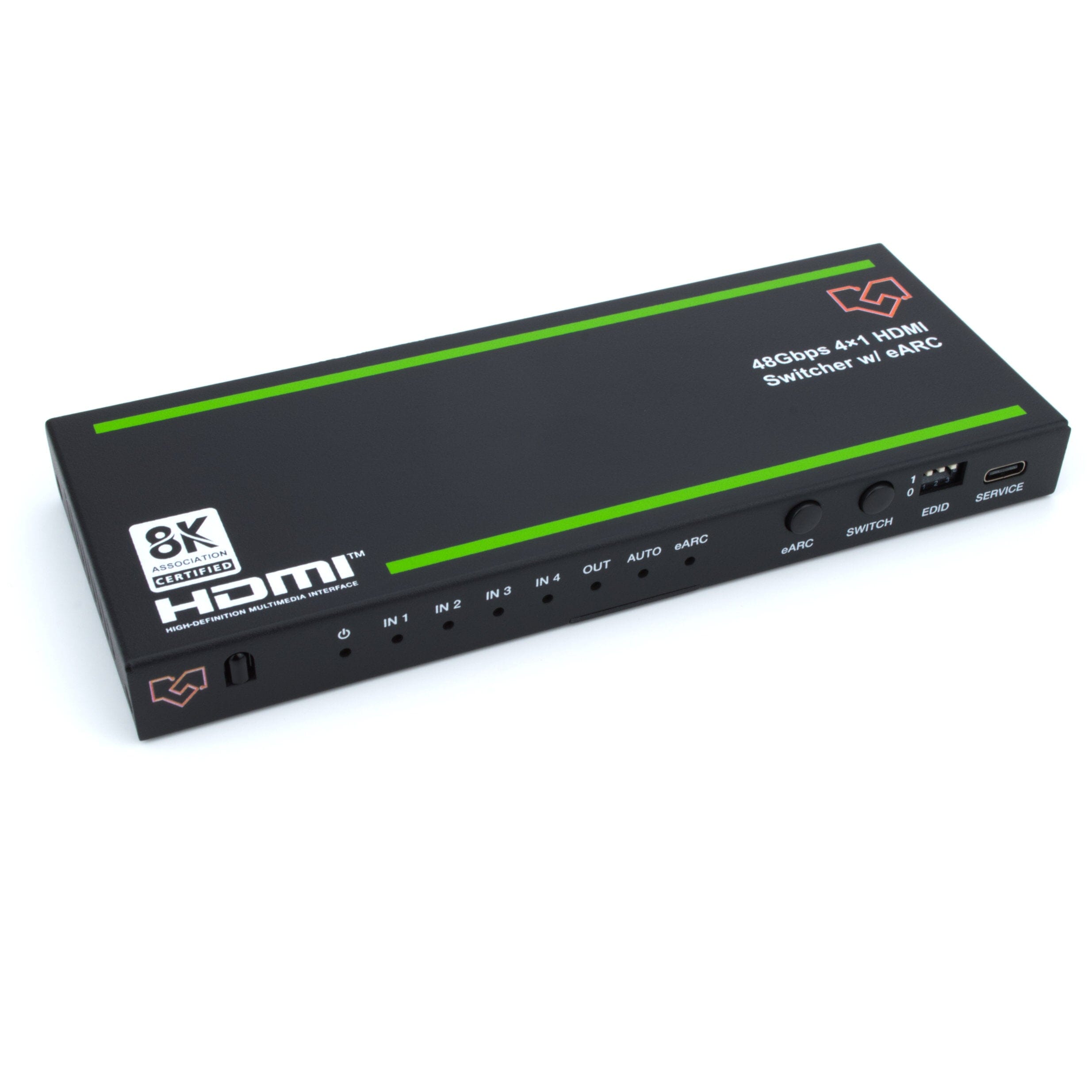

This 8K HDMI 4x1 Switcher can switch any of the four HDMI source signals to one HDMI display, with video resolution up to 8K@60Hz 4:2:0. It supports advanced EDID management, CEC control, ARC/eARC and audio de-embedded function (Output through the optical and analog audio port). Furthermore, firmware upgrade via USB Type C port is supported. This multi-functional product can be widely applied in scenarios of demonstration, video conference, multimedia teaching and other occasions requiring for big-screen demonstration.
Featured Highlights
-
HDMI 2.1 and HDCP 2.3 compliant
-
Support 48Gbps FRL and 18Gbps TMDS video bandwidth
-
Video resolution is up to 8K@60Hz 4:2:0 12bit, 8K@30Hz 4:4:4 12bit, 4K@120Hz 4:4:4 12bit
-
HDMI 2.1 protocol: VRR, ALLM, QMS, QFT, SBTM are supported
-
Supports HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
-
Supports HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through
-
Features 4 x HDMI inputs routed to 1 x HDMI output
-
Support HDMI input and TV eARC audio de-embedded to SPDIF and L/R audio output
-
Support HDMI input and TV eARC audio to output to SONOS ARC & Beam or any eARC soundbar
-
Support CEC control from TV at output to source at input
-
Support CEC volume control from TV to any eARC sound system
-
Support advanced EDID management
Specifications
| Technical | ||||
|---|---|---|---|---|
| HDMI Compliance | HDMI 2.1 | |||
| HDCP Compliance | HDCP 2.3 | |||
| Video Bandwidth | 48Gbps FRL and 18Gbps TMDS | |||
| Video Resolution | Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit | |||
| Audio/ Video Latency | No Latency | |||
| Color Depth | 8/10/12-bit | |||
| Color Space | RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 | |||
| Audio Formats |
HDMI Input/Output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD eARC Audio Out: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD Audio De-embedded Output: Optical: LPCM 2.0CH/Dolby/DTS 5.1CH Analog: LPCM 2.0CH |
|||
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) | |||
| Connection | ||||

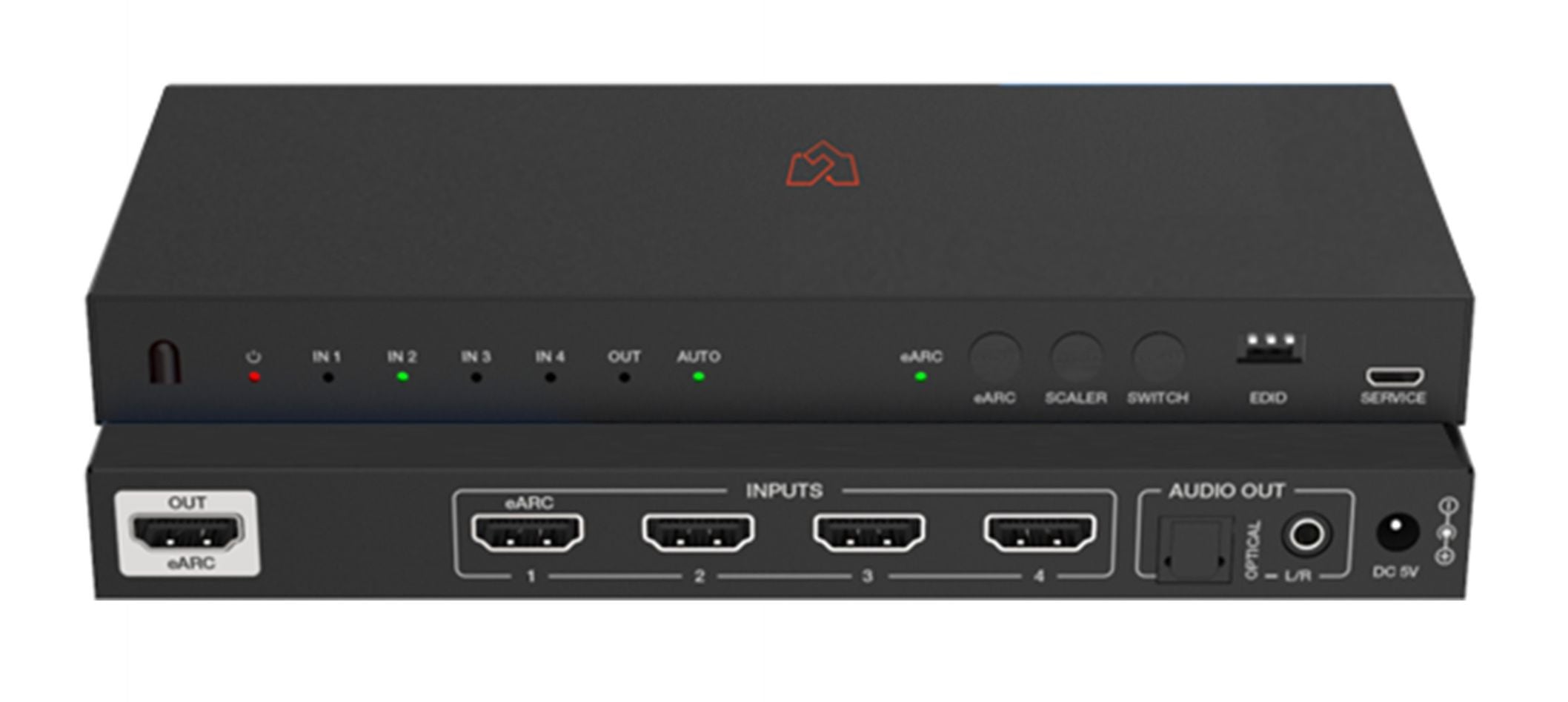

| Input | 4 × HDMI IN [Type A, 19-pin female] | |||
| Output | 1 × HDMI OUT [Type A, 19-pin female] 1 × OPTICAL [S/PDIF] 1 × L/R [3.5mm Stereo Mini-jack] |
|||
| Control | 1 × SERVICE [USB Type C, Update port] | |||
| Mechanical | ||||
| Housing | Metal enclosure | |||
| Color | Black | |||
| Dimensions | 176mm (W) × 68mm (D) × 18mm (H) | |||
| Weight | 315g | |||
| Power Supply | Input: AC100-240V 50/60Hz, Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
|||
| Power Consumption | 2.5W (Max) | |||
| Operating Temperature | 32 - 104°F / 0 - 40°C | |||
| Storage Temperature | -4 - 140°F / -20 - 60°C | |||
| Relative Humidity | 20 - 90% RH (No condensation) | |||
| Recommended HDMI Cable | ||||
| Video Resolution | 8K | 4K60 | 4K24 | 1080P |
| HDMI Cable Length (HDMI IN / OUT) |
2m/6.6ft (Ultra HDMI 2.1) |
8m/26f | 12m/39ft | 15m/49ft |
| The use of the “Premium High-Speed HDMI” is highly recommended. | ||||
