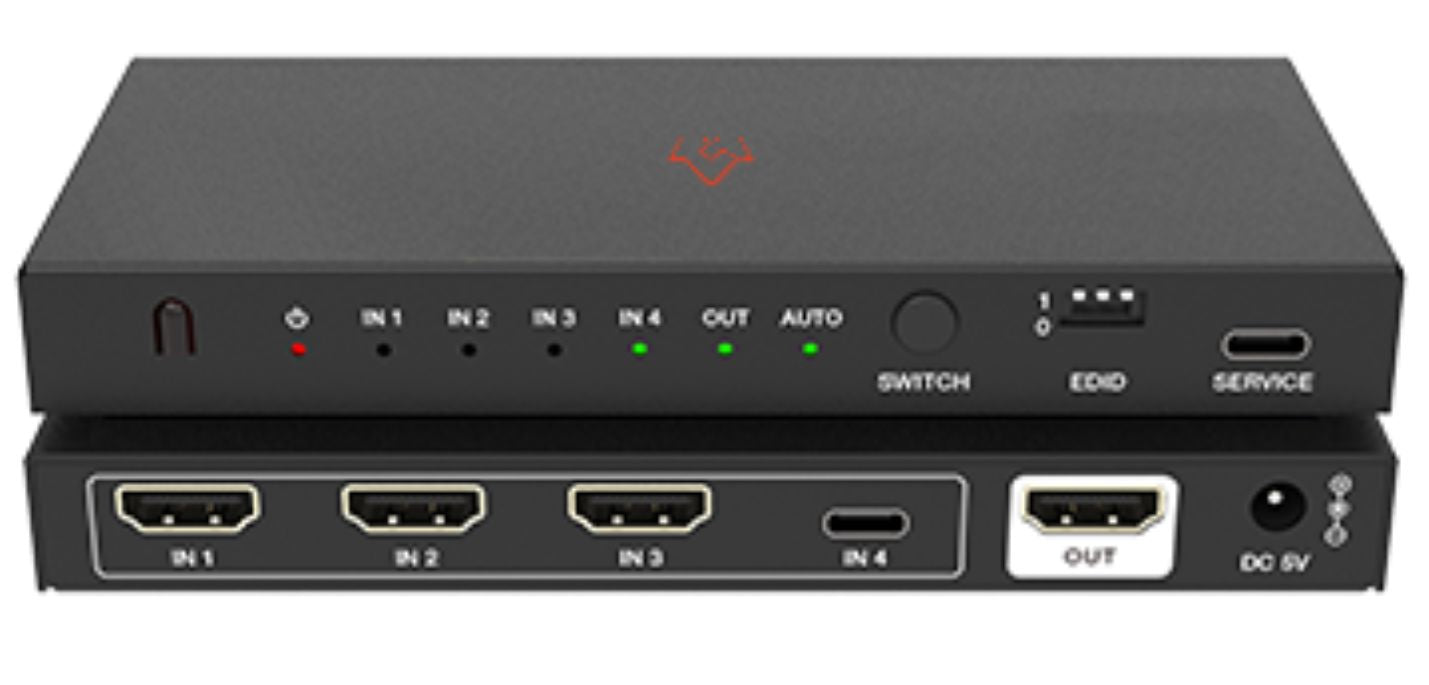

The 48Gbps 4×1 Switcher is an ultrathin, high-performance auto switcher designed for seamless video and audio connectivity. It offers three HDMI video inputs, one USB-C input, and one HDMI output, providing versatile compatibility for modern AV setups.
This switcher supports impressive video resolutions of up to 8K at 60Hz with 4:2:0 chroma subsampling and 12-bit depth via HDMI, as well as 8K at 30Hz with 4:2:2 chroma subsampling and 10-bit depth via USB-C. Additionally, it is compatible with HDR10, HDR10+, Dolby Vision, and multichannel audio formats, ensuring an exceptional viewing and listening experience.
The device features built-in EDID management, which can be easily configured using a 3-pin DIP switch located on the front panel. The EDID information is conveniently displayed on-screen, simplifying setup and optimization. Firmware updates are supported via the service port, allowing the switcher to stay up-to-date with the latest technology enhancements.
Designed for reliability and performance, this switcher is an excellent solution for advanced AV installations requiring top-tier connectivity and functionality.
Featured Highlights
-
DP 1.4 and HDCP 2.3 compliant
-
Support HDMI video bandwidth up to 48Gbps FRL and 18Gbps TMDS
-
Support HDMI video resolution up to 8K@60Hz 4:2:0 12-bit, 8K@30 4:4:4 12-bit, 4K@120Hz 4:4:4 12-bit, as specified in HDMI 2.1
-
Support USB-C video bandwidth up to 32Gbps
-
Support USB-C video resolution up to 8K@30Hz 4:2:2 10-bit, 4K@120Hz 4:2:2 10-bit
-
Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
-
HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, and SBTM are supported
-
LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through
-
3× HDMI and 1× USB-C inputs routed to 1× HDMI output
-
Control via the front panel button and IR remote
-
Support auto input switching and manual input switching
-
CEC control from TV at output to source at input
-
Advanced EDID management
Specifications
| Technical | ||||
|---|---|---|---|---|
| HDMI Compliance | HDMI 2.1 | |||
| HDCP Compliance | HDCP 2.3 | |||
| DP Compliance | DP 1.4 | |||
| Video Bandwidth | HDMI: Up to 48Gbps FRL and 18Gbps TMDS USB-C: Up to 32Gbps |
|||
| Video Resolution | HDMI: Up to 8K@60Hz 4:2:0 12-bit, 4K@120Hz 4:4:4 12-bit USB-C: Up to 8K@30Hz 4:2:2 10-bit, 4K@120Hz 4:2:2 10-bit |
|||
| Color Depth | 8/10/12-bit | |||
| Color Space | RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 | |||
| HDMI Audio Formats | HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos,DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
|||
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
|||
| Connection | ||||
| Input | 3 × IN [HDMI Type A, 19-pin female] 1 × IN [USB Type C, 24-pin female] |
|||
| Output | 1 × OUT [HDMI Type A, 19-pin female] | |||
| Control | 1 × SERVICE [USB Type C, update port] 1 × IR Receive Window |
|||
| Mechanical | ||||
| Housing | Metal | |||
| Color | Black | |||
| Dimensions | 145mm (W) × 68mm (D) × 18mm (H) | |||
| Weight | 258g | |||
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
|||
| Power Consumption | 2.25W (Max) | |||
| Operating Temperature | 32 - 104°F / 0 - 40°C | |||
| Storage Temperature | -4 - 140°F / -20 - 60°C | |||
| Relative Humidity | 20 - 90% RH (No condensation) | |||
| Recommended HDMI Cable | ||||
| Video Resolution | 8K | 4K60 | 4K24 | 1080P |
| HDMI Cable Length (HDMI IN / OUT) |
3m/10ft | 8m/26ft | 12m/39ft | 15m/49ft |
| The use of the “Premium High-Speed HDMI” is highly recommended. | ||||
