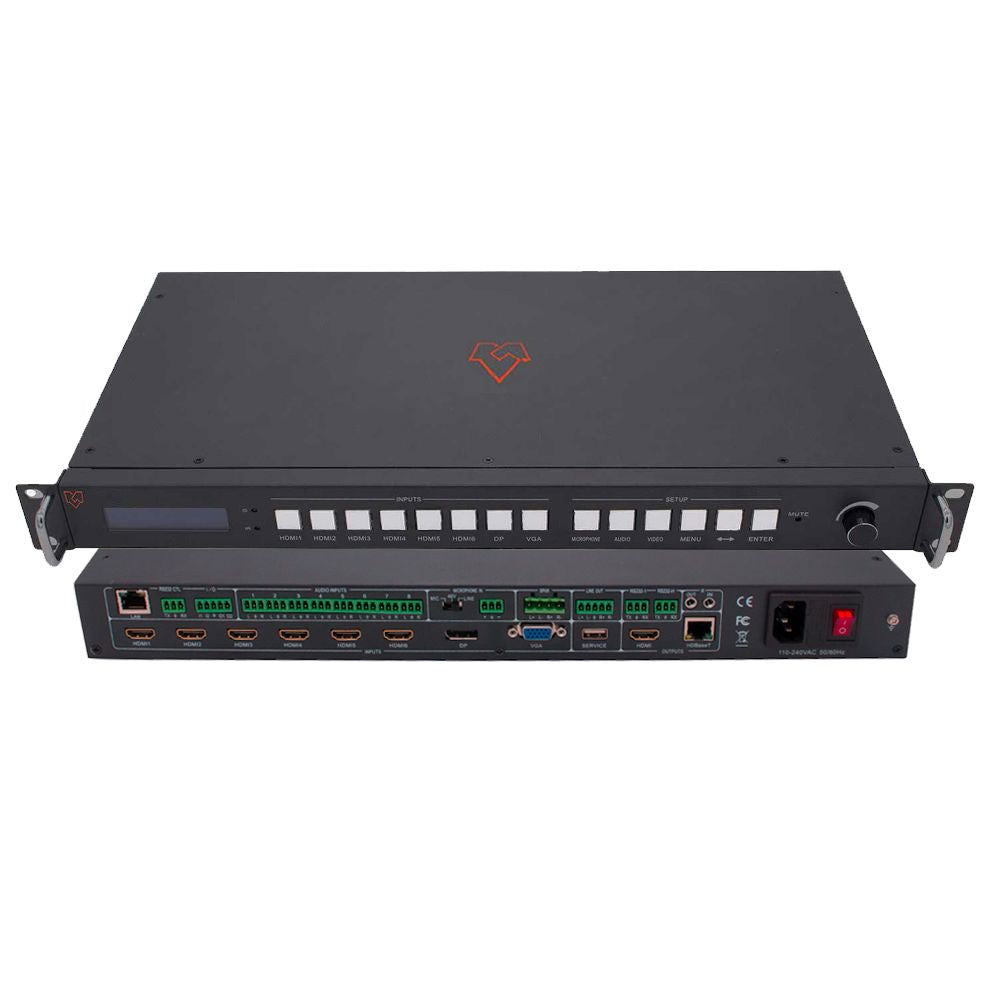

The 18Gbps 8x2 seamless UHD presentation switcher supports multi-format signal processing. Supported video resolution is up to 4K@60Hz 4:4:4. The product can scale the video, extract or embed the audio, and output the signal through 1 x HDMI port and 1 x HDBaseT port. For Audio output, there are 2x20W speaker output and balanced stereo audio output. The product supports EDID management.
Featured Highlights
HDMI 2.0, HDCP 2.2 and DP 1.2 compliant
Supports 18 Gbps video bandwidth
Supports video resolution up to 4K@60Hz 4:4:4
Mirrored output with HDMI and HDBaseT output ports
The HDBaseT port can extend the transmission distance up to 70 meters(1080P) and 45 meters(4K@60Hz)
Supports seamless switching
8 video inputs: 6 HDMI ports, 1 DP port, 1 VGA port
9 audio source selections (LR1 to LR8 and embedded audio) for HDMI/DP input
8 Audio source selections (LR1 to LR8 ) for VGA video input
Microphone mixing or independent function
3 Microphone modes: 48V (PHANTOM POWER) / MIC / LINE
2x20W speaker output and balanced audio output
Speaker and Microphone volume can be controlled by the front panel or PC Tool
Supports front panel, RS-232, TCP/IP (LAN 10M/100M) control
IR IN/OUT and RS-232 IN/OUT are superimposed on HDBaseT transmission
Supports EDID management
Additional IO function (2 outputs, 2 inputs)
Note: This source does not have seamless switching when VGA input is active.
Specifications
| Technical | |
|---|---|
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 |
| DP Compliance | DP 1.4 |
| Video Bandwidth | 18Gbps |
| Video Resolution | |
| Input Video Resolution | INPUTS: 800x600@60Hz,1024x768@60Hz, 1280x768@60Hz, 1280x800@60Hz,1280x1024@60Hz,1360x768@60Hz, 1366x768@60Hz,1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz,1680x1050@60Hz, 1920x1200@60Hz. 480p,576p,720p,1920x1080i,1920x1080p,3840x2160@ 30Hz/50Hz/60Hz. Note: This device does not support 4:2:0 color space |
| Output Video Resolution | Auto, 3840x2160@60Hz, 3840x2160@50Hz, 3840x2160@ 30Hz, 1920x1080@60Hz, 1920x1080@50Hz, 1280x720@ 60Hz, 1024x768@60Hz, 1360x768@60Hz,1600x1200@ 60Hz, 1920x1200@60Hz. |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 430mm (W)×220mm (D)×44mm (H) |
| Weight | 3.2Kg |
| Power Supply | AC 110 - 240V |
| Power Consumption | 60W (Max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 70°C / -4°F ~ 158°F |
| Relative Humidity | 10%~50% RH (non-condensing) |
