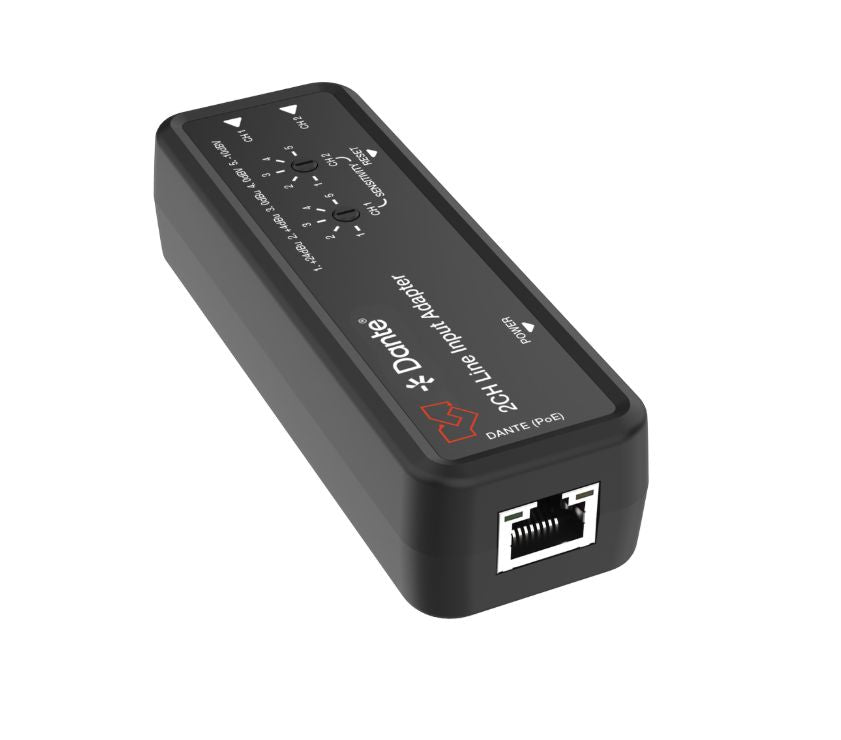

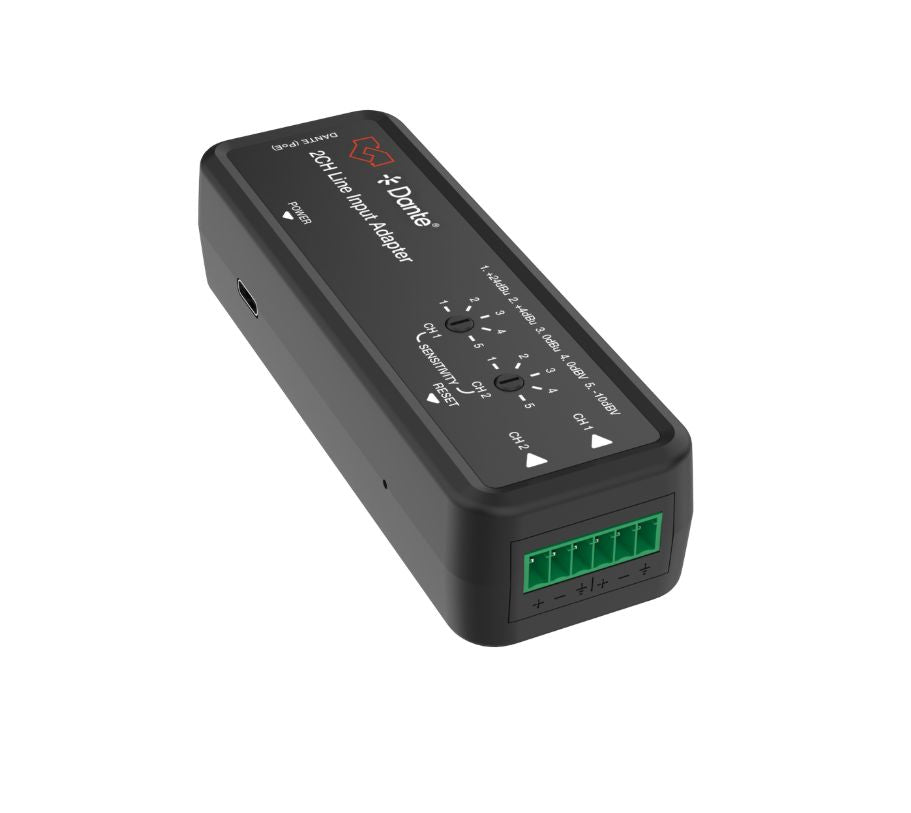

The VLDT-LA2DT Dante® 2CH Line Input Adapter is an audio transmitter based on the Dante® Ultimo 2x2 solution. It converts two-channel balanced/unbalanced analog audio into Dante® 2CH digital audio and transmits it to the receiving end through the network (Dante®). Analog audio input supports 5-level sensitivity adjustment.

The adapter supports the local USB-C port power supply and PoE function.

Featured Highlights

Two-channel analog audio to Dante® 2CH digital audio
Balanced/unbalanced analog audio input
Dante® audio sampling rate supports 44.1/48/88.2/96KHz@24bit
Dante® audio delay supports 1/2/5ms (configurable)
Analog audio input supports 5-level sensitivity adjustment (+24dBu, +4dBu, 0dBu, 0dBv, -10dBv)
Supports local USB-C port power supply and PoE function (Class 0 802.3af PoE)
Compact design for easy and flexible installation

Specifications

Technical
Audio Formats	LPCM 2.0
Frequency Response	20Hz to 20kHz (-/+0.5dB)
Dynamic Range	>100dB@0dBu, 1kHzA-weighted
Audio S/N Ratio	>100dB@0dBu, 1kHzA-weighted
Audio THD+N	< 0.01% at +4dBu, 1KHz
Audio Output Sync Delay	<10ms
Audio Latency	Configurable Dante® device latency (Supports 1, 2 or 5ms configurable using Dante ®Controller)
Connection

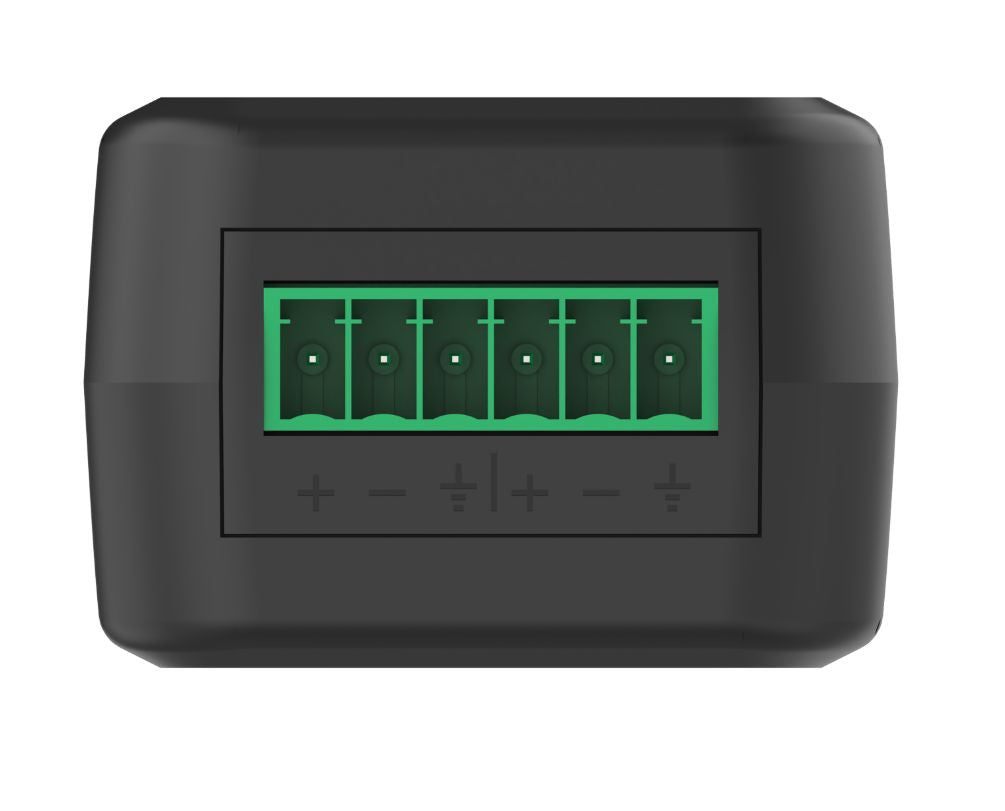

Input Ports	1x CH1/CH2 LINE IN [6pin-3.5mm phoenix connector] 1x POWER [USB-C power and firmware update port, 12-pin female]

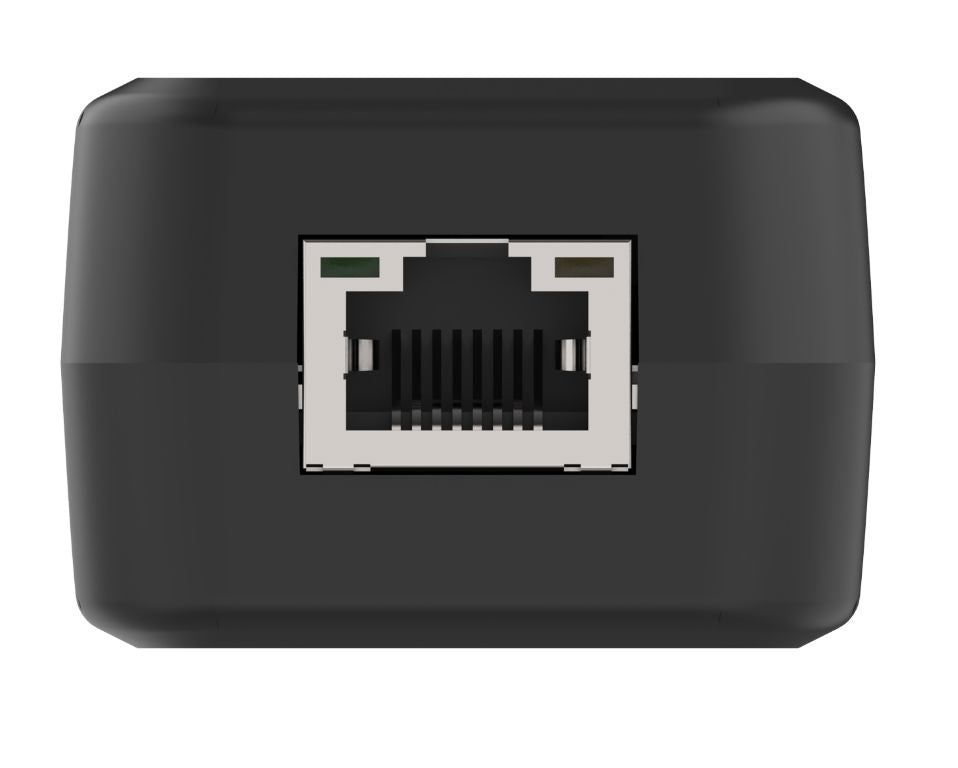

Output Ports	1x DANTE [RJ45 connector, PoE]
Control Ports	1x RESET button [System reboot button] 2x SENSITIVITY knob [5-level dip switch]
Mechanical
Housing	Plastic Enclosure
Color	Black
Dimensions	115mm [L] × 40mm [W] × 28mm [H]
Weight	0.09g
Power Supply Voltage	5V (USB) or POE
Power Supply Current Draw	2W
Operating Temperature	0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature	-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity	20 - 80% RH (relative humidity, non-condensing)
ESD Protection	IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
