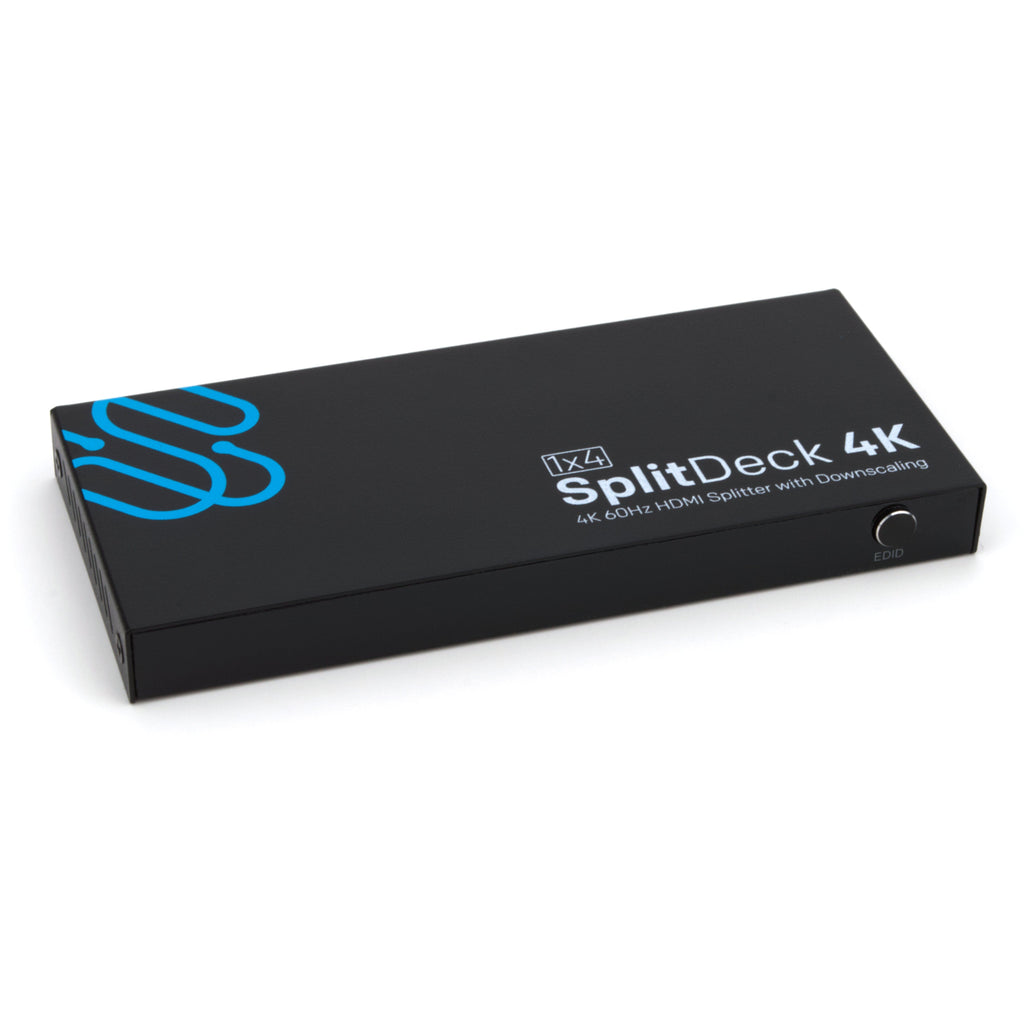

The Sewell SplitDeck 4K 1x2 or 1x4 HDMI splitters let you output your HDMI signal to two or four displays or projectors. They supports 4K Ultra HD (4K@60Hz) and HDR (High Dynamic Range) video for the best picture possible. The SplitDeck 4K is also backwards compatible with previous HDMI revisions and supports 1080p and 720p resolution devices. It features three different EDID modes: Auto, Copy, and Downscaler to provide the best possible compatibility and picture quality for your setup.
NOTE: Requires 5V 1A+ power supply not included. Can be plugged into most standard USB power supplies.
Includes: Splitter, USB-C Power Cable, User Manual, Rubber Feet.
Features
-
Supports three different EDID modes: Auto, Copy, and Downscaler
The Auto mode helps your source device pick a resolution that will work with all displays.
The Copy mode provides your source device with the resolution information of the display connected to output 1. The splitter will send the signal it receives from the source device to any compatible displays. For any displays incompatible with the source signal the splitter will attempt to downscale the video signal to a resolution compatible with all secondary displays while keeping the original audio signal.
The Downscaler mode lets you output a 4K60Hz signal to any compatible 4K display. For any remaining FHD (1080p) displays or 4K displays incompatible with the original signal the splitter will downscale to the highest resolution and color format that will work for all these displays. To ensure that all 4K displays receive a 4K60Hz signal you may need to set your output color format to YUV 4:2:0 rather than 4:4:4 as many 4K displays do not support 4:4:4. - Supports high resolution up to 4K@60Hz YUV 4:4:4
- Supports HDCP 2.2 and HDCP 1.4
- Supports High Dynamic Range (HDR) video
- Supports 3D video formats
- Supports 600MHz/6Gbps per channel (18Gbps all channels) bandwidth
- Supports 12bit per channel (36bit all channels) deep color
- Supports uncompressed audio formats such as LPCM
- Supports compressed audio formats such as DTS and Dolby Digital (including DTS-HD Master Audio™ and Dolby TrueHD)
D
David Henry Worked like a charm. Replaced an older version splitter that did not support 4k. Happy with the purchase
B
Bob Hicks An old splitter died due to a broken cable, this was a direct replacement, three tv’s back up and working as they should. I would buy again and highly recommend.
