EchoSplit, HDMI Splitter with Downscaling

$54.95
SKU SW-33063
Size

Description

The EchoSplit allows you to send an HDMI signal to two displays with different resolutions while still letting each display perform at its highest supported resolution.

Most HDMI splitters allow you to send a single HDMI signal and "Mirror" it to two or more displays. However, if one of the displays in the setup supports a lower resolution than the rest, then all of the other displays will get a lower resolution because the HDMI splitter can only send an identical resolution to all displays.

For example: If you have a 4k TV and a 1080p TV connected to a regular HDMI splitter, both TV's would only get 1080p video even if your source signal is 4k.

#1x4

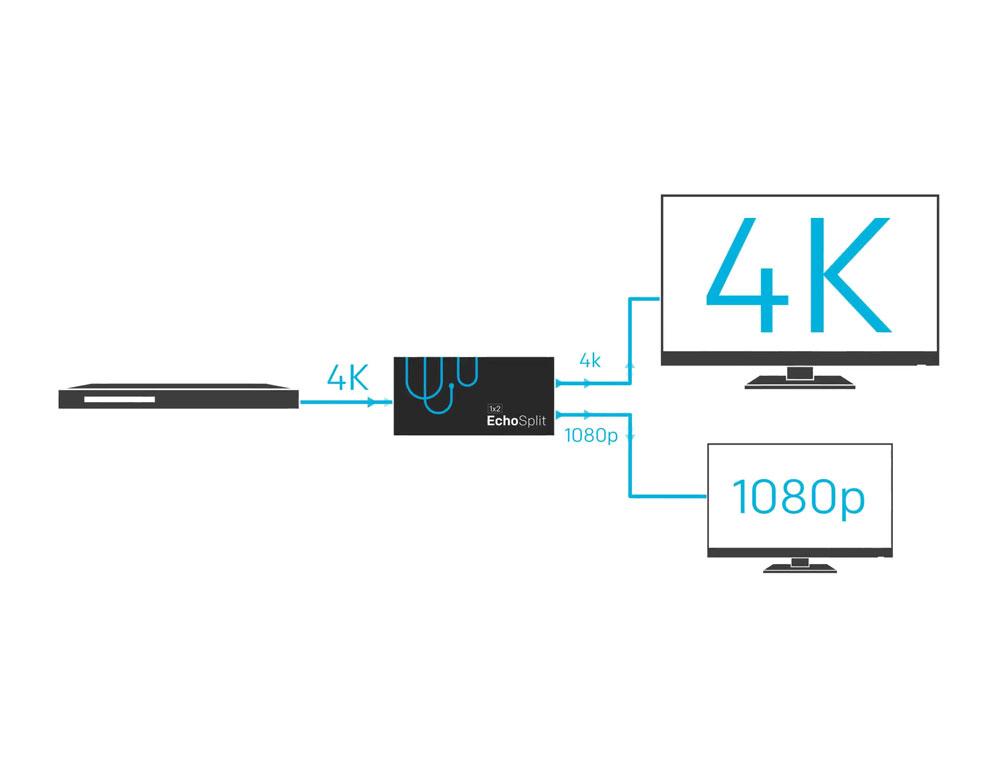

The EchoSplit solves this problem by sending each display the highest quality signal they can receive. For example: in the scenario described above, the EchoSplit would send a 4K signal to the 4K display and a 1080p signal to the 1080p display.

#1x2


The EchoSplit solves this problem by sending each display the highest quality signal they can receive. For example: in the scenario described above, the EchoSplit would send a 4K signal to the 4K display and a 1080p signal to the 1080p display.

#all

Automatic Downscaling

The EchoSplit automatically detects which display supports the lower resolution and downscales the signal being sent to that display only, and sends the original 4k signal to the 4k display.

  • Output port 1 takes priority, so we recommend putting the 4K display on port 1 and the 1080p display on port 2.
  • Please enable HDCP 2.2 and any variation of "enhanced HDMI" mode on your HDMI port for the 4K display.
  • Changing of refresh rates is not supported.
  • #1x2

    Customer Reviews

    Based on 17 reviews
    76%
    (13)
    6%
    (1)
    0%
    (0)
    18%
    (3)
    0%
    (0)
    P
    P.L.
    Great Experience

    Everything arrived quickly as advertised and all worked perfectly. I’ll be a customer again. Thanks. Paul

    D
    D.C.
    Downscaling Splitter

    Works great.

    B
    B.
    doesn't work

    Input is DIrecTV that can do 1080p. Output is a 720p projector. Connects briefly, then the receiver says HDCP not compatible.

    There are no links to documents about supported inputs/outputs on this page as the video says there are.

    This supports both 1080p and 720p, but it doesn't spoof or remove HDCP signals. Every display will still have to be HDCP enabled in order to work through this splitter.
    J
    J.O.
    HDMI Splitter

    Works great!!

    s
    s.
    Solved my problem

    Splitter works great. Great bargain that helps decrease cable bill.
