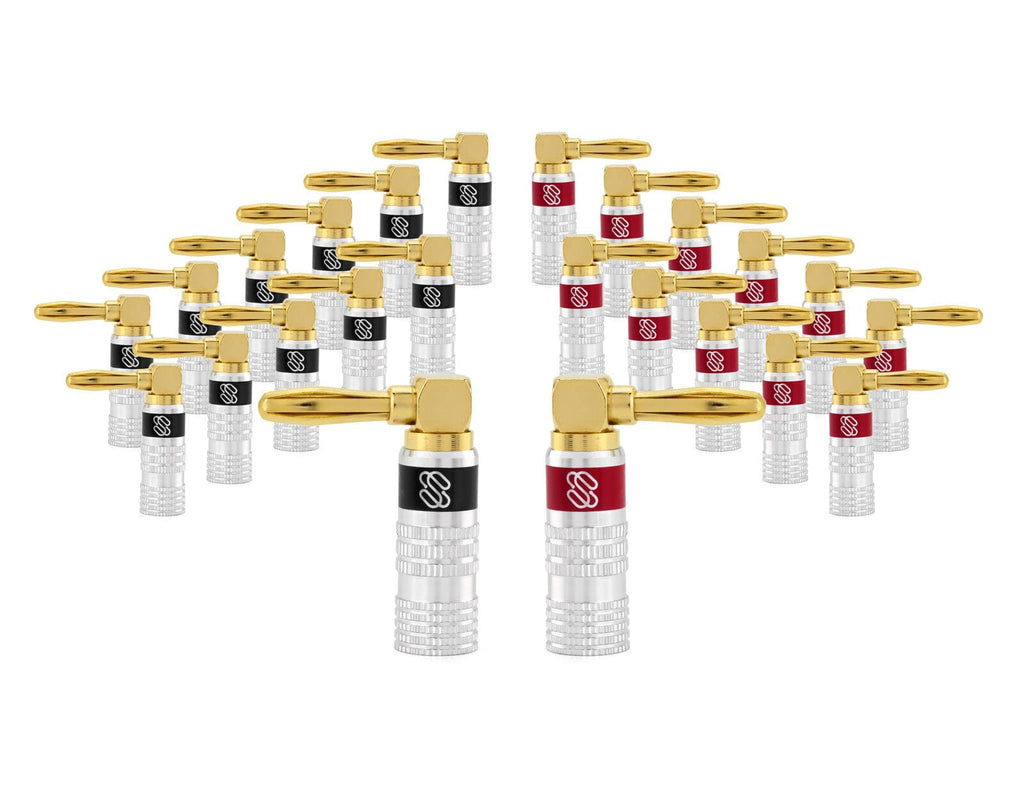

Silverback Banana Plugs with Right Angle Connectors-2024 Update
SKUSW-33182-06
Save up to 20%
Save 12%
Original price
$18.95
Original price
$18.95
-
Original price
$32.95
Original price
$18.95
Current price
$16.69
$16.69
-
$26.36
Current price
$16.69
| /
Related Products: See Also:
Our most secure banana plugs
Silverback banana plugs have the quality you’ve come to expect from Sewell, including gold plated connectors and a heavy-duty casing. What sets these banana plugs apart is the unique dual-screw lock design. This connection will secure your cable more than a single-screw or open-screw design. Dual-screw connectivity provides a secure connection, durability, and a clear signal transmission through the added contact. Silverback Banana Plugs accommodate up to 10 AWG speaker wire.
Easy to install:
Unscrew the casing to reveal the inner barrel.
Loosen the two small screws to make room for your speaker wire.
Slide the casing down the speaker wire before terminating the wire to the inner barrel.
Feed the speaker wire into the inner barrel of the banana plug.
Tighten the screws to secure the speaker wire.
Screw the outer casing back over the inner barrel.
The Right Angle connectors provide a cleaner install while reducing strain on cables and on the speaker wire terminals.
Improved Non-conductive clear coating on the aluminum sleeves
Mini Screwdriver included on the 6 and 12-packs
Straight vs Right-Angle
Both options are great depending on your setup and how close to the wall you need your speakers to be.
Why Banana Plugs?
This banana plug interface is found on audio/video receivers, speaker wall plates, and more. Banana plugs offer an alternative to inserting a bare speaker wire into your equipment. Bare wire connections tend to get pulled out or frizzy after time passes, are prone to corrosion, and are a hassle to insert onto the equipment. Banana plugs offer a quick and secure connection that is both reliable and makes future changes painless.
Specifications
Specifications
24K Gold Plating for Durability and Maximum Signal Transfer
Connectors are made with solid brass
Double Screws to Secure Speaker Wire
Maximum accepted AWG: 10 AWG (12 AWG recommended)
Maximum Jacket OD: 8.5mm (5/16th in)
Right Angle connectors to reduce strain on cables.
Dimensions
Total Length: 1 3/4in (45mm)
Plug Length 0.75in (19.5mm)
Plug diameter: 0.13-0.18in (3.4-4.7mm)
Outside Diameter (sleeve): 0.4in (10.5mm)
Inside Diameter (sleve): 0.34in (8.5mm)
Sleeve lenght: 1in (25.5mm)
Outside Diameter (connector): 0.3in (7.7mm)
Inside Diameter (connector): 0.17in (4.4mm)
Connector depth 0.59in (15mm)
Videos
Strength Test
We wanted to see how much weight a Silverback Banana Plug could hold. Watch this video to see the results.
