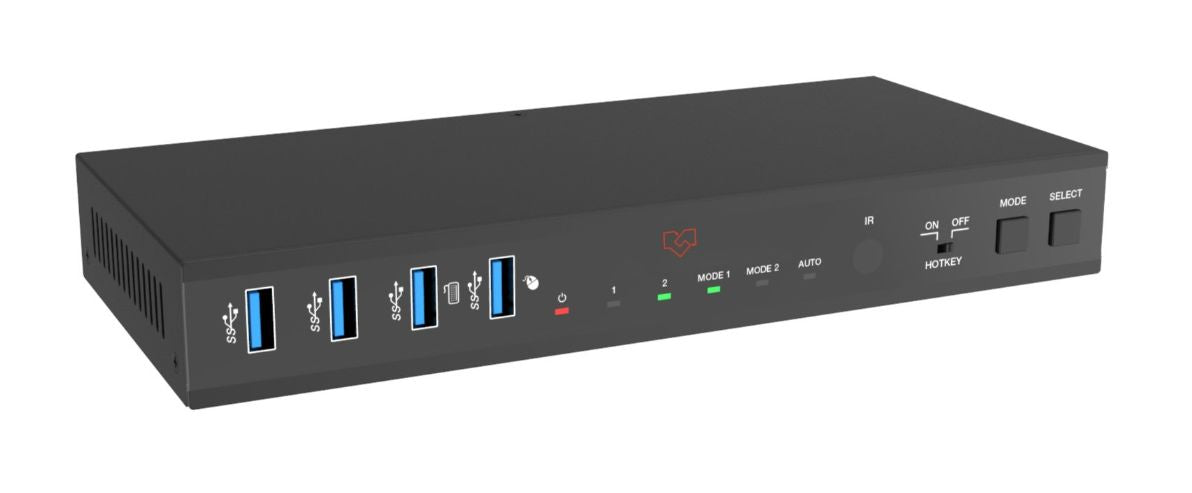

This is a 2x1 HDMI KVM Switcher with dual channel switching and hotkey switching. It supports HDMI 2.1 and HDCP 2.3 compatibility, supports resolutions up to 8K@60Hz 4:2:0 10bit, and can also transmit USB 3.0 signal up to 5Gbps for KVM function. It can share two monitors and USB devices between two PCs and supports two modes of operation.
The switcher features a virtual interaction function to automatically wake up the connected PC in standby mode, which can reduce the switching time. It also supports direct switching through buttons on the front panel, IR remote, and hotkeys through the keyboard/mouse connected to the special USB port. It provides a wide compatibility choice for different operating systems, such as Windows, Mac OS, and Linux, with no driver required and simple plug-and-play.
Featured Highlights
-
HDMI 2.1 and HDCP 2.3 compliant
-
Support Ultra-wide Screen, resolution up to 8K@60Hz, 4K@120Hz/144Hz, 1080P@240Hz
-
HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, and SBTM are supported
-
HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
-
Using only 1 set of keyboard, mouse, and monitor to control 2 computers
-
Support video fast switching and keyboard/mouse seamless switching
-
Each input port has an EDID emulator to provide the correct information for the PC
-
Support hot plug, disconnect, or connect devices to the KVM at any time
-
Switching via front panel buttons, keyboard/mouse hotkeys, and IR remote control
-
Support auto switching
-
Advanced hardware/software design and production ensure zero latency
-
The integrated USB 3.0 ports allow you to share USB peripherals like printer, scanner, webcam, and hard disk between computers with data transfer rates up to 5Gbp/s
-
Compact design for easy and flexible installation
Specifications
| Technical | |
|---|---|
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | 40Gbps |
| Audio Latency | No Latency |
| Video Latency | No Latency |
| Video Resolution | Up to 8K@60Hz, 4K@120Hz/144Hz, 1080P@240Hz |
| IR Level | 5Vp-p |
| IR Frequency | Fixed frequency 38KHz |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12bit |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Audio Formats |
HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD L/R OUT: PCM 2.0CH |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Input Port | 4 x HDMI input [Type A, 19-pin female] |
| Output Port | 2 x HDMI output [Type A, 19-pin female] 1 x L/R audio output [3.5mm Stereo Mini-jack] |
| Control ports | 1 x RS-232 [3pin-3.81mm phoenix connector] 1 x IR EXT [3.5mm Stereo Mini-jack] 2 x USB HOST [USB Type B] 4 x USB DEVICES [USB Type A] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 220mm [W] x 100mm [D] x 30mm [H] |
| Weight | 626g |
| Power Supply | Input: AC 100 - 240V 50/60Hz Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified) |
| Power Consumption | Typical value: 7.2W Standby mode: 0.72W |
| Operating Temperature | 32 - 104°F / 0 - 40°C |
| Storage Temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (No condensation) |
