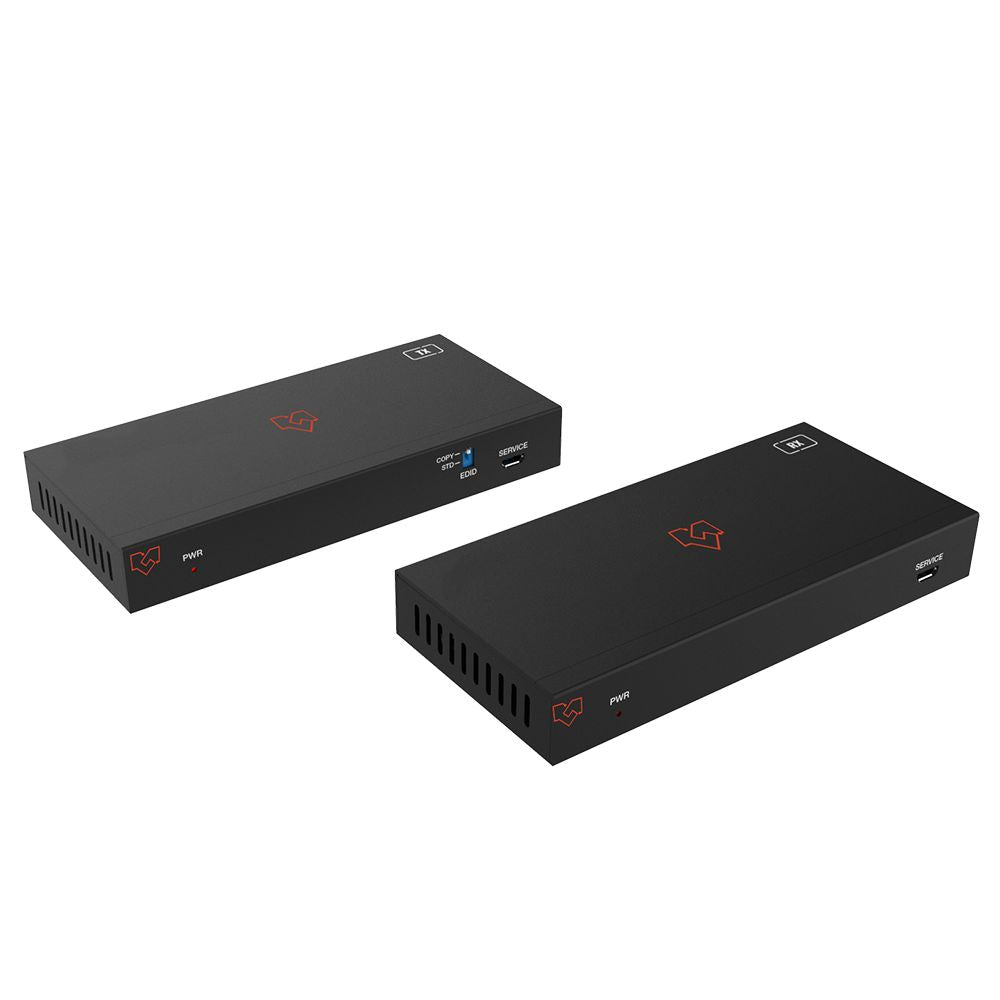

This 18Gbps HDBaseT Extender can extend the HDMI signal, bi-directional IR control signal, and USB KVM signal to a distance up to 150m via a single CAT6 cable. This product converts HDMI signal to standard HDBaseT signal and transmits it through a LAN cable. It can easily control the signal source devices or display devices from the remote end through a bi-directional IR signal pass-through function. Video resolution up to 4K2K@60Hz YUV 4:4:4. It also supports USB KVM and POC functions.
The extender can be widely used in other fields such as video conference systems, multimedia signal broadcasting, HDMI signal extension, etc.
Featured Highlights
-
HDMI2.0b, HDCP 2.2, and USB 1.1 compliant
-
Supports 18Gbps video bandwidth
-
Supports video resolution up to 4K2K@60Hz YUV 4:4:4
-
The transmission distance can be extended up to 492ft / 150m at the resolution of 1080P@60Hz, or 394ft / 120m at 4K2K@60Hz 4:4:4 via a single CAT6 cable
-
Supports bi-directional IR signal and USB KVM signal pass-through
-
Supports bi-directional POC (Power over Cable) function
-
Compact design for easy and flexible installation
Specifications
| Technical | |
|---|---|
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K2K@60Hz YUV 4:4:4 |
| USB Compliance | USB 1.1 |
| IR Level | 5Vp-p |
| IR Frequency | Wideband 20K-60KHz |
| Transmission Distance | 1080P@60--150m, 4K60 --120m |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 8-bit, 10-bit, 12-bit (1080P@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit, 10-bit, 12-bit (4K2K@30Hz) |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Audio Formats | LPCM 7.1CH, Dolby True HD, and DTS-HD Master |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4KV (Contact discharge) |
| Connection | |

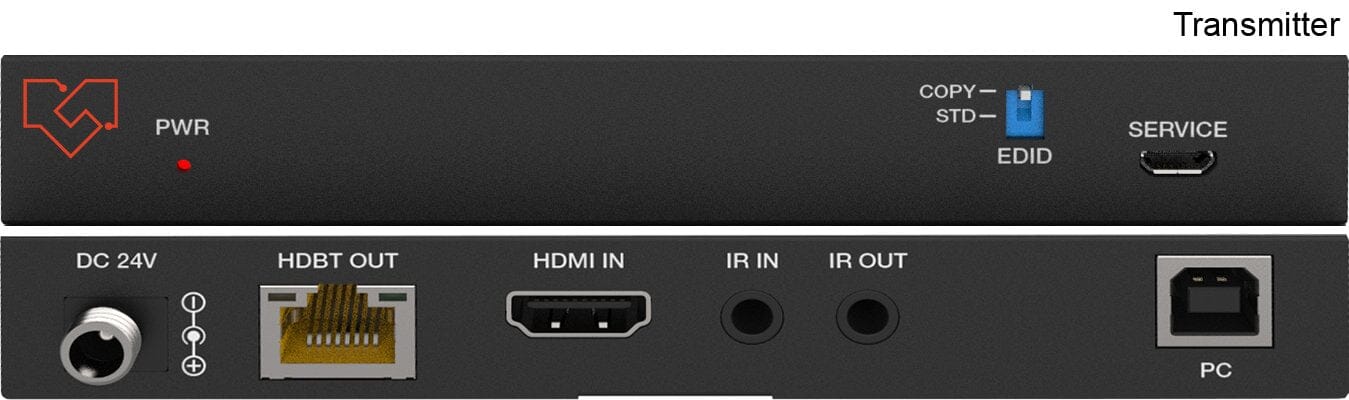

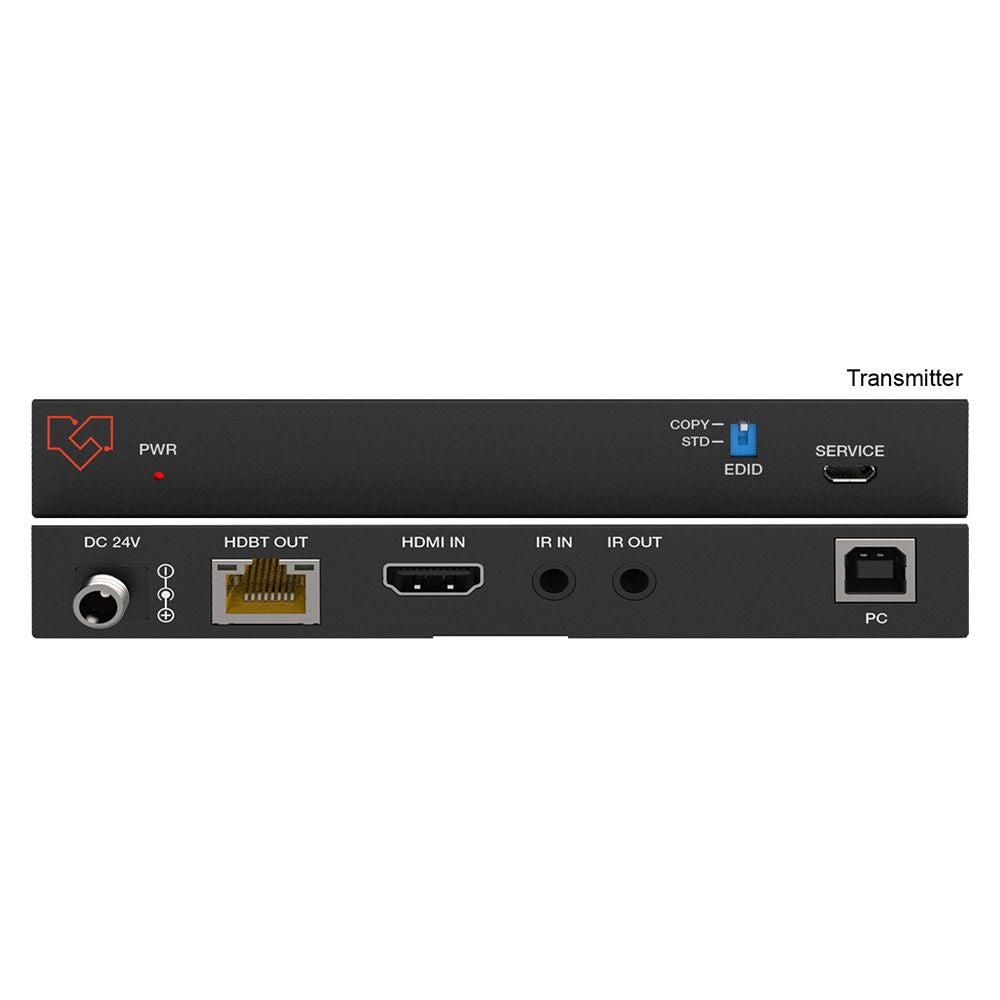

| Transmitter | Input: 1×HDMI IN [TypeA, 19-pin female] 1× IR IN [3.5mm Stereo Mini-jack] 1× SERVICE [Micro-USB jack] 1× USB [USB-B, 4-pin female] Output: 1× HDBT OUT [RJ45] 1× IR OUT [3.5mm Stereo Mini-jack] |

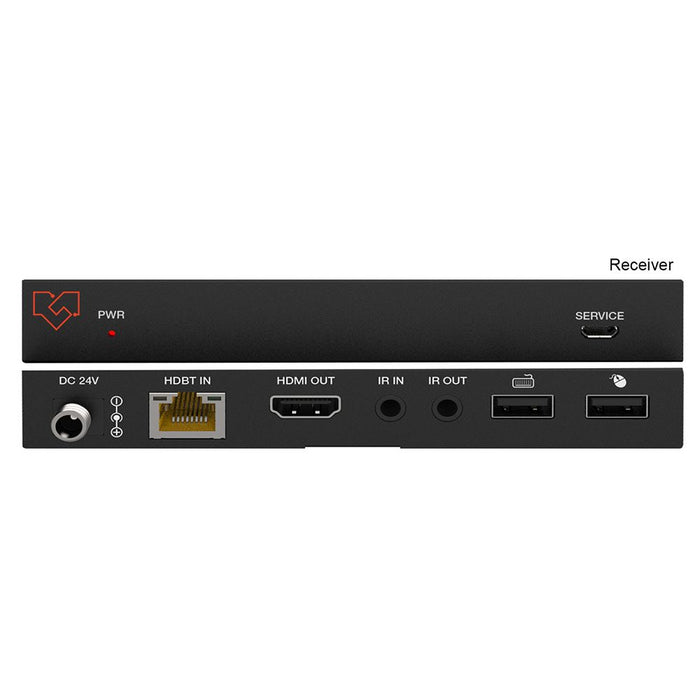

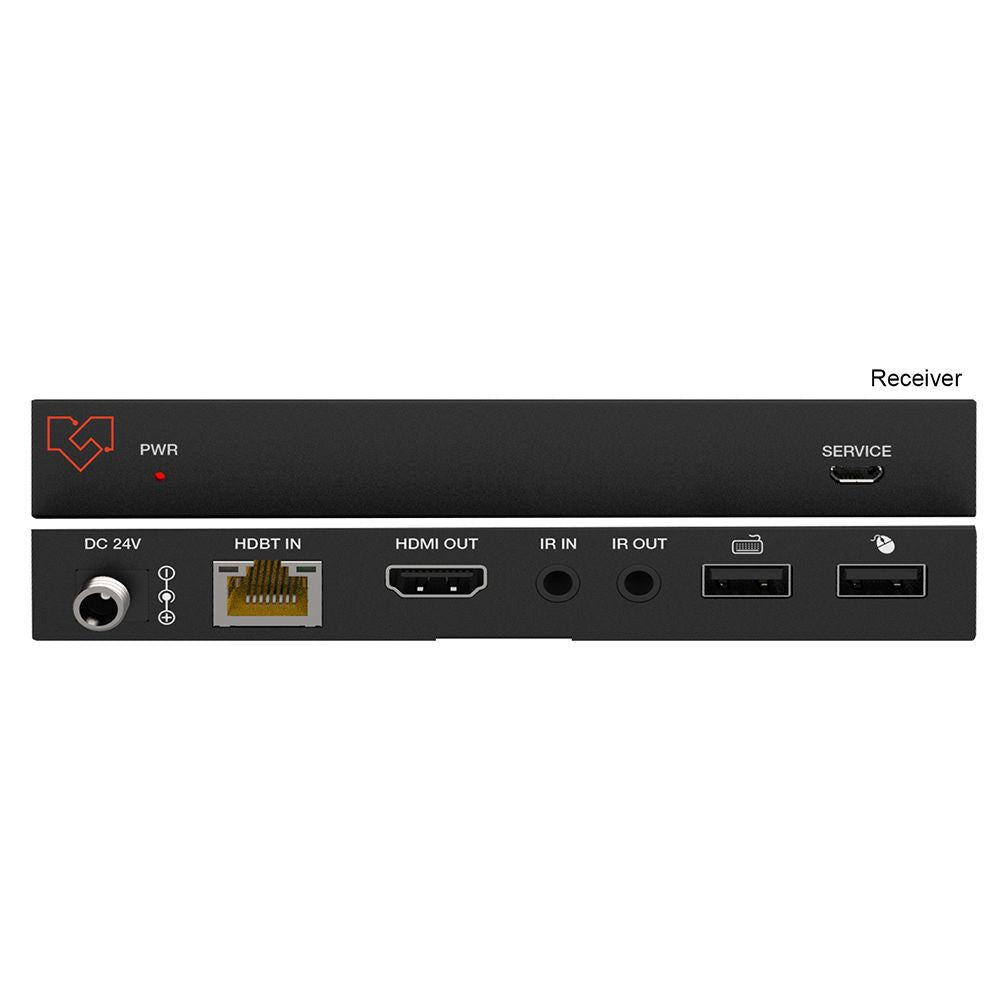

| Receiver | Input: 1× HDBT IN [RJ45 with light] 1× IR IN [3.5mm Stereo Mini-jack] 1× SERVICE [Micro-USB jack] Output: 1× HDMI OUT [TypeA, 19-pin female] 1× IR OUT [3.5mm Stereo Mini-jack] 2× USB [USB-A, 4-pin female] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Transmitter / Receiver:140mm (W)×65mm (D)×18mm (H) |
| Weight | Transmitter: 246g, Receiver: 246g |
| Power Supply | DC 24V/1A; Support PoC function |
| Power Consumption | 10W |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 - 90% RH (No condensation) |
