VigilLink CAT Cable USB2.0 Extender 100m 200Mbps / VLEX-U2CT100-TR

Name: VigilLink CAT Cable USB2.0 Extender 100m 200Mbps / VLEX-U2CT100-TR
Brand: VigilLink
SKU: SW-50029
Price: 353.0 USD
Availability: InStock

SKU SW-50029

$353.00 - $353.00

$353.00

$353.00 - $353.00

$353.00

Quantity

See Also:

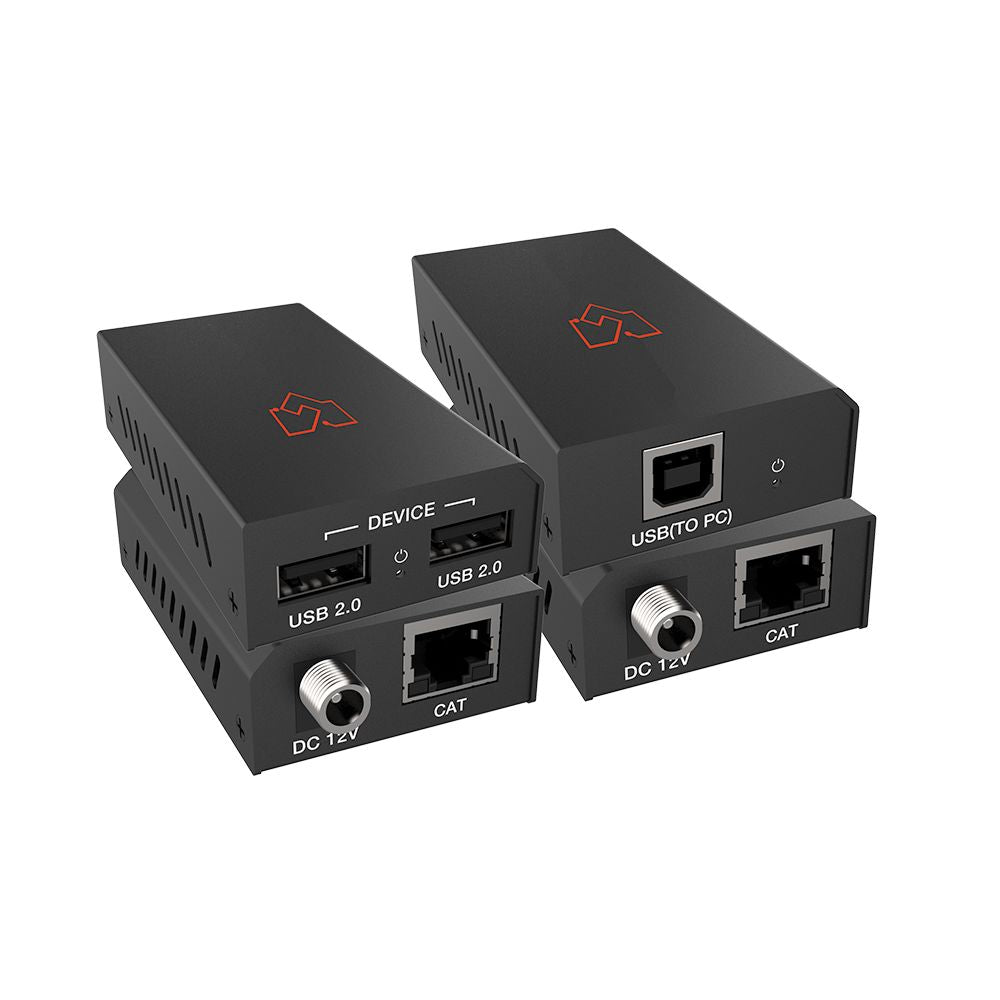

The USB 2.0 Extender can extend the USB signal to 100m / 328ft via a single Cat5e/6 cable. In the transmitter, the USB-B port is connected to a PC. In the receiver, you can connect a device with USB port (such as U disk or printer, etc.) through the two USB ports. The Transmitter and Receiver support the PoC (Power over Cable) function. The product can be widely used for long-distance signal transmission between a PC and a USB device. Simple plug and play, no drive, and installation setting required.

Featured Highlights

Supports USB 2.0 protocol; transmission rate is up to 200Mbps
Transmission distance is up to 100m / 328ft via a single CAT5e/6 cable
Supports one USB-B port input in the transmitter
Supports two USB 2.0 ports output in the receiver
Supports the PoC function, which means that the transmitter or receiver is powered through a 12V/1A power adapter. The other doesn’t need a power supply
Simple plug and play, no drive and installation setting required
Compact design for easy and flexible installation

Specifications

Technical
USB Protocol	USB 2.0
Transmission Rate	Up to 200Mbps
Transmission Distance	100M (328ft)
ESD Protection	Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection

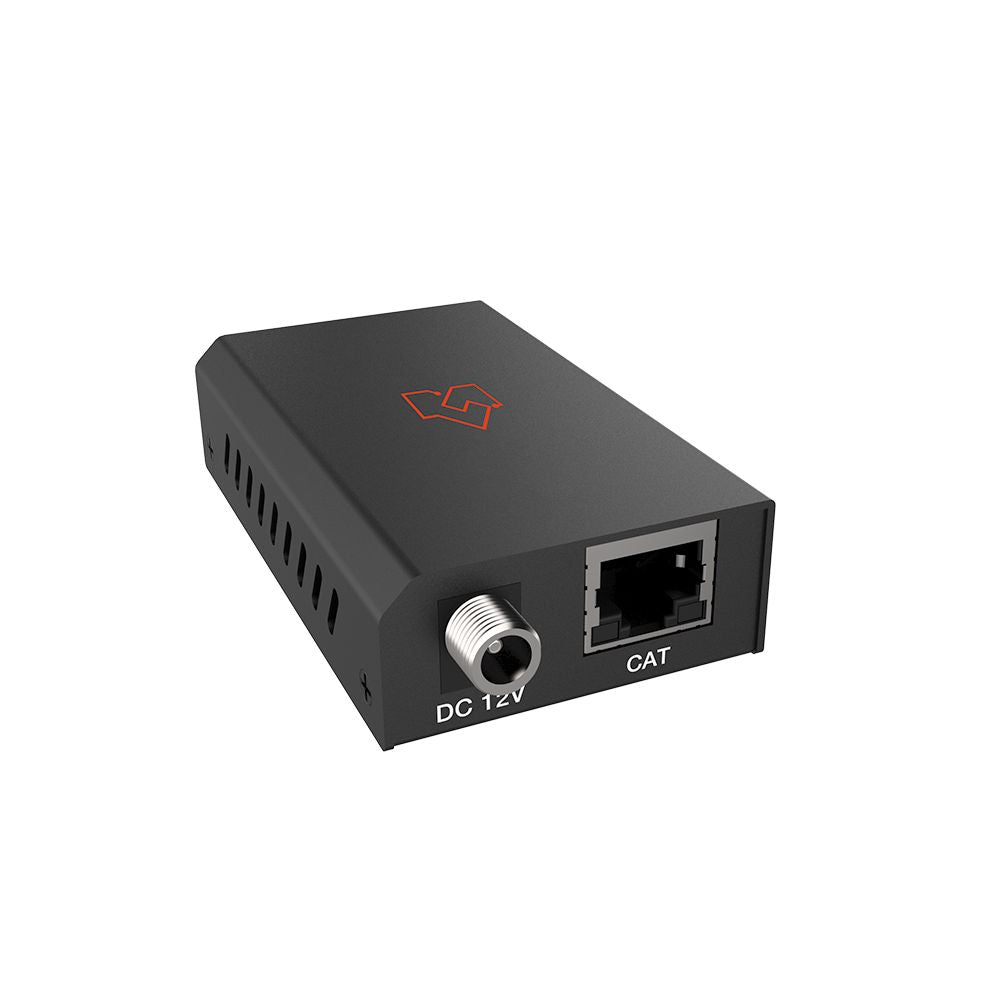

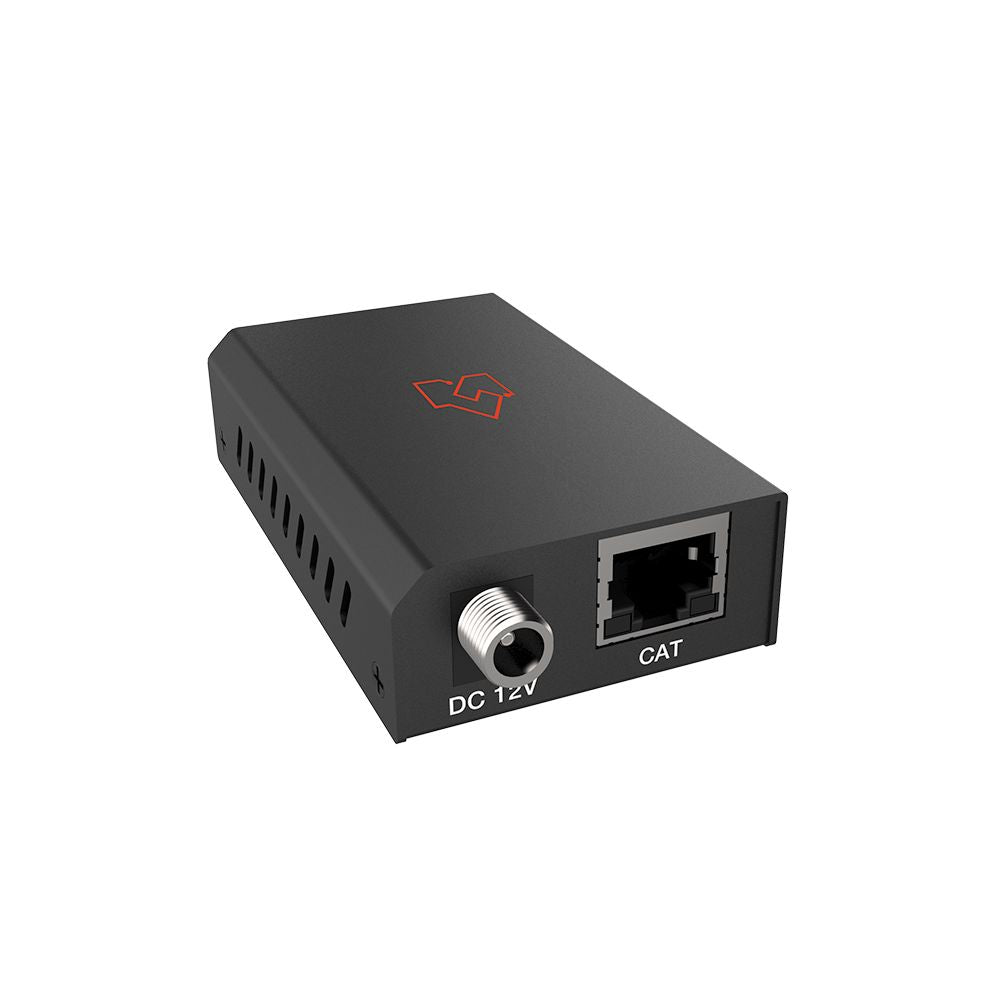

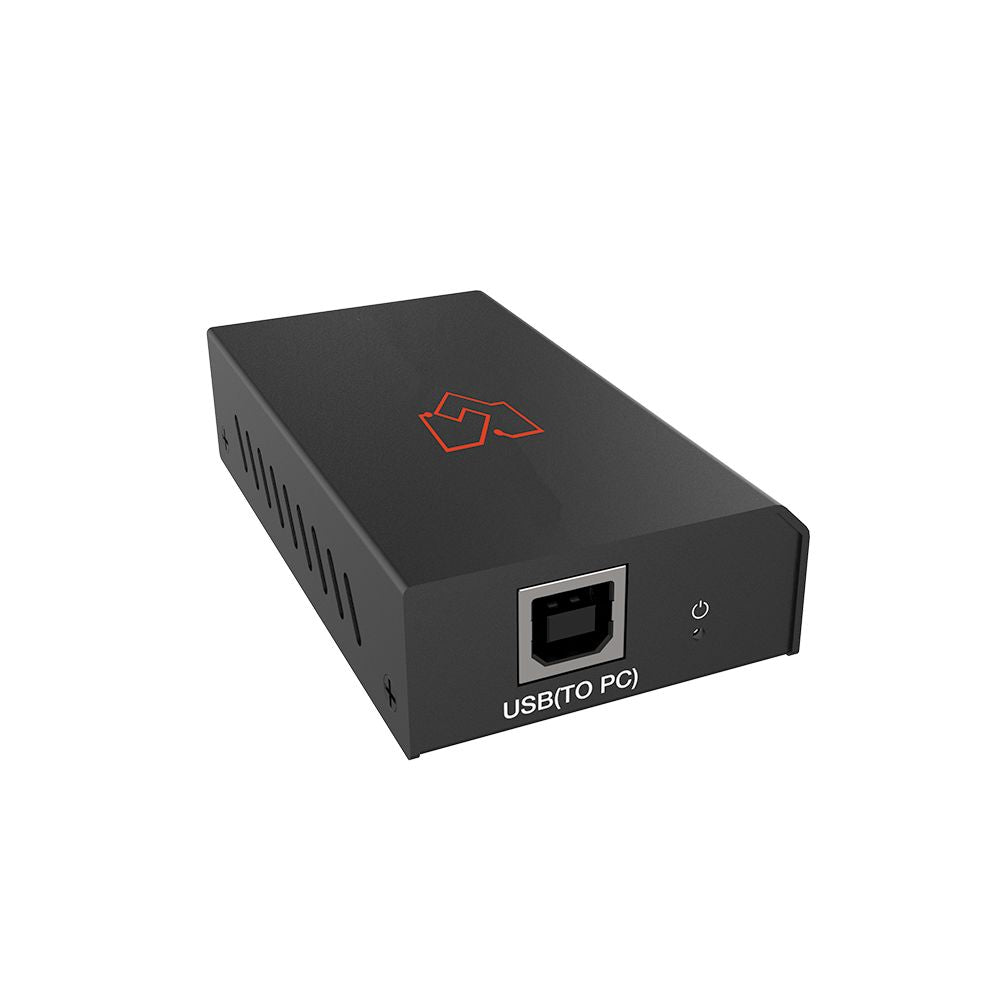

Transmitter	Inputs: 1×USB [USB-B, female] Outputs: 1×CAT [RJ45, female]

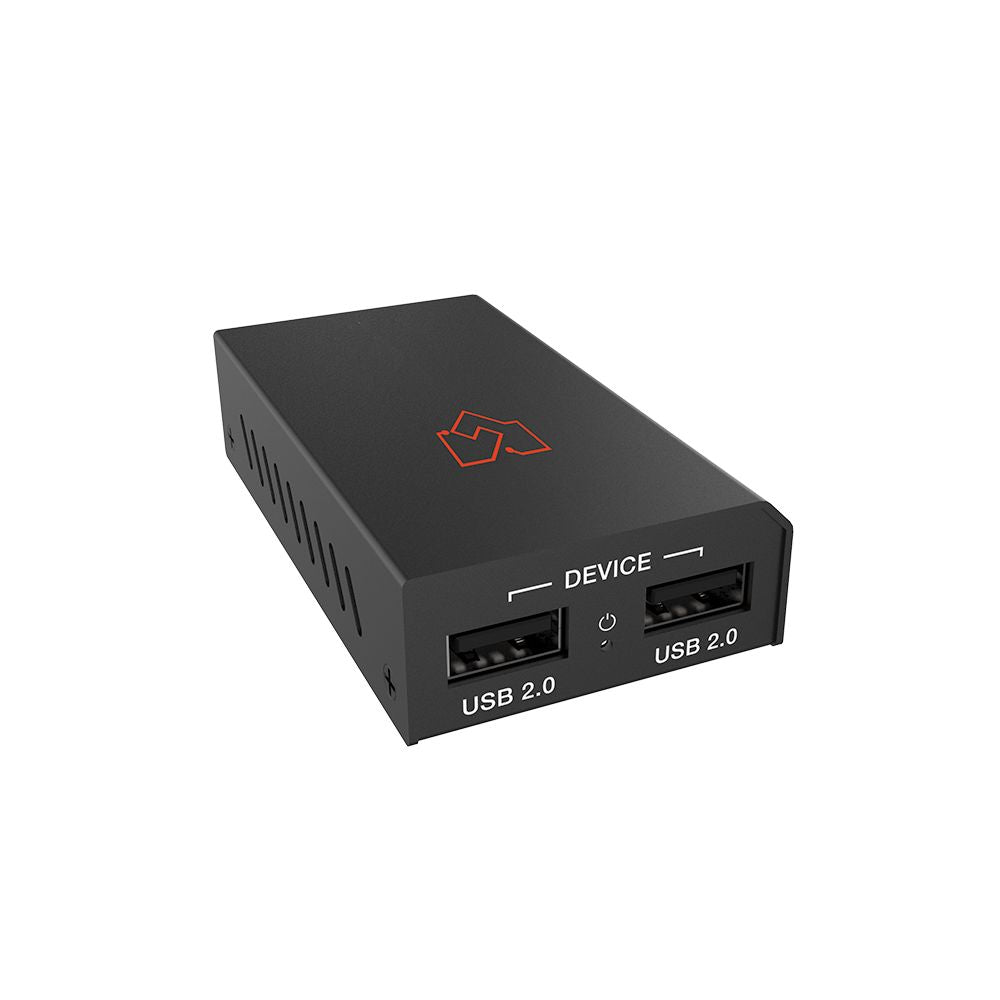

Receiver	Inputs: 1×CAT [RJ45, female] Outputs: 2×USB [USB-A, female]
Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	Transmitter / Receiver: 82mm (W)×49mm (D)×20mm (H)
Weight	Transmitter / Receiver: 100g
Power Supply	Input: AC100~240V 50/60Hz Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified)Receiver: 5V USB power supply
Power Consumption	Transmitter: 1.3W, Receiver: 2.3W
Operating Temperature	32 - 104°F / 0 - 40°C
Storage Temperature	-4 - 140°F / -20 - 60°C
Relative Humidity	20 - 90% RH (non-condensing)
