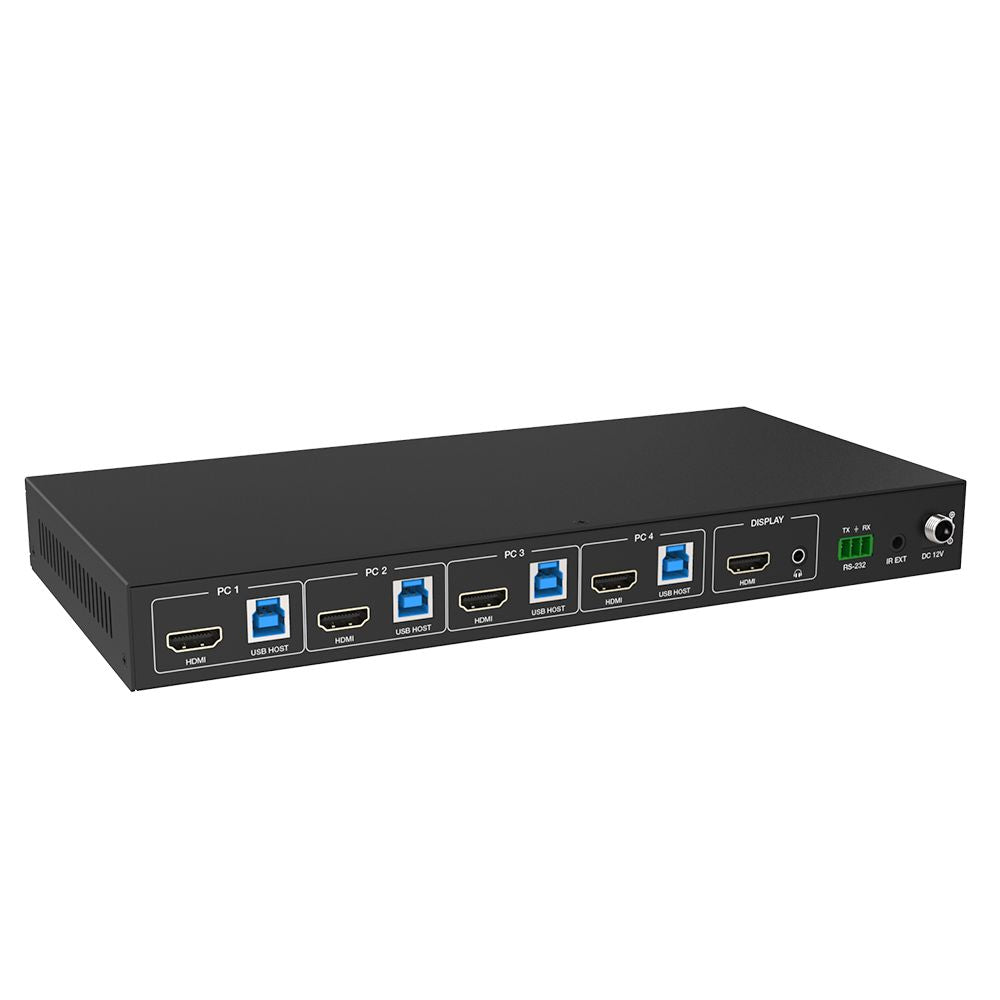

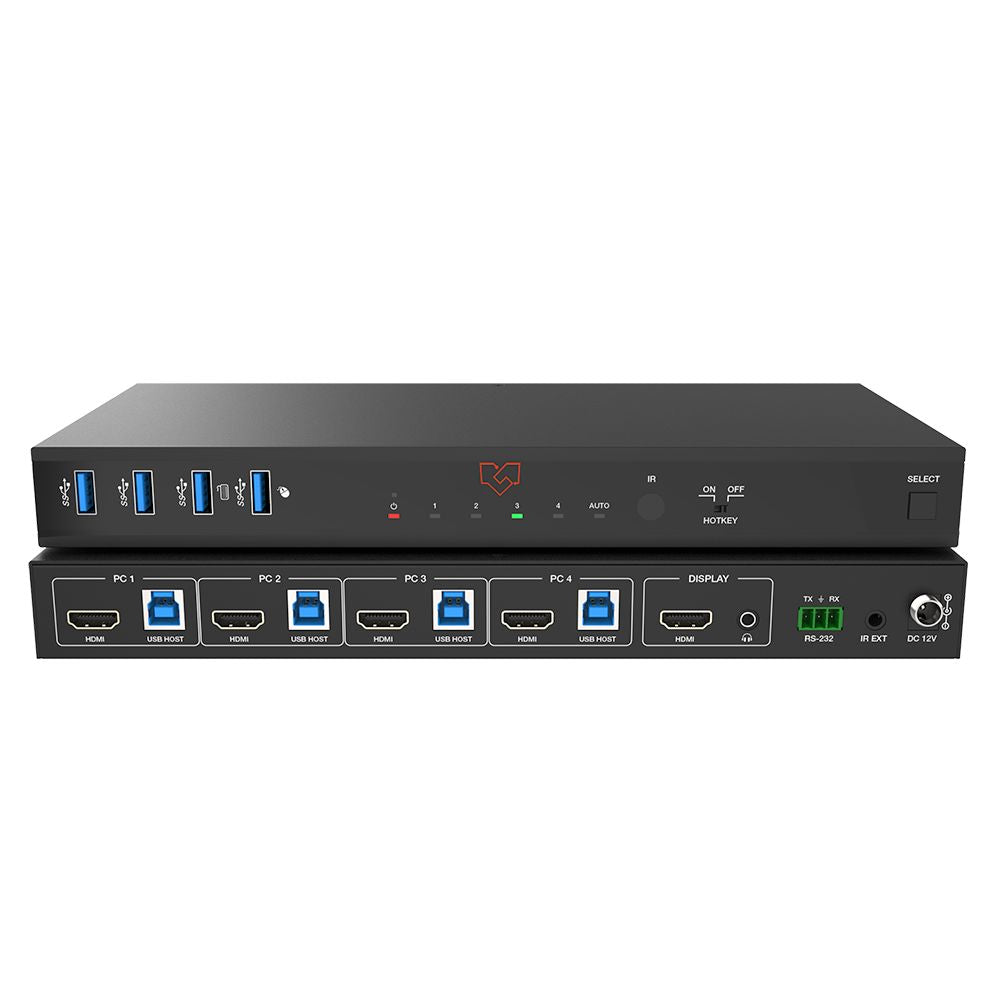

VigilLink 4 Port 8K60 HDMI KVM Switcher, VLKV-H2141

This is a 4x1 KVM Switcher with hotkey switching. It supports resolutions up to 8K@60Hz 4:2:0 10bit and can transmit USB 3.0 signal up to 5Gbps for KVM function.

The switcher features a virtual interaction function to automatically wake up the connected PC in standby mode, which can reduce the switching time. It also supports direct switching through buttons on the front panel, IR remote, and hotkey through keyboard/mouse connected to the special USB port. It provides a wide compatibility choice for different operating systems, such as Windows, Mac OS, and Linux, with no driver required and simple plug-and-play.

Featured Highlight

• HDCP 2.3 compliant

• Support Ultra-wide Screen, resolution up to 8K@60Hz, 4K@120Hz/144Hz, 1080P@240Hz

• Support VRR, ALLM, QMS, QFT, SBTM as specified in HDMI 2.1

• HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through

• Using only 1 set of keyboard, mouse, and monitor to control 4 computers

• Support video fast switching and keyboard/mouse seamless switching

• Each input port has an EDID emulator to provide the correct information for the PC

• Support hot plug, disconnect, or connect devices to the KVM at any time

• Switching via front panel buttons, keyboard/mouse hotkeys, IR remote control, and RS-232 commands

• Support auto switching

• Advanced hardware/software design and production ensure zero latency

• The integrated USB 3.0 ports allow you to share USB peripherals like printer, scanner, webcam, and hard disk between computers with data

• transfer rate up to 5Gbp/s

• Compact design for easy and flexible installation

Specifications
