VigilLink CAT Cable USB2.0 Extender 100m 200Mbps / VLEX-U2CT100-TR

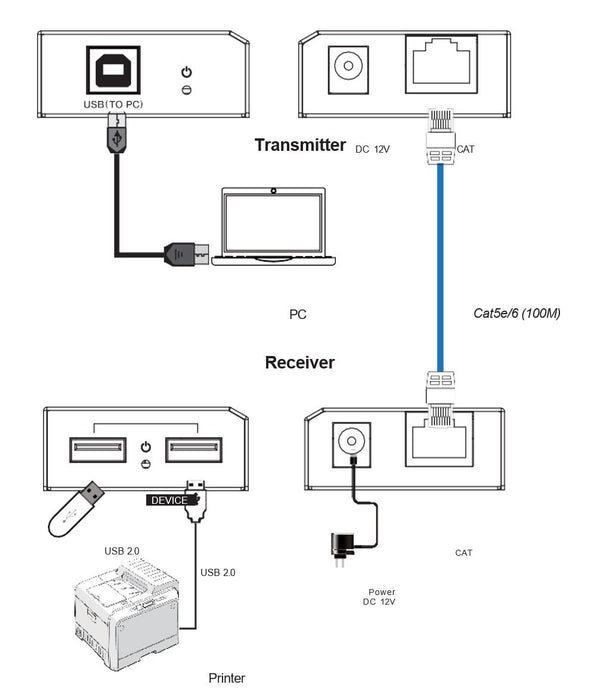

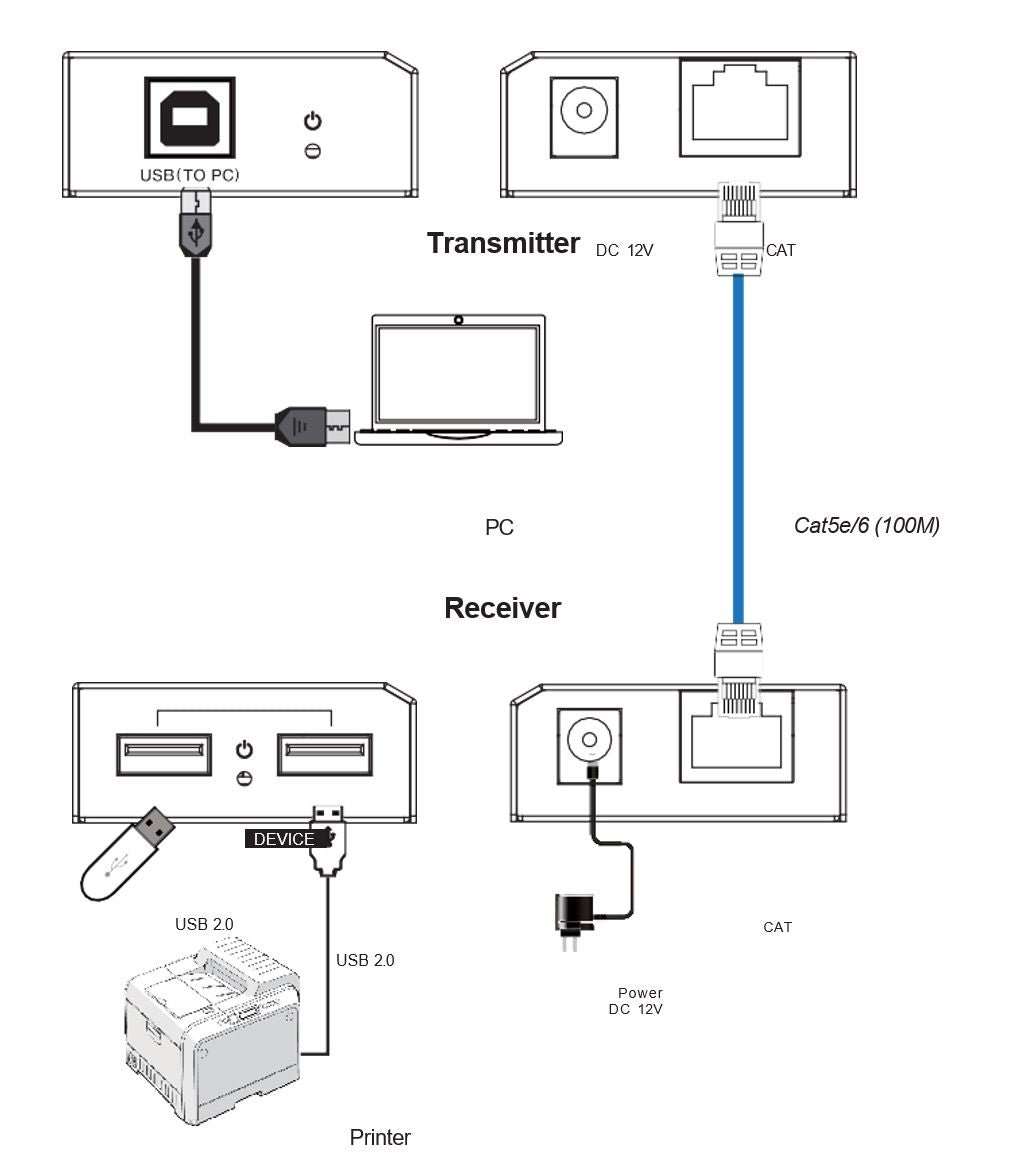

The USB 2.0 Extender can extend the USB signal to 100m / 328ft via a single Cat5e/6 cable. In the transmitter, the USB-B port is connected to a PC. In the receiver, you can connect a device with USB port (such as U disk or printer, etc.) through the two USB ports. The Transmitter and Receiver support the PoC (Power over Cable) function. The product can be widely used for long-distance signal transmission between a PC and a USB device. Simple plug and play, no drive, and installation setting required.

Featured Highlights

• Supports USB 2.0 protocol; transmission rate is up to 200Mbps

• Transmission distance is up to 100m / 328ft via a single CAT5e/6 cable

• Supports one USB-B port input in the transmitter

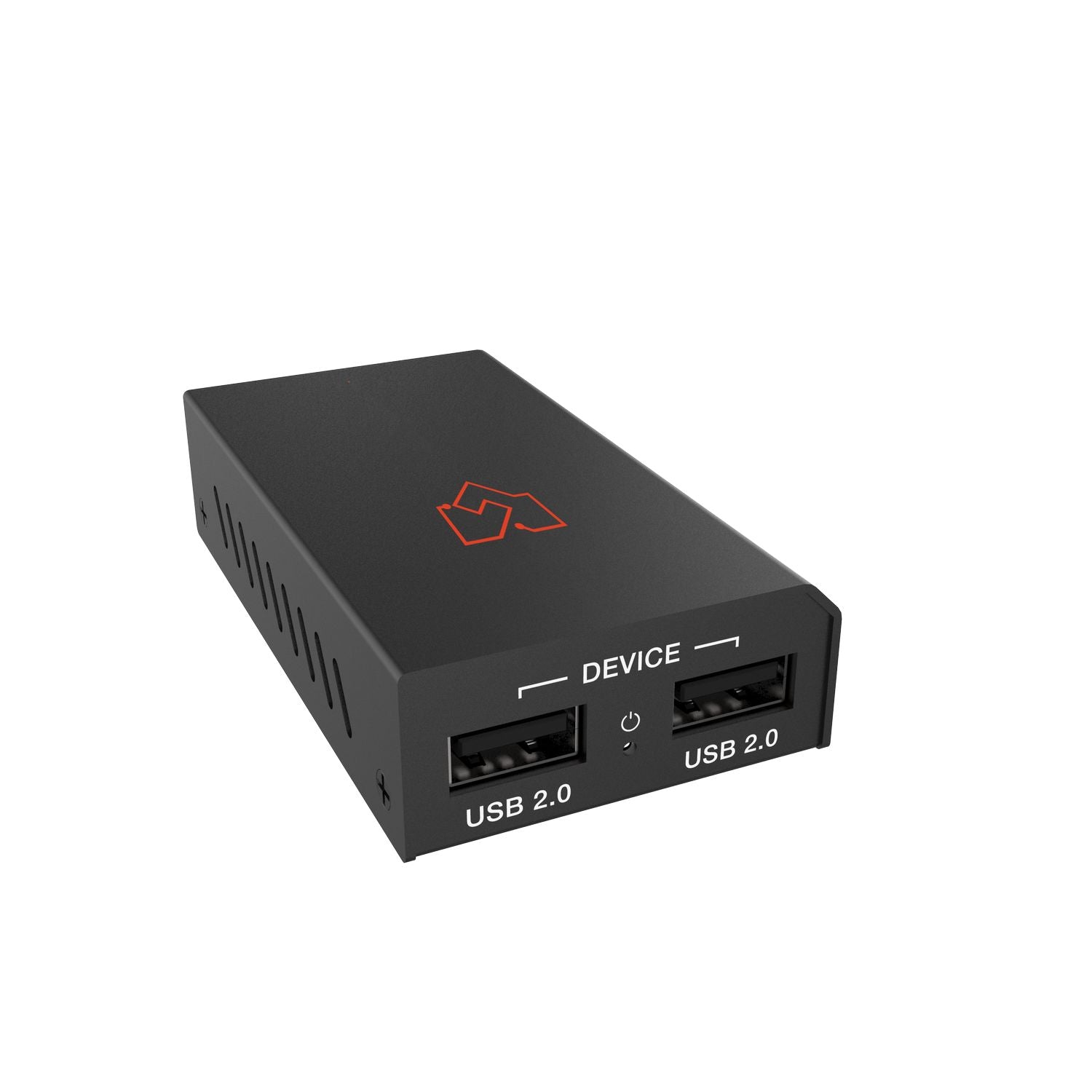

• Supports two USB 2.0 ports output in the receiver

• Supports the PoC function, which means that the transmitter or receiver is powered through a 12V/1A power adapter. The other doesn’t need a power supply

• Simple plug and play, no drive and installation setting required

• Compact design for easy and flexible installation
