VigilLink 2 Port Dual Monitor 8K60 HDMI KVM Switcher, VLKV-H212D

Name: VigilLink 2 Port Dual Monitor 8K60 HDMI KVM Switcher, VLKV-H212D
Brand: VigilLink
SKU: SW-50050
Price: 432.0 USD
Availability: InStock

SKU SW-50050

$432.00 - $432.00

$432.00

$432.00 - $432.00

$432.00

Quantity

This is a 2x1 HDMI KVM Switcher with dual channel switching and hotkey switching. It supports HDMI 2.1 and HDCP 2.3 compatibility, supports resolutions up to 8K@60Hz 4:2:0 10bit, and can also transmit USB 3.0 signal up to 5Gbps for KVM function. It can share two monitors and USB devices between two PCs and supports two modes of operation.

The switcher features a virtual interaction function to automatically wake up the connected PC in standby mode, which can reduce the switching time. It also supports direct switching through buttons on the front panel, IR remote, and hotkeys through the keyboard/mouse connected to the special USB port. It provides a wide compatibility choice for different operating systems, such as Windows, Mac OS, and Linux, with no driver required and simple plug-and-play.

Featured Highlights

HDMI 2.1 and HDCP 2.3 compliant
Support Ultra-wide Screen, resolution up to 8K@60Hz, 4K@120Hz/144Hz, 1080P@240Hz
HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, and SBTM are supported
HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
Using only 1 set of keyboard, mouse, and monitor to control 2 computers
Support video fast switching and keyboard/mouse seamless switching
Each input port has an EDID emulator to provide the correct information for the PC
Support hot plug, disconnect, or connect devices to the KVM at any time

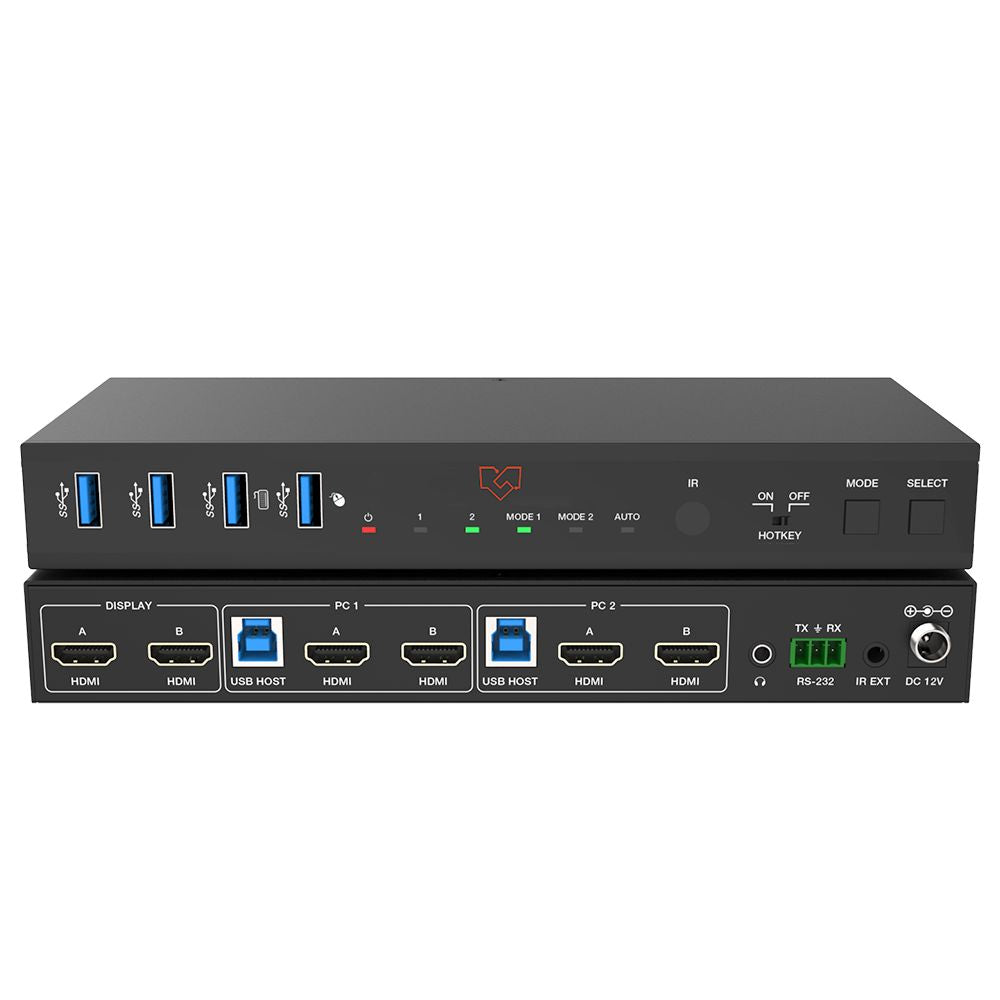

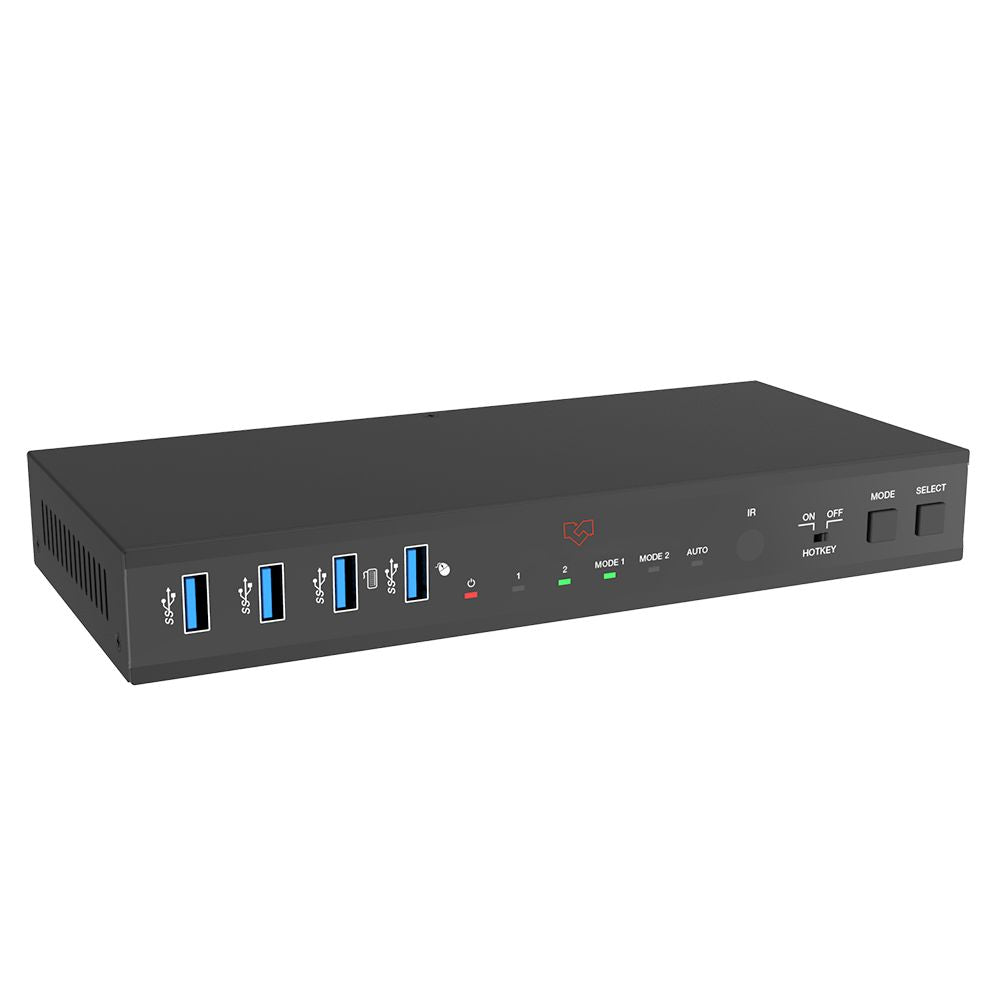

Switching via front panel buttons, keyboard/mouse hotkeys, and IR remote control
Support auto switching
Advanced hardware/software design and production ensure zero latency
The integrated USB 3.0 ports allow you to share USB peripherals like printer, scanner, webcam, and hard disk between computers with data transfer rates up to 5Gbp/s
Compact design for easy and flexible installation

Specifications

Technical
HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3
Video Bandwidth	40Gbps
Audio Latency	No Latency
Video Latency	No Latency
Video Resolution	Up to 8K@60Hz, 4K@120Hz/144Hz, 1080P@240Hz
IR Level	5Vp-p
IR Frequency	Fixed frequency 38KHz
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth	8/10/12bit
HDR	HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Formats	HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD L/R OUT: PCM 2.0CH
ESD Protection	IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection

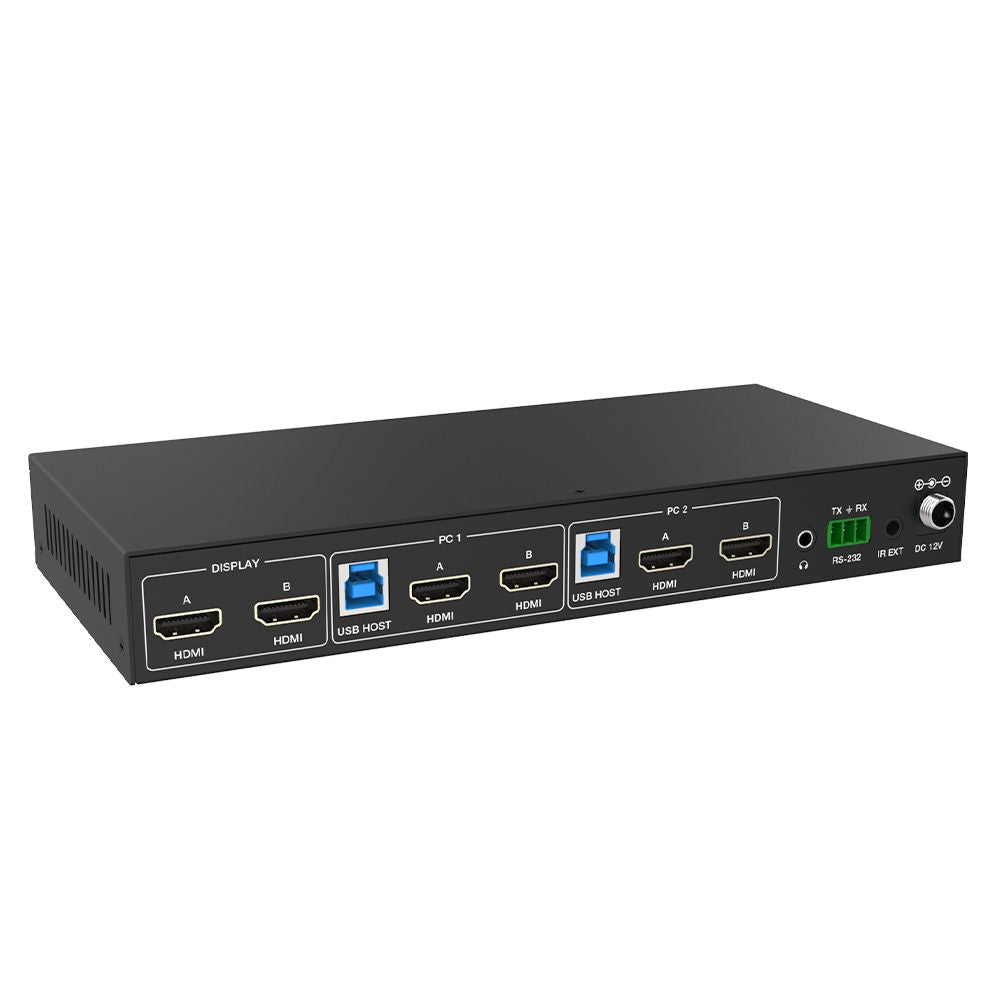

Input Port	4 x HDMI input [Type A, 19-pin female]
Output Port	2 x HDMI output [Type A, 19-pin female] 1 x L/R audio output [3.5mm Stereo Mini-jack]
Control ports	1 x RS-232 [3pin-3.81mm phoenix connector] 1 x IR EXT [3.5mm Stereo Mini-jack] 2 x USB HOST [USB Type B] 4 x USB DEVICES [USB Type A]
Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	220mm [W] x 100mm [D] x 30mm [H]
Weight	626g
Power Supply	Input: AC 100 - 240V 50/60Hz Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified)
Power Consumption	Typical value: 7.2W Standby mode: 0.72W
Operating Temperature	32 - 104°F / 0 - 40°C
Storage Temperature	-4 - 140°F / -20 - 60°C
Relative Humidity	20 - 90% RH (No condensation)
