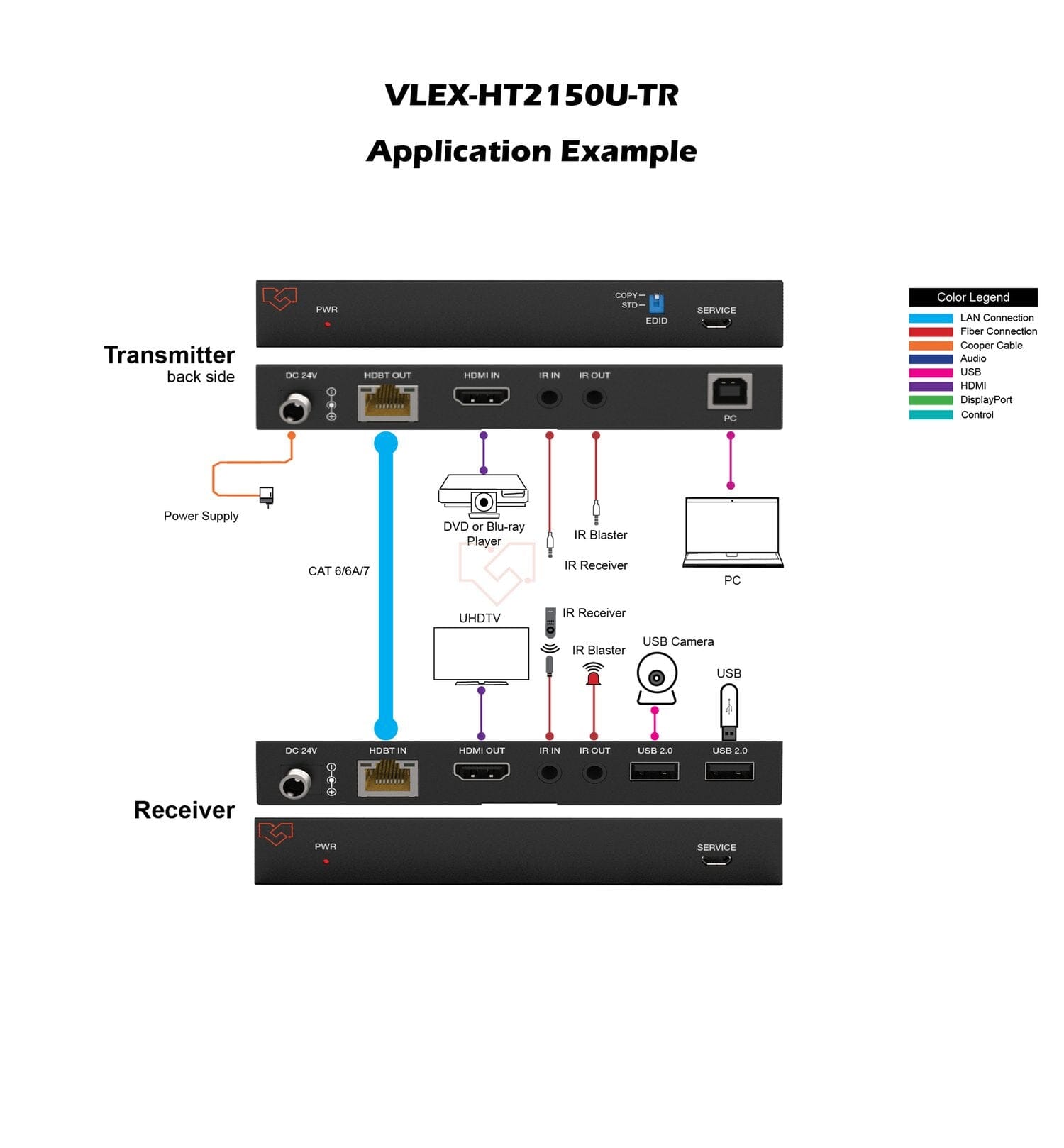

This 18Gbps HDBaseT Extender can extend the HDMI signal, bi-directional IR control signal, and USB KVM signal to a distance of up to 150m via a single CAT6 cable. This product converts HDMI signal to standard HDBaseT signal and transmits it through a LAN cable. It can easily control the signal source device or display device from the remote end through a bi-directional IR signal pass-through function. Video resolution up to 4K2K@60Hz YUV 4:4:4. It also supports USB 2.0 transmission and POC function.
The extender can be widely used in other fields such as video conference systems, multimedia signal broadcasting, HDMI signal extension, etc.
Featured Highlights
-
HDMI 2.0b, HDCP 2.2 compliant
-
Up to 4K / 2K @60Hz with 24bit RGB / YCbCr (4:4:4)
-
HDR, HDR10, HDR10+, Dolby Vision pass through
-
Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
-
Up to 120m (4K) and 150m (1080P) using CAT6/6A cable
-
Two-way IR transmission
-
USB 2.0 protocol, transmission rate up to 480Mbps transmission
-
EDID management
-
Two-way PoC (Power over Cable)
Specifications
| Technical | |
|---|---|
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K2K@60Hz YUV 4:4:4 |
| USB Compliance | USB 2.0 |
| IR Level | 5Vp-p |
| IR Frequency | Wideband 20K-60KHz |
| Transmission Distance | 1080P@60--150m, 4K60 --120m |
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit (1080P) 8-bit (4K60) 8-bit, 10-bit, 12-bit (4K24/30) |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Audio Format | LPCM 7.1CH, Dolby True HD, and DTS-HD Master |
| ESD Protection | Human-body Model： ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
| Connection | |

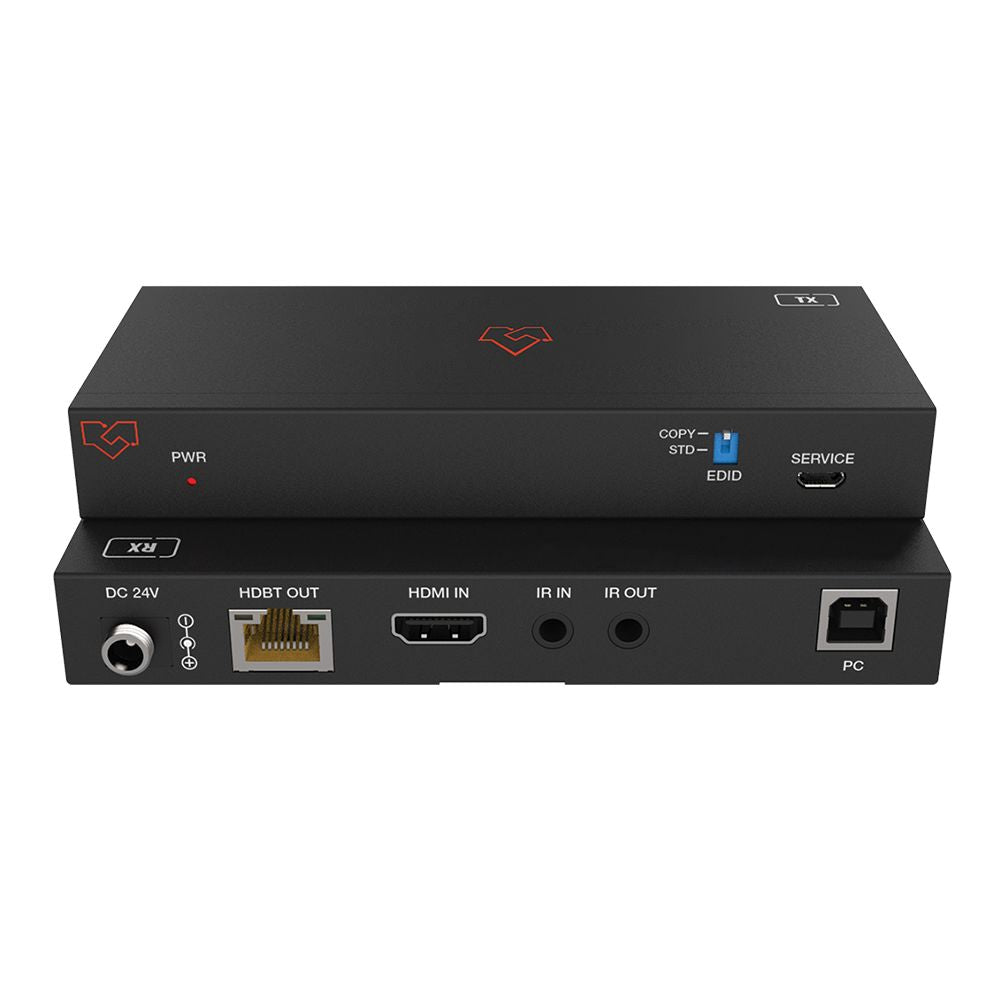

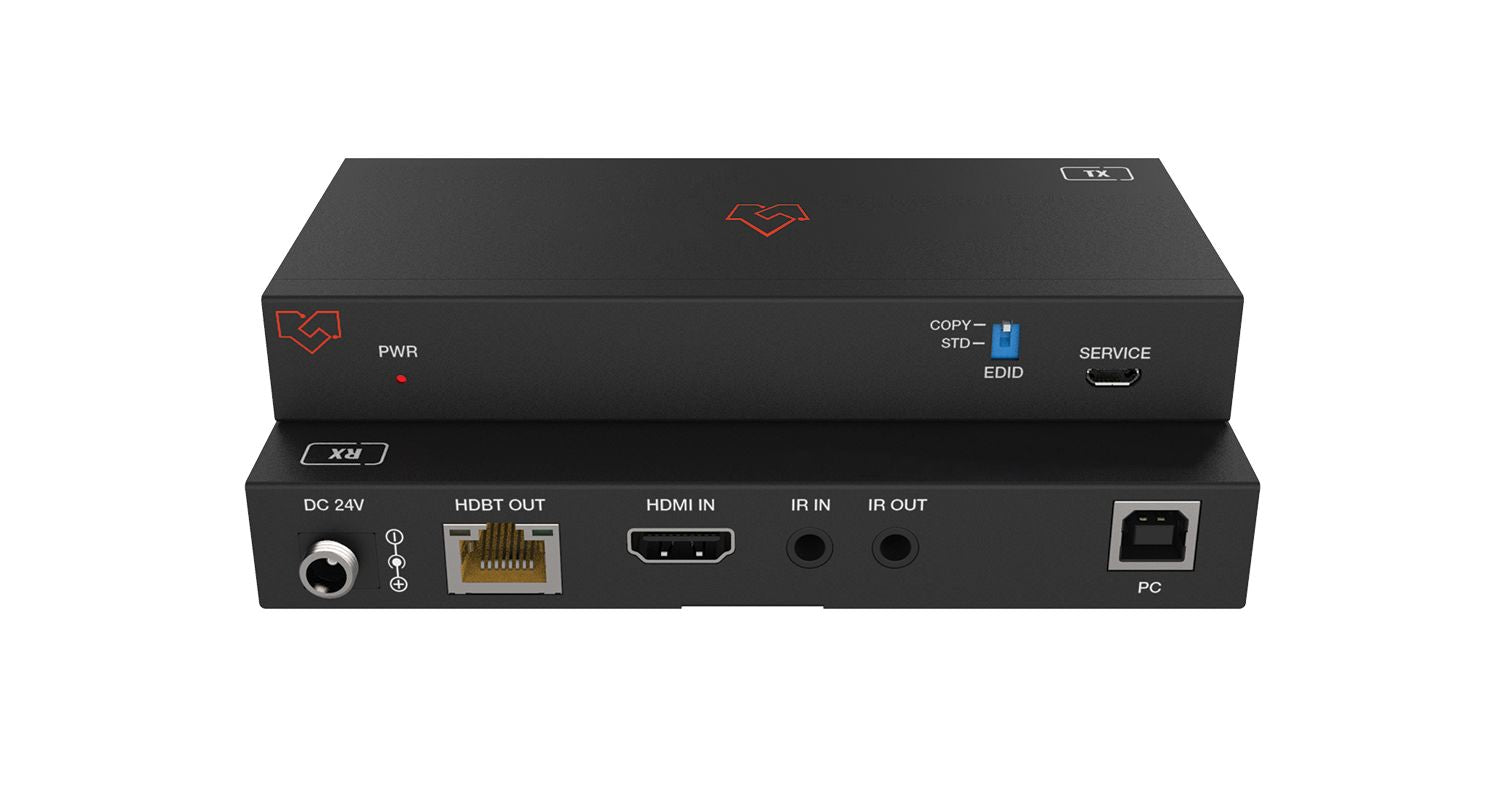

| Transmitter | Input: 1× HDMI IN [Type A, 19-pin female] 1× IR IN [3.5mm Stereo Mini-jack] 1× SERVICE [Micro-USB jack] 1× USB [USB-B, 4-pin female] Output: 1×HDBT OUT [RJ45] 1×IR OUT [3.5mm Stereo Mini jack] |

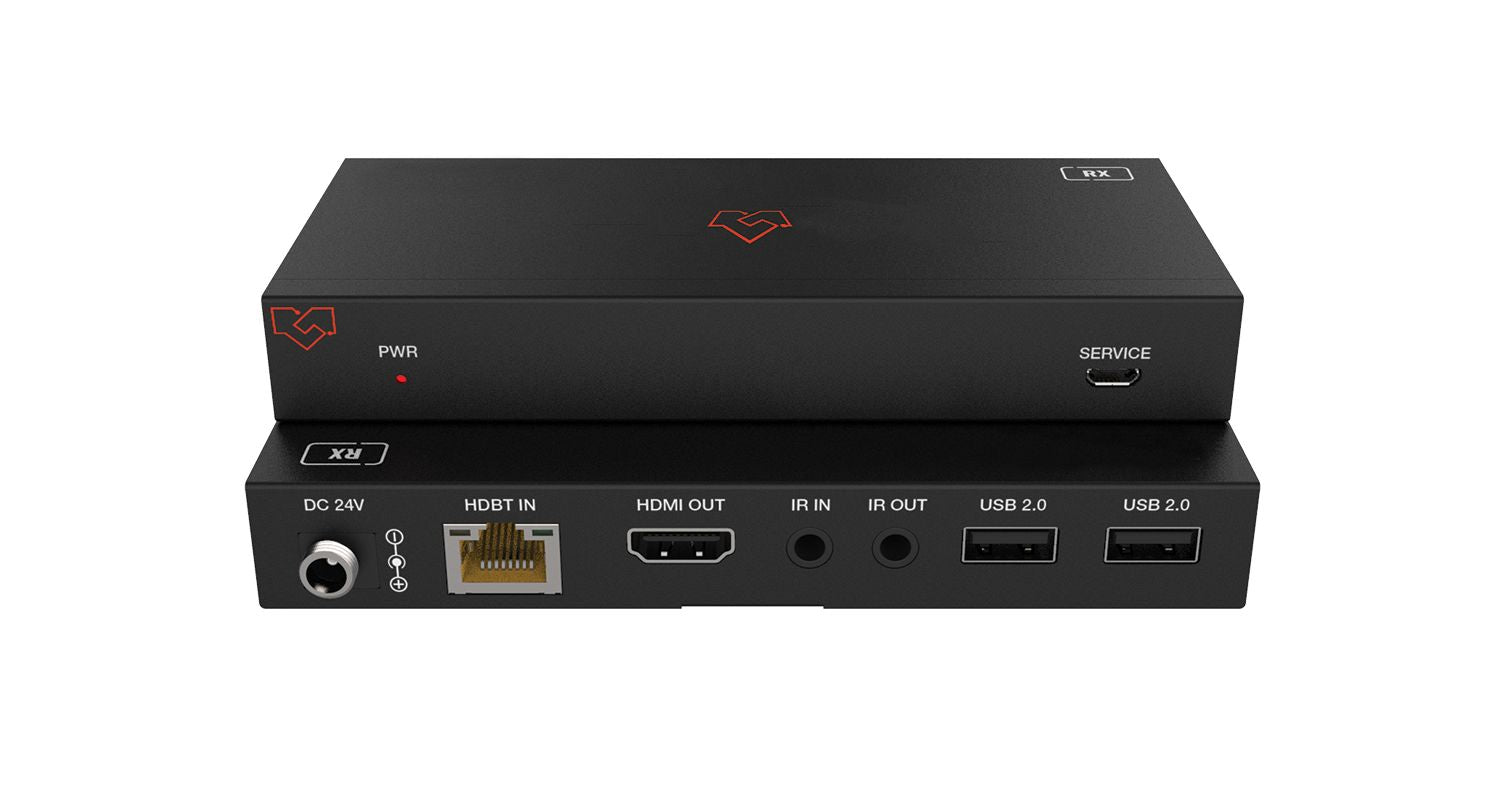

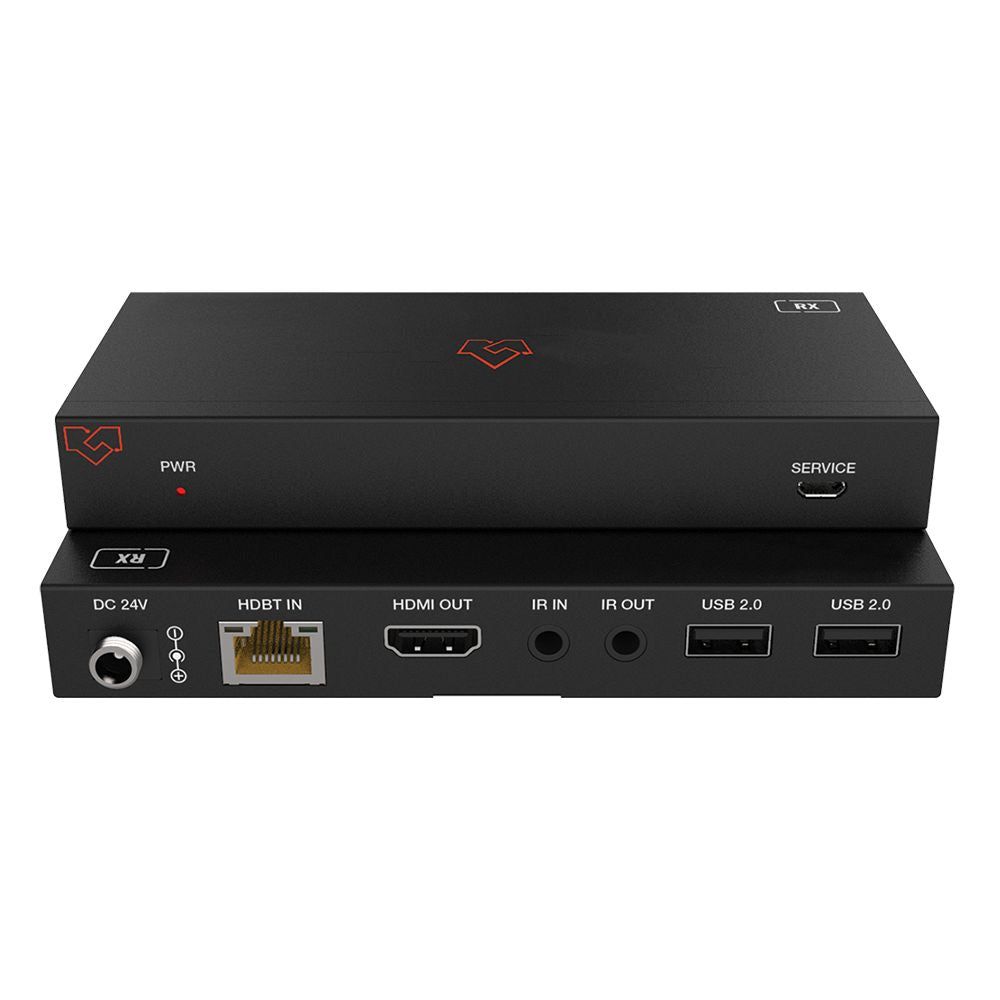

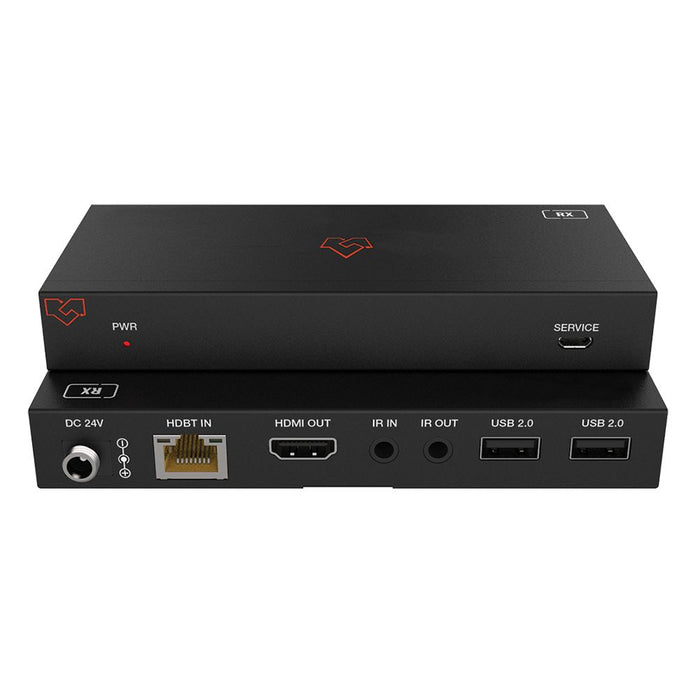

| Receiver | Input: 1× HDBT IN [RJ45 with light] 1×IR IN [3.5mm Stereo Mini jack] 1×SERVICE [Micro-USB jack] Output: 1×HDMI OUT [Type A, 19-pin female] 1×IR OUT [3.5mm Stereo Mini-jack] 2×USB 2.0 [USB-A, 4-pin female] |
| Mechanical | |

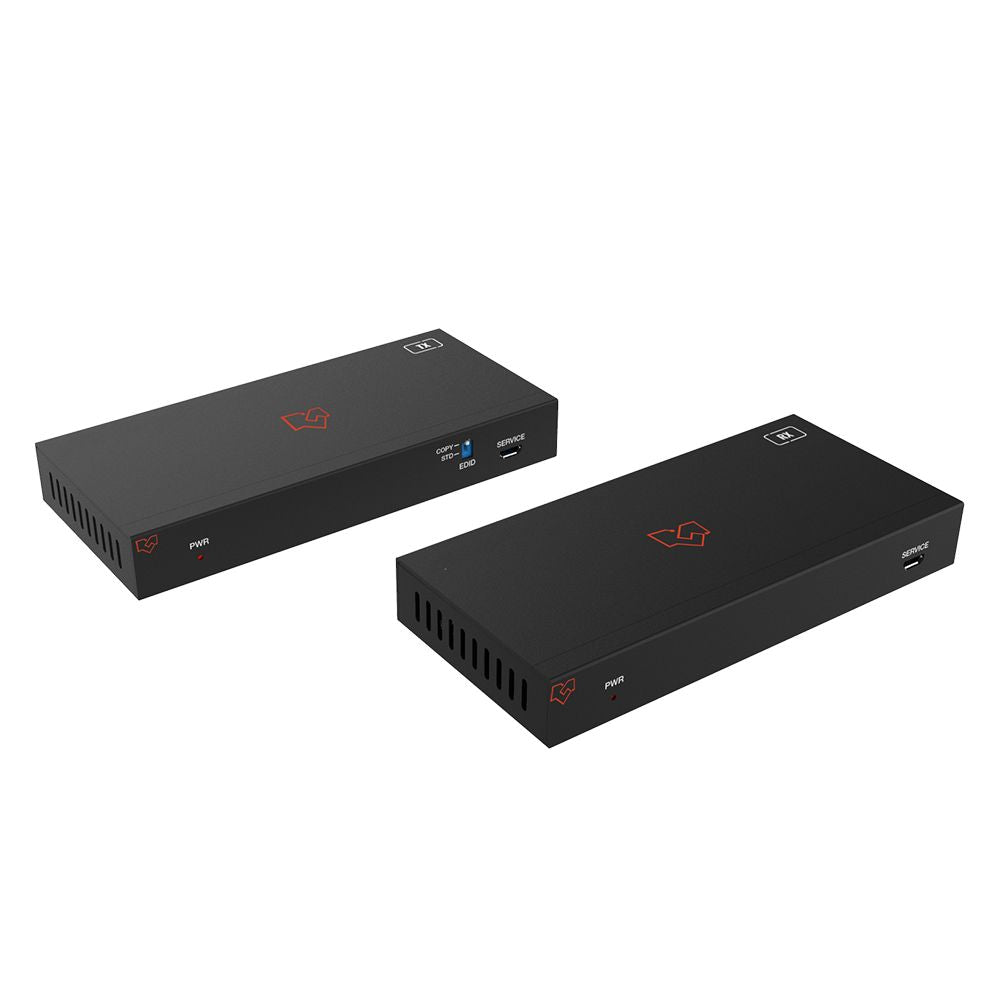

| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Transmitter / Receiver:140mm (W)×65mm (D)×18mm (H) |
| Weight | Transmitter: 245g, Receiver: 249g |
| Power Supply | DC 24V/1A; Support bi-directional POC function |
| Power Consumption | 13.2W (Max.) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 - 90% RH (No condensation) |
