Epiphan SDI2USB 3.0 SDI to USB Video Capture Card

SKU SW-33088


SDI2USB front face

Best in class USB capture card for SDI video capture

SDI2USB 3.0 is the industry standard for capturing and recording uncompressed, production-quality video at up to 60 fps directly from 3G-SDI, HD-SDI, and SD-SDI sources. Simply connect your SDI video input to your Windows or Linux computer using USB 3.0 and access the Epiphan Capture Tool for easy preview and recording.

SDI2USB-3.0 connection diagram

Flexible SDI input

The SDI input port is designed to capture video signals from 3G-SDI, HD-SDI, and SD-SDI, including embedded audio.

SDI output port for confidence monitoring

Connect a monitor or projector to the SDI output port to monitor your SDI signal in high resolution.

SDI2USB-3.0 SDI port layout

Designed for maximum usability and durability

Rugged yet lightweight design is ideal when moving from office to boardroom, laboratory, or anywhere you need to capture and record SDI video. Powered over USB, SDI2USB 3.0 eliminates the need for an AC power connection. The device contains no internal fans or other moving parts for silent and reliable SDI video capture.


SDK for custom applications

For custom software development, download the SDK from our website to design your own application that interfaces directly with Epiphan drivers.

USB 3.0 icon

Capture up to 60 fps with USB 3.0

Capable of transferring uncompressed SDI video to your computer or laptop in beautiful Full HD at 60 fps. Supports USB 3.0 and USB 2.0 data uplink.

live production

Invaluable tool for live production

SDI2USB 3.0 solves the problem of how to effectively transfer SDI video content from a professional-grade video mixing console to a laptop or desktop computer.

USB powered

High-quality SDI output with flexible recording options

Choose to record your SDI as a single video file or as a series of individual graphic files.

Works with YUV and RGB color space

Provides true 24-bit color and consistent frame rate performance regardless of video content. Captures flawless, uncompressed SDI video in YUV 4:2:0 color formats.


Epiphan’s capture tool and drivers

All Epiphan USB capture cards come with our free capture software and drivers which provide a seamless interface to a wide range of industry-standard encoding and streaming software. To maintain the highest standard of product performance, we issue occasional upgrades to our video capture cards completely free of charge. Your Epiphan video capture device notifies you when a firmware upgrade is available for download.

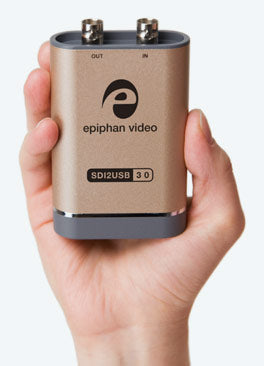

SDI2USB-3.0 in hand

windows and linux supported

Windows and Linux application support

In addition to the free Epiphan Capture tool, SDI2USB 3.0 works with multiple third-party applications for Windows and Linux through DirectShow and V4L2 respectively. This allows the captured SDI video to be used in many different streaming, recording, and conferencing applications. These include, but are not limited to: Windows Camera, VLC, Wirecast, OBS, vMix, XSplit, Skype, and Google Hangouts.

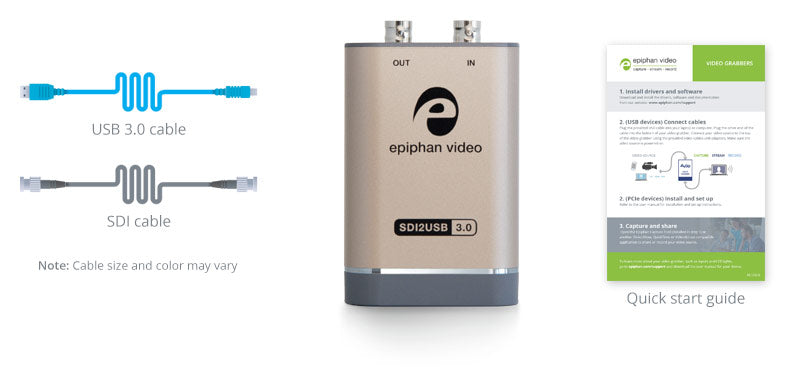

What’s in the box?

SDI2USB 3.0 comes with all the cables and connectors you need to capture 3G-SDI, HD-SDI, and SD-SDI signals.

what's in the box?


Mfg. Part Number

  • ESP0657


  • Epiphan


  • USB 3.0, USB 2.0


  • 3.54?×2.36?×0.91? (90mm × 60mm × 23mm)


  • Serial Interface BNC, USB standard B type



Video Sampling

  • Multiple RGB and YUV (YCbCr) color formats including RGB24, YUY2, and I420

Supported video modes

  • Up to 1920×1200. Custom resolutions.

OS Support

  • Windows 7, 8, 10, Linux DirectShow (Windows), and V4L (Linux) supported

Country of Origin

  • Made in North America (Canada)
