This Audio over CAT 5e/6 Extender can transmit digital optical and coaxial signals concurrently up to a distance of 300m (48kHz), 150m (96kHz), or 100m (192kHZ). The receiver’s built-in DAC converts either of the digital (coax/toslink optical) signals to a 2CH analog stereo audio output. Support one-way POC function (the receiver will power the transmitter over the CAT cable).
This is a fantastic plug-and-play solution for sending optical audio from an HDTV back to an amplifier, AVR, or multi-room audio system which requires an analog stereo audio input signal.
Featured Highlights
-
Extend optical and coaxial digital audio signals up to a distance of 300m (48kHz), 150m (96kHz) or 100m (192kHZ) over a single CAT cable
-
The optical and coaxial digital signals can be distributed at the same time
-
Built-in DAC (Digital to Analog Converter) converts either optical or coaxial digital (selectable) to analog stereo left/right audio output (PCM only)
-
Supports sample rates 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, and 192 kHz up to a 24-bit resolution
-
Supports LPCM, DTS, Dolby Digital, and Dolby Digital Plus when used as a straight digital in/digital out extender
-
Supports one-way POC function. The transmitter is powered by the receiver through the CAT cable.
-
Plug-and-play
-
Small compact size
-
Ultra-low jitter and high-fidelity design
Specifications
| Technical | |
|---|---|
| Bitrate over Distance | 192kHz - 100m, 96kHz - 150m, 48kHz - 300m |
| Supported Audio Formats | LPCM, DTS, Dolby Digital, and Dolby Digital Plus when used as a straight digital in/digital out extender |
| Sample Rates | 32 kHz, 44.1 kHz, 48 kHz, 96 kHz and 192 kHz up to 24-bit resolution |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge), ±4KV (Contact discharge) |
| Connection | |

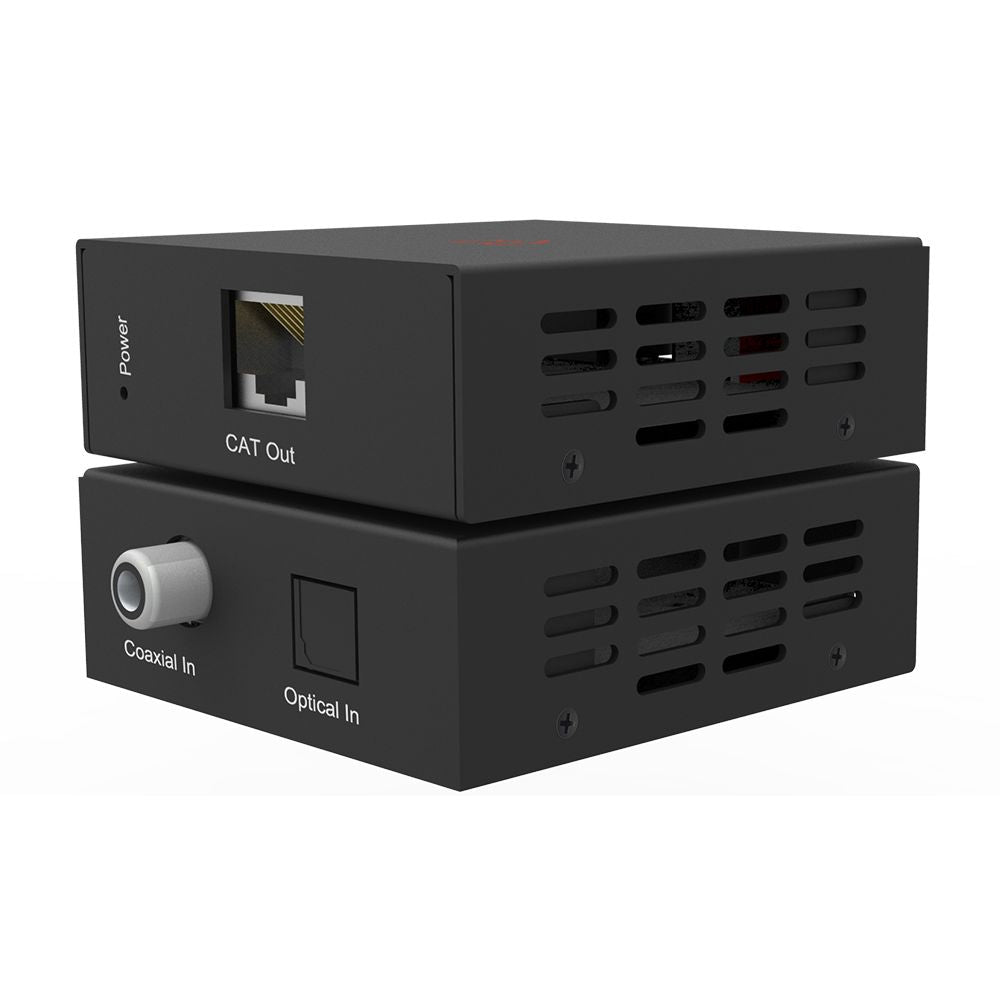

| Transmitter | Input ports: 1× Optical (Toslink) 1× Coaxial SPDIF RCA Output port: 1x RJ45 |

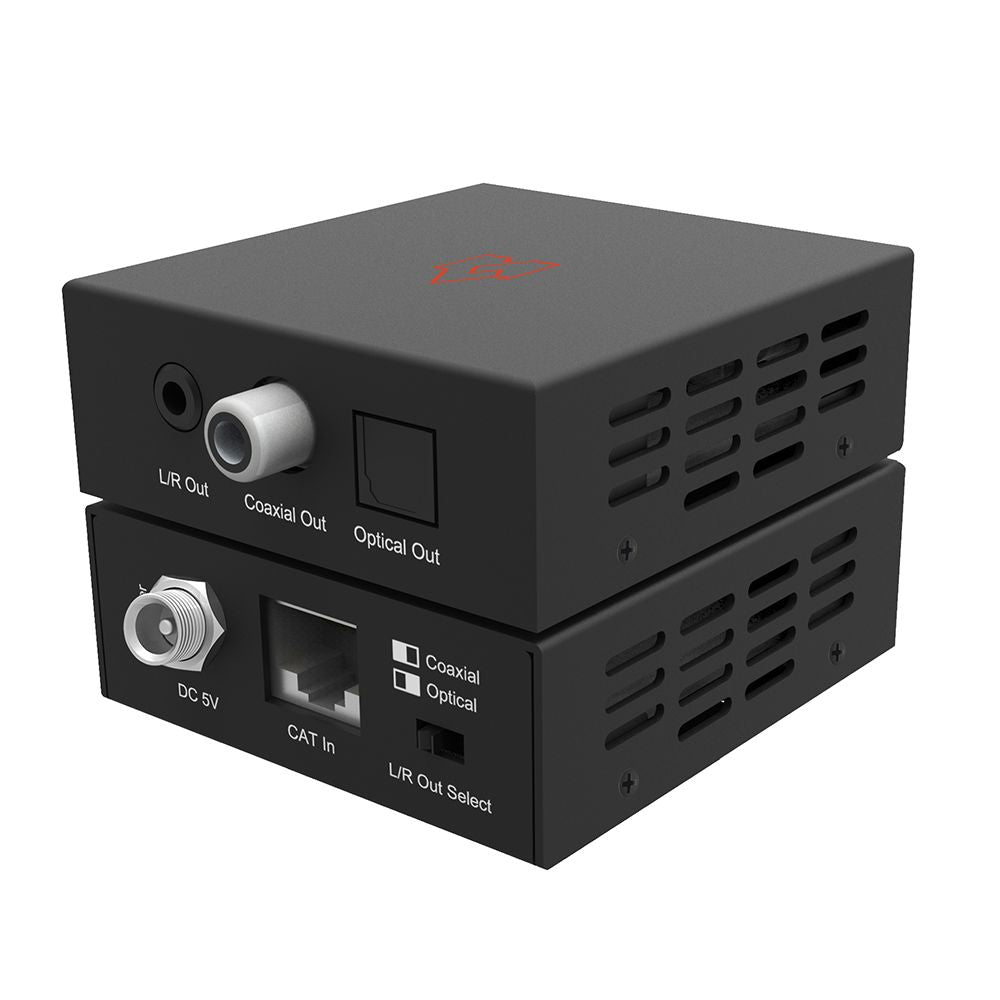

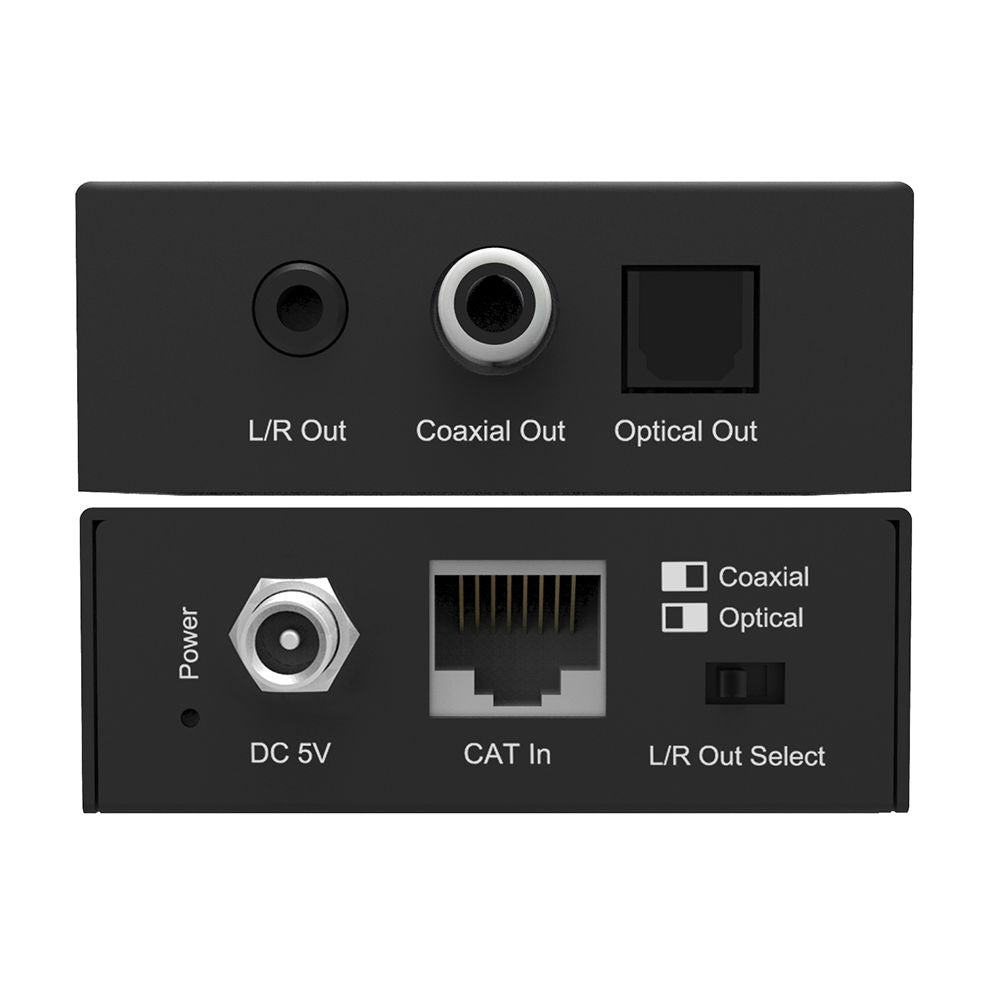

| Receiver | Input port: 1x RJ45 Output ports: 1× Optical (Toslink) 1× Coaxial SPDIF RCA 1x Analog Stereo 3.5mm Audio jack |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Casing-Dimensions | 69mm(W) × 64mm(H) × 24mm(D) |
| Dimensions-with connections | 76mm(W) × 64mm(H) × 28mm(D) |
| Weight | 0.4Kg |
| Power Supply | 5V/1A DC |
| Power Consumption | 3.36 W (max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 - 90% RH (No condensation) |
